R&S
ENV4200
®
200 A Four-Line V-Network
User Manual
1107.2470.12 – 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENV4200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohde & Schwarz ENV4200

Summary of Contents for Rohde & Schwarz ENV4200

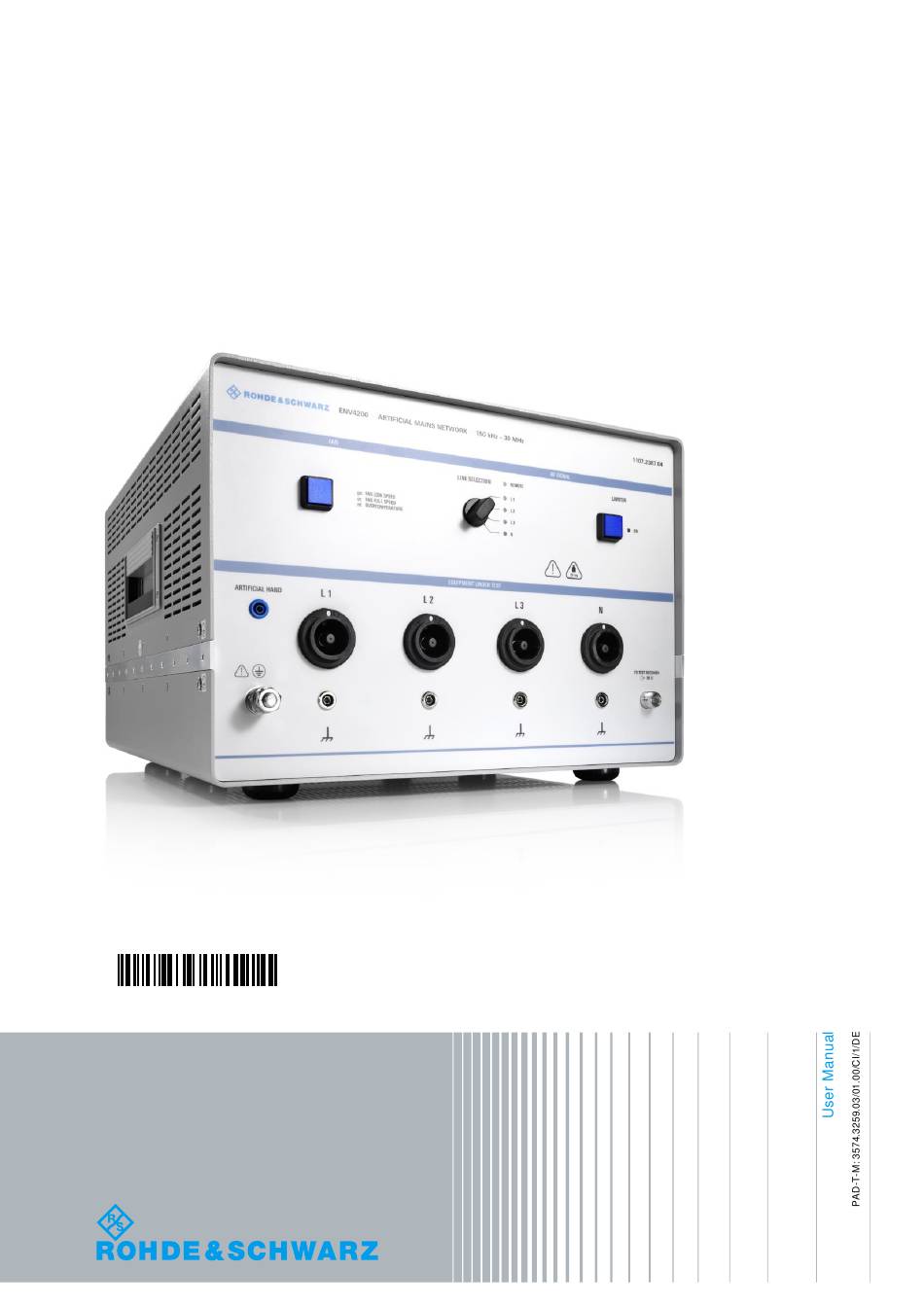

  • Page 1 R&S ENV4200 ® 200 A Four-Line V-Network User Manual 1107.2470.12 – 03...
  • Page 2 Printed in Germany – Subject to change – Data without tolerance limits is not binding. ® R& S is a trademark of Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners. The following abbreviations are used in this manual: ® R& S ENV4200 is abbreviated as R&S ENV4200...
  • Page 3 Basic Safety Instructions Always read through and comply with the following safety instructions! All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety standards of our products up to date and to offer our customers the highest possible degree of safety. Our products and the auxiliary equipment they require are designed, built and tested in accordance with the safety standards that apply in each case.
  • Page 4 Basic Safety Instructions Symbol Meaning Symbol Meaning Caution ! Hot surface Alternating current (AC) Protective conductor terminal Direct/alternating current (DC/AC) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth Earth (Ground) Class II Equipment...
  • Page 5 Basic Safety Instructions Operating states and operating positions The product may be operated only under the operating conditions and in the positions specified by the manufacturer, without the product's ventilation being obstructed. If the manufacturer's specifications are not observed, this can result in electric shock, fire and/or serious personal injury or death. Applicable local or national safety regulations and rules for the prevention of accidents must be observed in all work performed.
  • Page 6 Basic Safety Instructions 6. The product may be operated only from TN/TT supply networks fuse-protected with max. 16 A (higher fuse only after consulting with the Rohde & Schwarz group of companies). 7. Do not insert the plug into sockets that are dusty or dirty. Insert the plug firmly and all the way into the socket provided for this purpose.
  • Page 7 Basic Safety Instructions 2. Before you move or transport the product, read and observe the section titled "Transport". 3. As with all industrially manufactured goods, the use of substances that induce an allergic reaction (allergens) such as nickel cannot be generally excluded. If you develop an allergic reaction (such as a skin rash, frequent sneezing, red eyes or respiratory difficulties) when using a Rohde &...
  • Page 8 Basic Safety Instructions 2. Adjustments, replacement of parts, maintenance and repair may be performed only by electrical experts authorized by Rohde & Schwarz. Only original parts may be used for replacing parts relevant to safety (e.g. power switches, power transformers, fuses). A safety test must always be performed after parts relevant to safety have been replaced (visual inspection, protective conductor test, insulation resistance measurement, leakage current measurement, functional test).
  • Page 9 Basic Safety Instructions 3. If you use the product in a vehicle, it is the sole responsibility of the driver to drive the vehicle safely and properly. The manufacturer assumes no responsibility for accidents or collisions. Never use the product in a moving vehicle if doing so could distract the driver of the vehicle. Adequately secure the product in the vehicle to prevent injuries or other damage in the event of an accident.
  • Page 10 Instrucciones de seguridad elementales Instrucciones de seguridad elementales ¡Es imprescindible leer y cumplir las siguientes instrucciones e informaciones de seguridad! El principio del grupo de empresas Rohde & Schwarz consiste en tener nuestros productos siempre al día con los estándares de seguridad y de ofrecer a nuestros clientes el máximo grado de seguridad. Nuestros productos y todos los equipos adicionales son siempre fabricados y examinados según las normas de seguridad vigentes.
  • Page 11 Instrucciones de seguridad elementales Señalización de seguridad de los productos Las siguientes señales de seguridad se utilizan en los productos para advertir sobre riesgos y peligros. Símbolo Significado Símbolo Significado Aviso: punto de peligro general Tensión de alimentación de PUESTA EN MARCHA / PARADA Observar la documentación del producto Atención en el manejo de dispositivos de peso...
  • Page 12 Instrucciones de seguridad elementales Palabras de señal y su significado En la documentación del producto se utilizan las siguientes palabras de señal con el fin de advertir contra riesgos y peligros. Indica una situación de peligro que, si no se evita, causa lesiones graves o incluso la muerte.
  • Page 13 Instrucciones de seguridad elementales Seguridad eléctrica Si no se siguen (o se siguen de modo insuficiente) las indicaciones del fabricante en cuanto a seguridad eléctrica, pueden producirse choques eléctricos, incendios y/o lesiones graves con posible consecuencia de muerte. 1. Antes de la puesta en marcha del producto se deberá comprobar siempre que la tensión preseleccionada en el producto coincida con la de la red de alimentación eléctrica.
  • Page 14 Instrucciones de seguridad elementales 11. A menos que esté permitido expresamente, no retire nunca la tapa ni componentes de la carcasa mientras el producto esté en servicio. Esto pone a descubierto los cables y componentes eléctricos y puede causar lesiones, fuego o daños en el producto. 12.
  • Page 15 Instrucciones de seguridad elementales 5. Ciertos productos, como p. ej. las instalaciones de radiocomunicación RF, pueden a causa de su función natural, emitir una radiación electromagnética aumentada. Deben tomarse todas las medidas necesarias para la protección de las mujeres embarazadas. También las personas con marcapasos pueden correr peligro a causa de la radiación electromagnética.
  • Page 16 Instrucciones de seguridad elementales Baterías y acumuladores o celdas Si no se siguen (o se siguen de modo insuficiente) las indicaciones en cuanto a las baterías y acumuladores o celdas, pueden producirse explosiones, incendios y/o lesiones graves con posible consecuencia de muerte. El manejo de baterías y acumuladores con electrolitos alcalinos (p. ej. celdas de litio) debe seguir el estándar EN 62133.
  • Page 17 Instrucciones de seguridad elementales Eliminación/protección del medio ambiente 1. Los dispositivos marcados contienen una batería o un acumulador que no se debe desechar con los residuos domésticos sin clasificar, sino que debe ser recogido por separado. La eliminación se debe efectuar exclusivamente a través de un punto de recogida apropiado o del servicio de atención al cliente de Rohde &...
  • Page 18 Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support Centers. A team of highly qualified engineers provides telephone support and will work with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...

  • Page 19: Table Of Contents

    R&S ENV4200 Contents Contents 1 Safety Instructions................5 2 Introduction ..................7 Front View ........................8 2.1.1 Artificial Hand ......................... 8 2.1.2 Ground Sockets ......................8 2.1.3 MC High Current Connector (L1, L2, L3, N) ..............9 2.1.4 Fan ..........................9 2.1.5...
  • Page 20 R&S ENV4200 Contents 6 Remote Operation ................26 7 Preventive Maintenance and Care ........... 28 8 Calibration and Recommended Recalibration Interval ....29 9 Index ....................30 User Manual 1107.2470.12 - 03...

  • Page 21: Safety Instructions

    By design, V-networks exhibit high leakage currents. Moreover, by principle, such a device does not have standard-compliant isolation and there is no fuse in the measuring circuit (the R&S ENV4200 only has a fuse in the auxiliary circuit of the ventilation system). Hence, users must be protected against touching conductive parts that may carry live mains voltage.
  • Page 22 In general, when the R&S ENV4200 is operated, make sure that the air supply is not obstructed from above or below. Since the device has air vents located on the bottom side, it must be placed upon a nonflammable base (e.g.

  • Page 23: Introduction

    Deliver the unsymmetric disturbance voltage generated by the EUT to the test receiver in a defined manner ● Decouple the test circuit from mains disturbances The R&S ENV4200 V-network is built with air-core inductances (50 μH and 250 μH) and conforms to the requirements specified in CISPR 16-1-2. Additional equipment: ●...

  • Page 24: Front View

    R&S ENV4200 Introduction 2.1 Front View This illustration displays the front view of the R&S ENV4200. The individual elements are described in detail in the following sections. Fig. 1 Front view 1 = Connection to artificial hand (ARTIFICIAL HAND) 2 = Ground sockets...

  • Page 25: Mc High Current Connector (L1, L2, L3, N)

    R&S ENV4200 Introduction 2.1.3 MC High Current Connector (L1, L2, L3, N) MC panel connector for connection of the device under test for the interference voltage measurement of single and three-phase devices under test with a star alternating voltage of up 400 V (equivalent to a delta AC voltage of 690 V) and a DC voltage of up to 690 V.

  • Page 26: Rear View

    R&S ENV4200 Introduction 2.2 Rear View This illustration displays the rear view of the R&S ENV4200. The individual elements are described in detail in the following sections. Fig. 2 Rear view 1 = Remote control connection (REMOTE CONTROL) 2 = MC high-current connector (L1, L2, L3, N)

  • Page 27: Auxiliary Voltage Connection (Power For Fan And Remote Control)

    CONTROL) Device plug with line filter for connecting the auxiliary voltage to the power supply for the fan and control logic. The R&S ENV4200 can be set for two different nominal AC supply voltages: 115 V and 230 V. User Manual 1107.2470.12 - 03...

  • Page 28: Block Diagram

    R&S ENV4200 Block Diagram 3 Block Diagram Fig. 3 Block diagram User Manual 1107.2470.12 - 03 E-12...

  • Page 29: Preparing For Use

    Observe the notes in the "Safety instructions" chapter and the protective earth instructions in the "Protective earthing" section! In general, when the R&S ENV4200 is operated, make sure that the air supply is not obstructed from above or below. Since the device has air vents located on the bottom side, it must be placed upon a nonflammable base (e.g.

  • Page 30: Protective Earthing

    ) of the R&S ENV4200, so that even in the case of a faulty device under test, i.e. in the event of a short circuit, the housing voltage is below 4 V.

  • Page 31: Ac Supply

    R&S ENV4200 Preparing for Use 4.4 AC Supply Electric shock due to incorrect power supply. Due to the design, V-networks do not have standards-compliant insulation, do not have a fuse in the measuring circuit and exhibit high leakage currents. In order to protect the user from contact with electrically live instrument parts, the power supply connection of this V-network must be made by experienced electrically skilled personnel.
  • Page 32 R&S ENV4200 Preparing for Use V-networks such as the R&S ENV4200 may also not contain any power fuses. Therefore, the connected mains supply must be sufficiently fused. The maximum permissible continuous current voltage is 200 A. Accordingly, the power supply must be protected at 200 A.

  • Page 33: Connecting The Rf Reference Ground

    R&S ENV4200 Preparing for Use 4.5 Connecting the RF Reference Ground The V-network is connected to the PE protective earth conductor of the power supply through the protective earth conductor terminal. However, this is unsuitable as an RF reference mass for interference voltage measurement. Therefore, the V-network must be connected to an appropriate RF reference ground to obtain reproducible and correct measurement results.

  • Page 34: Avoiding Grounding Loops

    R&S ENV4200 Preparing for Use Make sure that the RF reference ground is not impacted by disturbance voltages (e.g. from an industrial network) when the protective earth conductor is connected to the protective earth. If this is the case, the protective earth must be connected via a PE choke.
  • Page 35 R&S ENV4200 Preparing for Use A sheath current choke for the coaxial cable can be implemented as shown in Fig. The figure illustrates the attenuation of an absorber with the following material: Core material: N30; Al = 5400 nH Dimensions: Toroidal core 58 mm x 40 mm x 17 mm...

  • Page 36: Connecting The Auxiliary Voltage

    V-network corresponds to the local AC supply voltage. The R&S ENV4200 can be set for two different nominal AC supply voltages: 115 V and 230 V. In the 115 V setting, the nominal AC supply voltage range is 100 V to 120 V. In the 230 V setting, the nominal AC supply voltage range is 220 V to 240 V.

  • Page 37: Connecting The Test Receiver

    R&S ENV4200 Preparing for Use Fig. 8 Low-temperature socket, fuse holder and line voltage selector After selection of the voltage range, connect the V-network to the supply voltage using the supplied power cable. If the V-network is correctly connected, one of the four green LEDs for displaying the test path should light up (depending on the position of the LINE SELECTION rotary switch).

  • Page 38: Db Attenuator

    R&S ENV4200 Preparing for Use 4.8 10 dB Attenuator The built-in 10 dB attenuator attenuates the disturbance voltage emitted by the EUT by 10 dB. The attenuator ensures the 50 Ω termination required to meet the impedance tolerance, improves matching with the test receiver and provides a sufficiently high ohmic internal resistance to ensure correct functioning of the pulse limiter.

  • Page 39: Connecting The Eut

    RC combination. The RC combination is a series connection of a 220 pF capacitor C and a 510 Ω resistor R that is built into the R&S ENV4200. It can be connected to the EUT via the 4 mm banana jack on the front (ARTIFICIAL HAND).

  • Page 40: Operating The V-Network

    V-network is fused correctly (see also chapter AC Supply). When the R&S ENV4200 is operated, make sure that the air supply from above and below and from the side is not obstructed. The device may not be operated unsupervised and must be placed on a nonflammable base (e.g.
  • Page 41 R&S ENV4200 Operating the V-Network Fig. 10 Measurement example (hand drill) Position Function Vertical RF reference ground, metal panel at least 2 m x 2 m Item under test AC supply cable Separate connecting line to artificial hand (ARTIFICIAL HAND)

  • Page 42: Remote Operation

    R&S ENV4200 Remote Operation 6 Remote Operation The test path of the V-network to the test receiver can be selected manually using the rotary switch or via remote control. For remote control, the V-network is connected to the test receiver via a connecting cable.
  • Page 43 EMI software, the operating menu for the ESH2-Z5 V-network also applies for control of the R&S ENV4200. For control of the R&S ENV4200 with the R&S ESxI EMI test receivers ESAI; ESBI; ESMI, the EZ-22 connecting cable is used. For control with other test receivers, the EZ-21 connecting cables (3 m or 10 m) are used.

  • Page 44: Preventive Maintenance And Care

    R&S ENV4200 Preventive Maintenance and Care 7 Preventive Maintenance and Care The device does not need any periodic maintenance. Maintenance is essentially restricted to cleaning the exterior of the device. Remove dirt from the housing with a damp cloth. Do not use aggressive cleaning agents. The device should be switched off during cleaning.

  • Page 45: Calibration And Recommended Recalibration Interval

    8 Calibration and Recommended Recalibration Interval The R&S ENV4200 V-network was calibrated by the manufacturer after completion of production and was sent to the Rohde & Schwarz warehouse together with a calibration certificate. Since the V-network is neither electrically nor mechanically...

  • Page 46: Index
