ORA
where inspiration flows

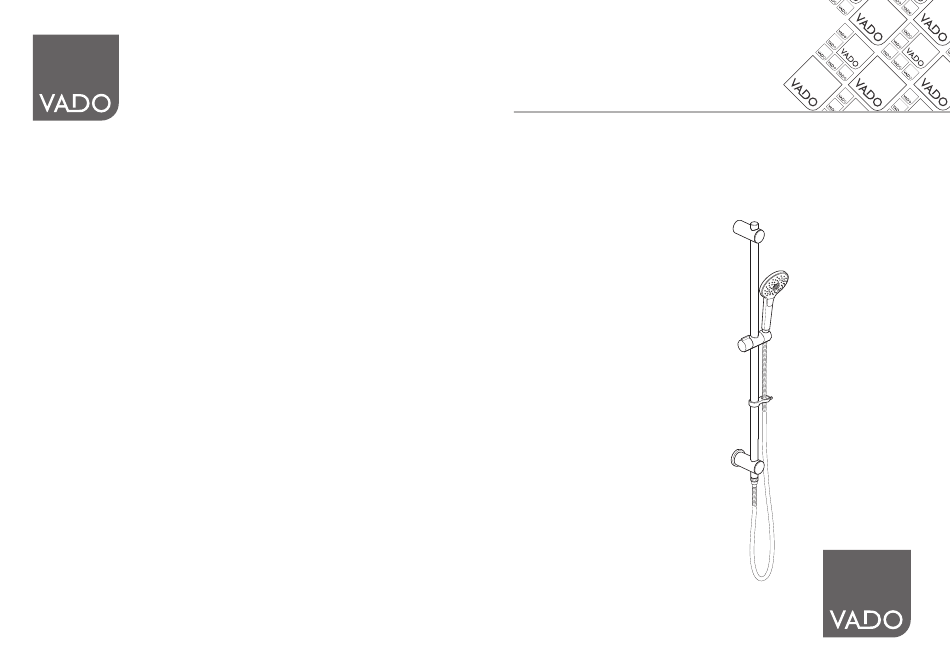

Installation Guide

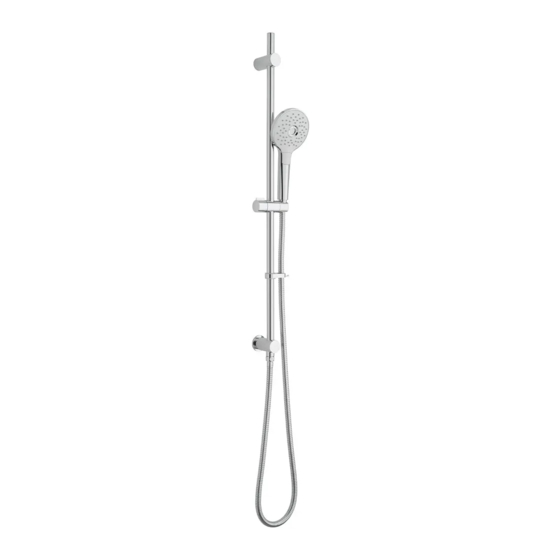

Multi Function Slide Rail Shower Kit with Outlet
ORA-MFSRKWO-RO-CP
This instruction booklet covers model:
ORA-MFSRKWO-RO-CP
Vado
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel 01934 744466
fax 01934 744345
aftersales @ vado.com
www.vado.com
Keep for future reference
Version 1, 1-12-21
Advertisement
Table of Contents
Related Manuals for VADO ORA ORA-MFSRKWO-RO-CP
Summary of Contents for VADO ORA ORA-MFSRKWO-RO-CP
- Page 1 Multi Function Slide Rail Shower Kit with Outlet ORA-MFSRKWO-RO-CP This instruction booklet covers model: ORA-MFSRKWO-RO-CP Vado Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466 fax 01934 744345 aftersales @ vado.com www.vado.com Keep for future reference Version 1, 1-12-21...
-
Page 2: Important - Please Read
Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee. - Page 3 Dimensions Installation - Quick guide Ø21mm 76mm 102mm...
-
Page 4: Installation
Installation Installation Please Note: before installing the rail Using PTFE tape on the thread of the you will need to prepare the wall with a bracket screw into the connector. Connector ½" flush connector (not supplied). at the Bracket Make sure that the outlet is pointing position of the bottom bracket. -
Page 5: Operation
Installation - Shower hose Operation Top bracket only. Washer Push a rubber insert into the hole of the bracket, screw in the grub screw and tighten. Cover Push on the cover. Screw Shower hose Push the cone end of the hose up through the hose retainer. -
Page 6: Cleaning Instructions
VADO Identity and i-tech products have a 5 year guarantee (2 year parts and labour plus 3 years parts only). All other VADO products have a 3 year guarantee (2 years parts and labour plus 1 year parts only) [SEE NOTE 2].
