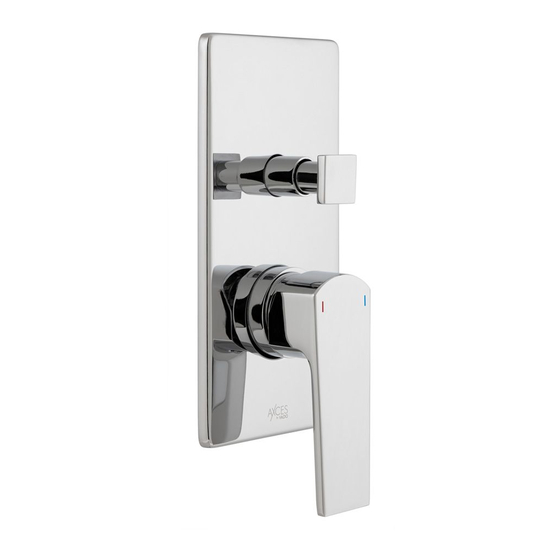

- Page 1 KEEP FOR FUTURE REFERENCE This instruction booklet covers model: AX-EKO-147-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB MANUAL VALVE tel 01934 744466 fax 01934 744345 WITH DIVERTER www.vado.com sales@vado.com Version 1, 1-8-19...
-
Page 2: General Installation
Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee. - Page 3 Dimensions Installation - Quick guide 126mm 1/2” 3/4” 65-80 mm 100mm...
-
Page 4: Installation
Installation - Quick guide Installation Outlet Diverter shroud Cold Outlet Plastic cover Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply. Warning! Please check for any hidden cables and pipes before drilling holes in the wall. -
Page 5: Operation
Installation Operation Plate Grub screw Diverter knob Handle Pulling the mixer lever outwards will Pushing the diverter knob will divert Valve increase the flow of water. the flow of water from primary to the secondary outlet. When the flow of water is turned off the flow will automatically be diverted back to the primary outlet. -
Page 6: Cleaning Instructions
•The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
