EN
takes you further
User Manual

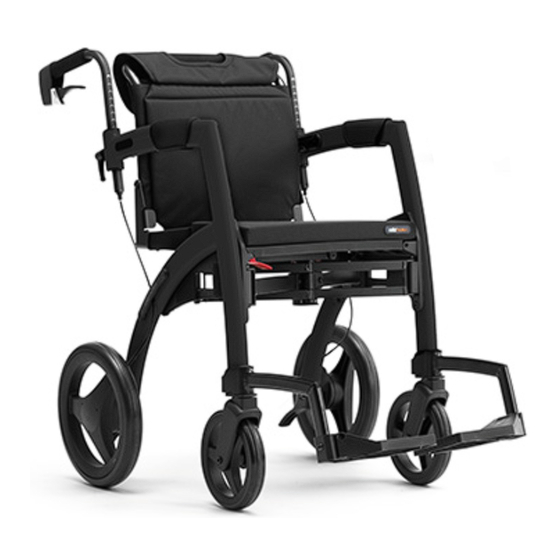

Rollz Motion
Rollator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Motion and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rollz Motion

Summary of Contents for Rollz Motion

  • Page 1 User Manual Rollz Motion Rollator...
  • Page 2 Rollz. FDA (registrationnumber insert) The Rollz Motion is registered with the Food and Drug Administration as a Class I Medical Device and conforms to all international standards, including the...

  • Page 3: Table Of Contents

    Contents Before you begin Important information Safety Warning Using your Rollz Motion Unsuitability of the Rollz Motion Check if your delivery is complete Reuse What fits where? Fold & unfold Adjusting height Operating the brakes Walking with the Rollz Motion...

  • Page 4: Before You Begin

    Before you begin Congratulations on the purchase of your Rollz Motion. Rollz International BV has written this manual so that you can use the Rollz Motion in the safest and most convenient way. We hope you will enjoy the use of your Rollz Motion.

  • Page 5: Warning

    • Keep the Rollz Motion away from open flames and other heat sources, such as electrical heaters or gas heaters. • Do not use the Rollz Motion if any part has been broken or cracked, or if any part is missing.

  • Page 6: Reuse

    • All users must receive and review the entire user manual for safety and operation. • Before passing the Rollz Motion on to a new user, it should be cleaned, disinfected and checked by the dealer for damage to insure safe operation.

  • Page 7: What Fits Where

    What fits where? Figure 1: 01. Handles 02. Frame 03. Foam-filled rear wheels 04. Red seat lock button 05. Swivel front wheels 06. Front Figure 1 Figure 2: 07. Hand brake lever 08. Height adjustment lever 09. Adjusting screws (to tighten brakes) 10.

  • Page 8: Fold & Unfold

    Folding & unfolding in (Fig. 3) Unfolding the Rollz Motion a. Gently pull the sides of the Rollz Motion apart until it stops. b. Push the seat down until it clicks, and locks into place. WARNING: The Rollz is not fully secured and ready for walking until you clearly hear the click and it is locked into place.

  • Page 9: Adjusting Height

    To determine the correct height, stand between the handles of the Rollz Motion and let your arms hang loosely. The handles should be level with your wrists (Fig. 4).

  • Page 10: Walking With The Rollz Motion

    The Rollz Motion is equipped with a parking brake to make sure it will not roll away when you let go, or if you decide to sit down for a rest. b. To lock the brakes, squeeze the hand brake...

  • Page 11: Crossing Curbs Or Obstacles Less Than 6 Inches

    Rollz Motion up and back by the handgrips. The front wheels of the Rollz Motion will now come off the ground. Push the Rollz Motion forward until the front wheels are clear and on top or over of the curb or obstacle (Fig. 10).

  • Page 12: Bag

    Connect the narrow mounting loops to the hooks on the frame (Fig. 10). Using the bag. a. Access the bag from the back of the Rollz Motion. b. The empty bag can be left attached while retracting the frame.

  • Page 13: Maintenance

    Follow the same procedure if you prefer to use the adjusting screw by both the right and left rear wheel. WARNING: Make sure the Rollz Motion is locked in place, but not on the parking break while adjusting the brakes. Using the parking brakes during adjusment leads to incorrect adjustment.

  • Page 14: Cleaning/Disinfection

    Cleaning/ disinfection Frequent cleaning of the Rollz Motion is recommended to keep it in optimal condition. Before passing the Rollz Motion on to a new user, it has to be disinfected. Clean the frame and handgrips using lukewarm water and a cloth. For more resistant stains you can use a mild detergent.

  • Page 15: Replacing Parts

    The Rollz transportchair function is very easy to use. The transportchair bag can be attached to the Rollz Motion before you start. To take a break, all you have to do is fold out the pack, put the footrests in place and turn the handles around.

  • Page 16: What Fits Where

    Maximum sideward slope Max ≈ 15˚ What fits where 21. Guide rails against the seat 22. Red handle 23. Transportchair bag Figure 14 24. Footrest holders 25. Backrest 26. Armrests 27. Guide rails on the frame 28. Footrests 29. Transportchair function / package 30.

  • Page 17: Attaching The Rollz Transportchair Pack

    If the red handle is not going down without exerting force, take the Rollz transportchair pack back out of the guide rails and try again. Do not put any pressure, as this may damage the Rollz Motion. Please contact your supplier if...

  • Page 18: Unfolding The Transportchair Pack

    Unfolding the transportchair pack Attach the transportchair bag to the Rollz Motion before you leave. If you want to take a break, just unfold the transportchair pack and click it into the frame. a. Take the handle of the transportchair pack and pull up the backrest to the maximum setting and towards the front until halfway up the frame (Fig.
  • Page 19 Figure 22 Figure 23 ‘click’ Figure 25 Figure 24 Figure 27 Figure 26...

  • Page 20: Backrest Rollz Transportchair Pack

    After folding away the Rollz transportchair function, you can leave it on the Rollz Motion while you walk. In that case, you will walk behind the Rollz Motion. Disengaging the Rollz transportchair pack a.

  • Page 21: Technical Specifications

    Rollz transportchair pack: 3,7 kg • Dimensions: o Extended -> HxLxW: 86-102 x 63 x 63 cm o Retracted -> HxLxW: 86-102 x 63 x 29 cm o Seat width Rollz transportchair: 420 mm o Seat depth Rollz transportchair: 400 mm...
