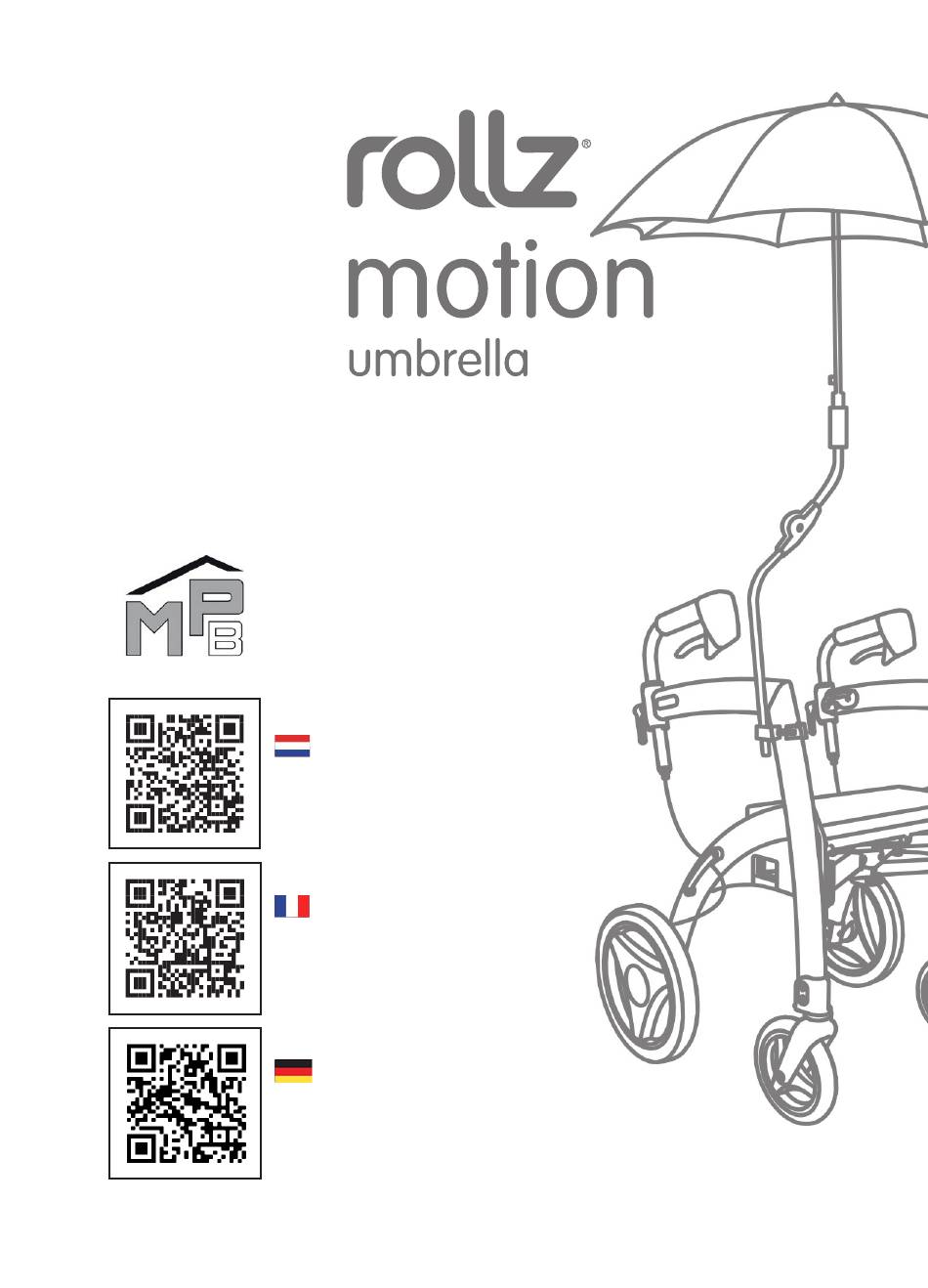

- Page 1 Rollz Motion umbrella Assembly and handling manual Nederlandse handleiding op rollz.com/rollz-handleidingen Manuel en français sur www.rollz.com/fr/manuels-rollz Deutsche Bedienungsanleitung auf rollz.com/de/rollz-bedienungsanleitungen www.rollz.com...
- Page 2 Introduction Thank you and congratulations with the purchase of the Rollz Motion umbrella, an original product of MPB (from Bielefeld,Germany). Before installing the rollator umbrella, read the assembly and handling manual and note all the safety instructions. When...
-
Page 3: Content Of The Package
• the pre-assembled mounting clamp for the Rollz Motion (figure 2); • a screw-thread protection that can be shortened with a scissor; • an Allen key for easy installation of the Rollz Motion umbrella. WARNING Plastic bags can be dangerous! To avoid suffocation, keep the plastic bag of the packaging away from infants and little children. - Page 4 Assembly on the rollator The mounting clamp is pre-assembled for mounting on the right side (when you stand behind the rollator) of your Rollz Motion. If you prefer to mount it on the left side, please read the paragraph ‘mounting on the left side’.
- Page 5 Z screw-thread protection Figure 3: All the necessary parts for fitting the umbrella on the right side of the Rollz Motion. Figure 4: The mounting clamp should be placed on the frame of your Rollz Motion as high as possible.
- Page 6 Assembling goes as follows: • Make sure to not lose the small pre-mounted spacer rings Z placed in-between the clamps of the umbrella part. They should always remain on the long screws. • Shorten the screw-thread protections (figure 2 and 3) with a scissor.
- Page 7 And that is how the mounting clamp umbrella in the mounting can be assembled for the clamp. right side of your Rollz Motion. Assembly on the left side Do you prefer to attach the umbrella to the left side? Then use hole e in the mounting bracket (figure 7).
- Page 8 Handling manual of the rollator umbrella Thanks to the long adjustable tube, the umbrella can be used by people with heights up to 200 cm. When the umbrella is not used, it can remain attached to the frame. The lock button will allow to fold the umbrella, with the tip pointing downwards (figure 6).
- Page 9 INSTRUCTIONS We recommend that you practice opening and closing the umbrella before using it for the first time. • When tightening the ergonomically shaped plastic wing nut you can easily stop the umbrella from twisting and turning. • Do you want to open the umbrella? Then make sure to first remove its cover.
- Page 10 Warnings, tips and safety instructions WARNINGS • The wind can get hold of any umbrella. If it is windy outside then you may not want to open the umbrella. Also, if you have the feeling that the unfolded umbrella has a negative effect on driving with the walker, then you should fold it (as showed at figure 6).
- Page 11 MPB spare parts. • This product can not be used in defective condition. • This manual is part of the Rollz MPB-umbrella and must be kept for future reference. When passing on the product to third parties, please also hand over the manual. Changes to this version might occur.
-
Page 12: Warranty
2 years. Mechanical damage and burn holes are not covered. Contact Rollz International is always open for comments and suggestions, which can be about the handling of the product, the manual or other aspects of our products or services. You can send your tips or experiences at info@rollz.com.
