Summary of Contents for Rollz Motion2

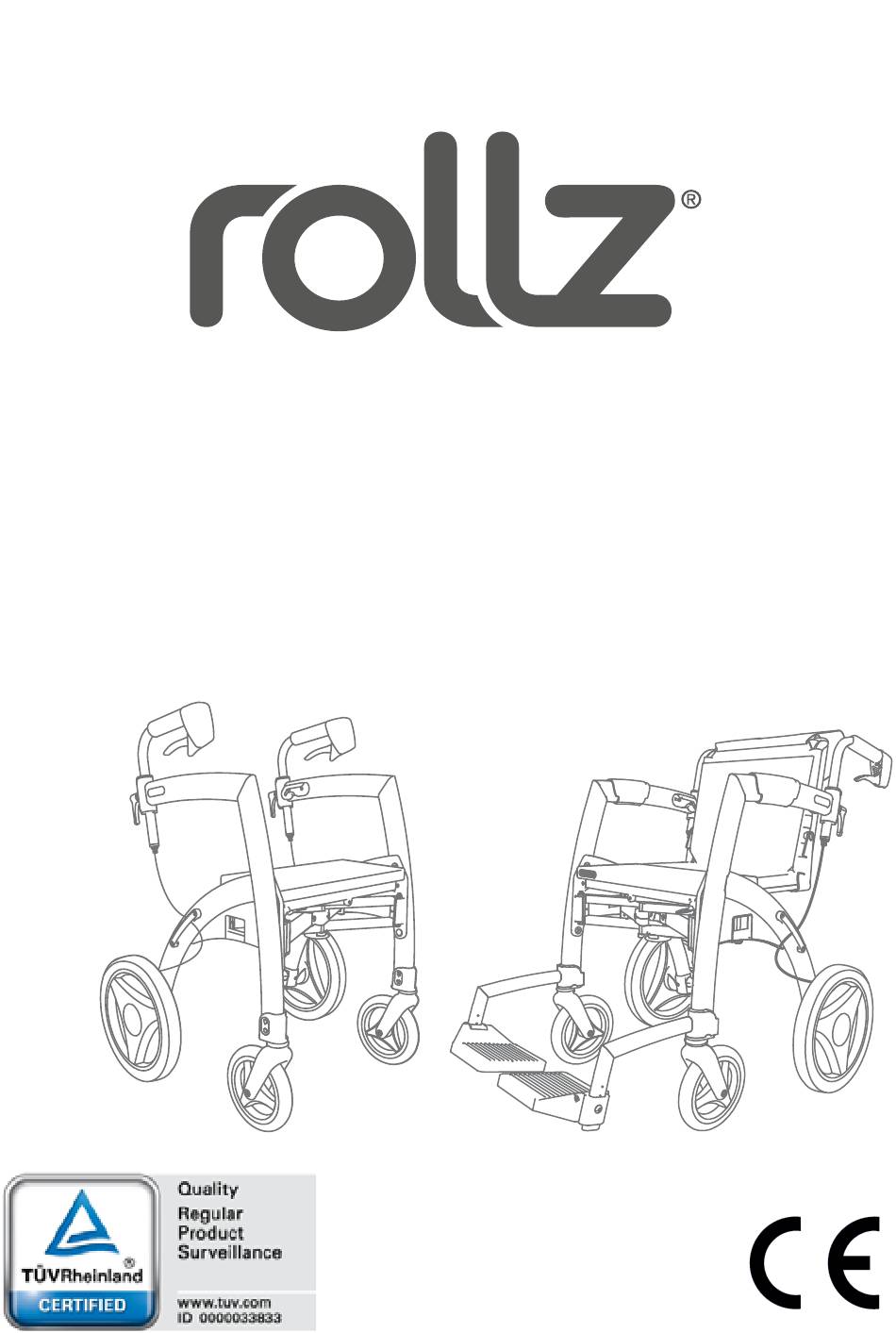

- Page 1 Rollz Motion² Rollz Motion Performance NL - Nederlandse gebruikshandleiding EN - English user manual DE - Deutsche Bedienungsanleitung FR - Manuel d’utilisation en Français...
- Page 2 USER MANUAL The rollator and transport chair in one...
- Page 3 International BV ® This is a translation of the original Dutch user manual of the Rollz Motion in various versions. This user manual is based on the information available at the time it was created. It is possible that the information in this document will be changed.
-
Page 4: Table Of Contents
CONTENTS Before you start Important information Safety instructions Warnings Who may benefit from this product Who should not use the Rollz Motion (contra indication) Reuse Unpacking Check if your delivery is complete Screw in the adjustment handles Attaching the bag... - Page 5 Slopes Specifications Rollz Motion Product specifications Information about the material Accessories Maintenance Cleaning/disinfecting Washing the seat cover Adjusting the brakes Inflating the pneumatic tires (of the Rollz Motion Performance) Replacing of parts Warranty Warranty provisions Register your Rollz Motion Contact...
-
Page 6: Before You Start
• The Rollz Motion is patented, and the brand name and model are protected. • The serial and article numbers of your Rollz Motion can be found on the product sticker, which is located on the seat (under the cushion). -
Page 7: Warnings
The Rollz Motion fits people weighing up to 125 kg / 275 lbs. / 19 st 9 lb, who are 160-190 cm / 5 ft 3” to 6 ft 3” tall. The Rollz Motion Small fits people weighing up to 125 kg / 275 lbs. / 19 st 9 lb, who are 150-185 cm / 4 ft 11” to... -
Page 8: Who Should Not Use The Rollz Motion (Contraindication)
• When lending your Rollz Motion, make sure the user reads the manual before using the product. • Before passing the Rollz Motion on to a new user, it should be cleaned, disin- fected and checked by the dealer for damage to make sure the Rollz Motion can be safely used. -
Page 9: Screw In The Adjustment Handles
• 2 armrests • 1 bag • 1 user manual • 1 pump for the pneumatic tires (with the Rollz Motion Performance) Screw in the adjustment handles Before you can use the rollator, the two adjustment handles must be screwed in. -
Page 10: Attaching The Bag
Press the Velcro on both sides of the bag against the Velcro on the plastic side plates. f. Things can be placed in the bag from the rear of the Rollz Motion. g. The bag can carry up to 10 kg of items. -
Page 11: Recycle Packaging Material
USE AS ROLLATOR The Rollz Motion is delivered already complete for use. You only have to screw in the adjustment handles (see above) and adjust the handles to the correct height. Also attach the bag under the seat (see above). -
Page 12: What Fits Where
Pull away the seat cushion and place it straight on the seat (Figure 9). CAUTION Double check if the seat is locked in. Carefully lift the seat in the middle to make sure that it is properly locked in place. Only then can the Rollz Motion be safely used. - Page 13 Figure 7: Unfold by pulling Figure 8: Push the seat down Figure 9: Pull away the the frame outwards. till you hear a click. cushion and attach it on the seat. Folding goes as follows: a. Before you fold the frame, the bag should be emptied. b.
-
Page 14: Adjusting The Height For Correct Posture
Adjusting the height for correct posture Setting the correct height (Figure 12) is crucial for an optimal use of the Rollz Motion. The height can be adjusted in between the minimum and maximum posi- tions. This way the Rollz Motion can easily be adapted to individual needs. - Page 15 Rotate counterclockwise. b. Slide the handles to the correct height (Figure 15). c. To determine the correct height, stand between the Rollz Motion handles with your arms hanging near the body. The handles should be at the height of your wrists (Figure 12).
-
Page 16: Walking With The Rollz Motion
Adjusting the height for correct posture. b. While walking, stand in between the handles and, if necessary, lean on the Rollz Motion. This way you walk as close as possible to the walker, which offers the most support (Figure 18) . -
Page 17: Operating The Brakes
The brakes can be locked when you park the Rollz Motion so that it does not roll away. Test the braking power regularly, especially before the first use, to experience how they work. -
Page 18: Resting On The Rollz Motion
You could fall while doing this, with all the associated risks. Using the bag a. You can reach into the bag under the seat from the rear of the Rollz Motion. b. The bag can carry a maximum weight of 10 kg. -
Page 19: Going Over Thresholds And Curbs
To easily get on pavements up to a height of around 15 cm, or over thresholds, the Rollz Motion has two curb assistants. a. Place the Rollz Motion rollator with the front wheels against the threshold or curb. b. Push the left or right curb assistant (Figure 24) down with your left or right foot, while tilting the Rollz Motion towards you with your hands. -
Page 20: From Rollator To Transport Chair
However, the user can sit comfortably in it. CAUTION The Rollz Motion transport chair can carry a maximum weight of 125 kg or 275 lbs. This transport chair is intended to be used by only one person at a time. -
Page 21: Attaching The Rollz Transport Chair Package
Attaching the Rollz transport chair package a. Hold the Rollz transport chair package with the side of the bag towards you (Figure 30). b. Lift the red handle with your other hand so that the locking bolts will be tied in. -
Page 22: Pulling Up The Rollz Transport Chair Package
Locking the transport chair package. attached. Pulling up the Rollz transport chair package a. Attach the transport chair package to the Rollz Motion before you go out (Figure 31). b. To convert the walker to a transport chair, the transport chair package needs to be pulled up. - Page 23 Figure 33: Pull the backrest upwards and Figure 34: Pull the backrest further up. forwards. Figure 35: Click the backrest into the guide rails. Figure 36: Loosen the adjustment handles. Figure 37: Turn handles. Figure 38: Tighten the adjustment handles.
-
Page 24: Setting The Footrests (Once Only)
Take the footrests out of the transport chair bag and place them at the front of the Rollz Motion, into the footrest holders on the frame. Slide them down from the top of the footrest holders (Figure 39). Do not apply force if the footrests do not slide smoothly over the footrest holders. -
Page 25: Setting The Backrest (Once Only)
It is only necessary to do this for the first use - or if the user has under- gone major changes in weight. a. Turn the Rollz Motion into a transport chair (Figure 40) and remove the footrests from the transport chair package bag. - Page 26 Figure 44: Four adjustable adjustment Figure 43: Clear adjustment straps. straps. Figure 45: Loosen for more seat depth. Figure 47: Before and after adjusting Figure 46: Lower two back the back straps, on the right you see straps loosened. the correct sitting position.
-
Page 27: Pulling Down The Transport Chair Package
Do you want to turn the transport chair into a rollator? a. Remove the footrests. Slide the footrests up until released from the footrest holders. Put them back into the bag of the Rollz transport chair package, mirrored to each other (Figure 48). -
Page 28: Using As Transport Chair
USING AS TRANSPORT CHAIR Matching your pace Whoever sits in the transport chair and is being pushed for the first time, will need time to get used to it. Same goes for the pusher. It is best to constantly coordinate with the person in the transport chair about the pace and the route to be taken. -
Page 29: Going Off The Pavement Safely
b. Squeeze the brakes, take a small step back and carefully tilt the wheelchair towards you. This way the front wheels lift off the ground. It goes easier when the pusher presses the curb assistant down with one foot. c. Release the brakes. Drive the transport chair on the rear wheels forward, until the front wheels are above the pavement. -
Page 30: Slopes
WARNING If the pusher suddenly moves forward with the transport chair from a curb or ledge that is higher than about 3 cm, the person in the transport chair can be launched forward and even fall out. This can also happen if the pusher hits a ridge hard. Therefore, prevent yourself from driving or crashing into an obstruction. -
Page 31: Specifications Rollz Motion
SPECIFICATIONS ROLLZ MOTION Product specifications (Figure 53 - 54) PRODUCT MEASUREMENTS Rollz Motion Rollz Motion Rollz Motion Small Performance Weight rollator 11,6 kg 11,6 kg 11,4 kg Weight transport 3,4 kg 3,4 kg 3,4 kg chair package Rollator unfolded 87-99 x 63 x 67 cm 83-95 ×... - Page 32 Figure 53: This is how compact the folded Rollz Motion is. min: 42 cm max: 48 cm Figure 54: Ergonomic dimensions of the Rollz Motion transport chair.
-
Page 33: Information About The Material
Footrests: aluminum frame with plastic footrests. ACCESSORIES The functionality of the Rollz Motion can be expanded by using accessories such as a travel cover, 3-in-1 transport chair package holder (cane and shopping bag holder integrated), umbrella, belt, cup holder and flexible back support. Use only original or Rollz International BV approved accessories. -
Page 34: Washing The Seat Cover
The wheels can be cleaned using lukewarm water and a brush with plastic bristles. Do not use a wire brush because it can damage your Rollz Motion. e. Before passing the Rollz Motion on to a new user, it must be disinfected. NOTE Do not use alcohol-based disinfectant. -
Page 35: Adjusting The Brakes
Adjusting the brakes By using the Rollz Motion, the brakes can wear out. As a result, it may be necessary to readjust the brakes. When the brakes are correctly adjusted, you prevent problems and can make optimal use of them.Check the brakes regularly, preferably before each use. - Page 36 The Rollz Motion should not be on the parking brakes while adjusting the brakes. b. Stay at the rear of the Rollz Motion when adjusting the brakes. Loosen the locking ring at the bottom of the brake cable (pull the cable up to make it easier).
-
Page 37: Inflating The Pneumatic Tires (Of The Rollz Motion Performance)
Inflating the pneumatic tires (of the Rollz Motion Performance) The Rollz Motion has solid rubber tires made of PU and EVA foam, while the Rollz Motion Performance has four pneumatic tires.These pneumatic tires need to be provided with extra air regularly for optimal usage (Figure 59). The inner tubes are equipped with Schrader valves, also known as car valves. -
Page 38: Replacing Of Parts
6. If necessary, Rollz takes care of the transport of the product from the supplier to Rollz and vice versa for its own costs and risk, but only if the repair is covered by the warranty. -
Page 39: Register Your Rollz Motion
Register you Rollz Motion Please register your product with Rollz International by filling out the online form on www.rollz.com. Make sure to enter the serial number of the Rollz Motion. - Page 40 rollzint RollzInternational rollzint RollzInternational Version 2020.01...
