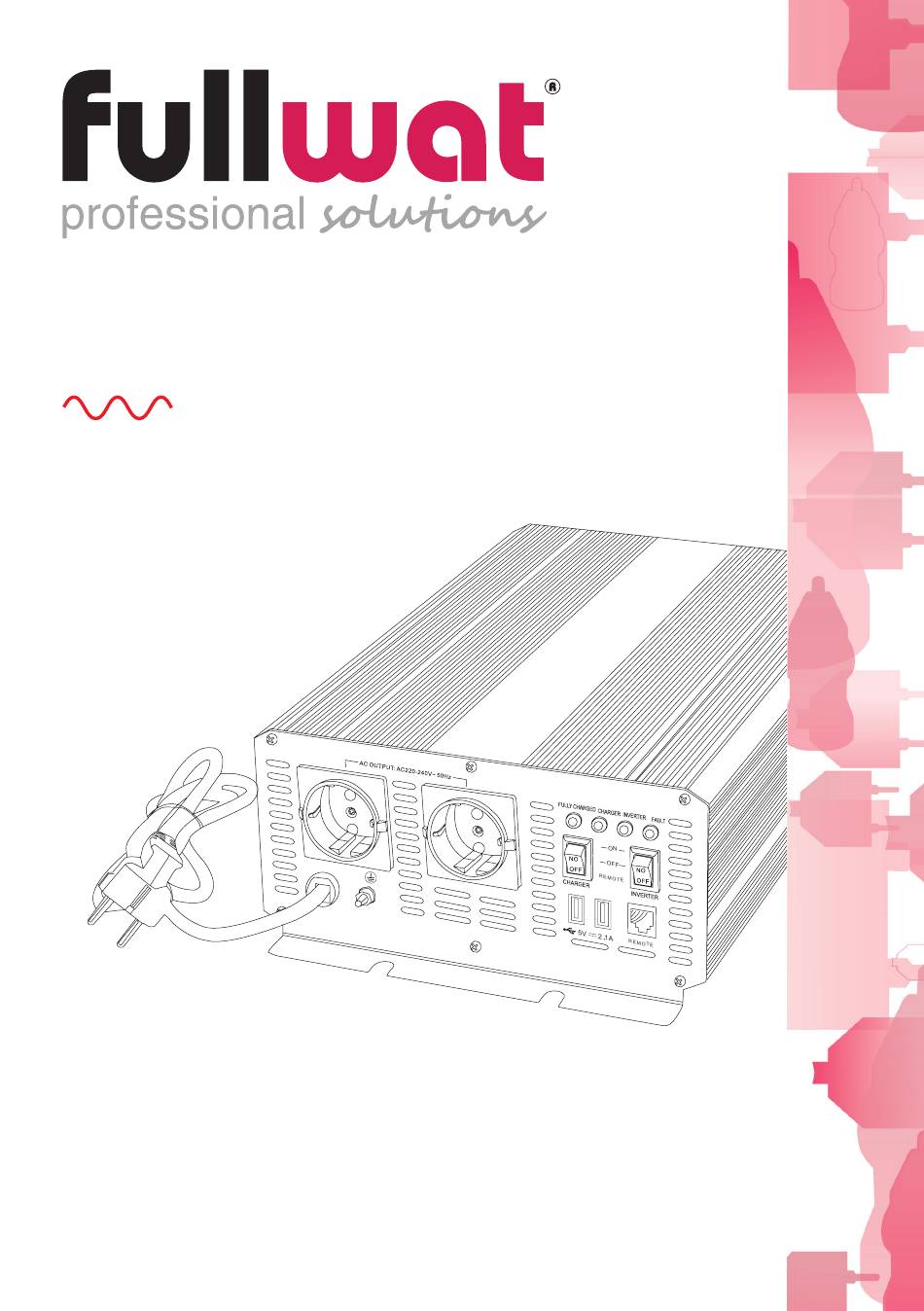

- Page 1 PDA-SS-C series PDA-600SS-C / PDA-1000SS-C / PDA-1500SS-C / PDA-2000SS-C pure sine wave IN P U T : A C 1 9 0 -2 6 0 V ~ Power DC-AC Inverter COMBI BYPASS function: VAC output + battery charger included...
-
Page 2: Operation Environment
1. INTRODUCTION Thank you for choosing our series Pure sine wave inverter with charger . It is a perfect combination with a pure sine wave inverter, bypass transfer part and 3 stage battery charger. When the public power failure, it converts the battery’s DC to AC to support the electrical appliances’... - Page 3 PDA-1000SS-C PDA-2000SS-C 4.1 Product dimension DC Cable with ring 7 6+ 6- DC Fuse AC Fuse INPU T: AC1 90-2 60V~ User Manual Indication AC Outlet Cooling Fan AC input cable Inverter ON/OFF/REMOTE Switch DC cable with ring Full power LED Remote control port DC Fuse Charging LED...
-
Page 4: Installation
5. AVS PROTECTION FUNCTION • Lower voltage protection: When the public power is lower than 70V/170VAC, the inverter shall be shut down to protect it. Once voltage increases to normal range. The inverter restarts automatically. • Hlgh voltage protection: When the public power is too high, the inverter shut down and auto. restart once the voltage is down to the normal range. -
Page 5: Protection Function
7. PROTECTION FUNCTION lt is designed with a universal protection circuit that provide added safety features not only for your AC appliances, batteries but also for itself. The inverter will shut down when the load has electric Earth Fault Protection leakage. -
Page 6: Operating Tips
8. OPERATING TIPS 8.1 Rated Versus Actual Current Draw of Equipment Most electrical tools, appliances and audio/ video equipments have labels that indicate the power consumption in amps or watts. Be sure that the power consumption of the item you wish to operate is rated within inverter wattage or less. -
Page 7: Troubleshooting
9. TROUBLESHOOTING 9.1 When public power failure and lnverter switch ON, the problem happened in the inverter mode Trouble Possible cause Suggested remedy Battery over discharged, low battery Change the battery or charging for it protection Red LED lit, Over temperature protection Remove or reduce load, wait for inverter to cool No AC green LED not lit... - Page 8 11. Disposal Old electrical appliances are recyclable. Do not dispose them in the domestic waste! Separately deliver these in a valuable material collection point. Dispose the packing material environmental friendly. Please give cardboard and paper to te waste paper, foils to a valuable material collection point. 12.
- Page 9 Agente importador A48.139.786 UKAI S.A. Ribera de Elorrieta, 7C 48015 - Bilbao - SPAIN Designed in EU - Made in P RC...
