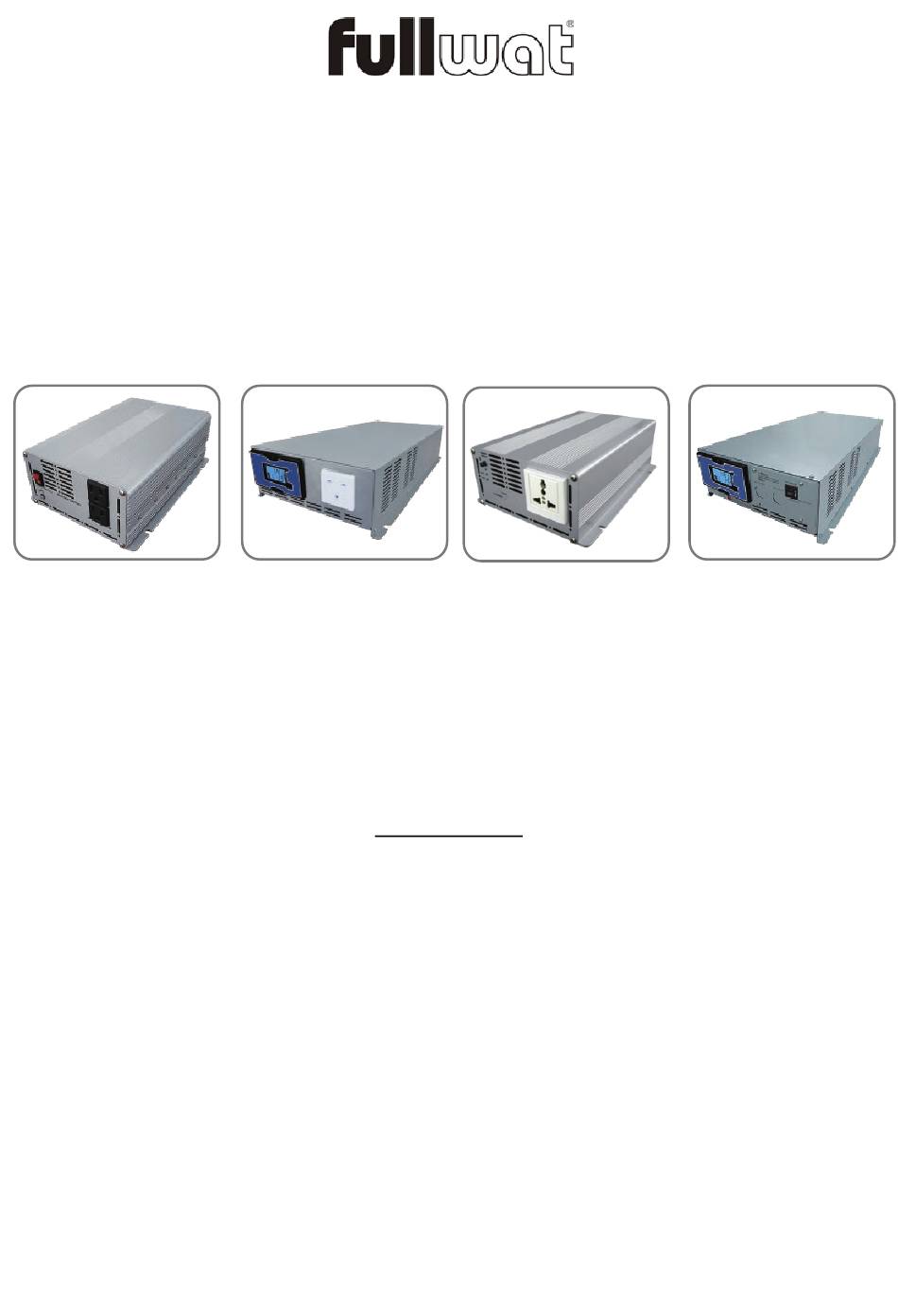

PDA300S / PDA600S / PDA1200S
PDA1800S / PDA2500S / PDA3000S
PDA1000 / PDA1800 / PDA3000
DC to AC power inverters
User's manual
Smart Start function
1. Maximizing startup performance
2. Dynamic DC Bus voltage regulation
3. Soft-start technology improves reliability
List of contents
Advertisement
Table of Contents
Related Manuals for Fullwat PDA300S
Summary of Contents for Fullwat PDA300S
-
Page 1: Table Of Contents
PDA300S / PDA600S / PDA1200S PDA1800S / PDA2500S / PDA3000S PDA1000 / PDA1800 / PDA3000 DC to AC power inverters User’s manual Smart Start function 1. Maximizing startup performance 2. Dynamic DC Bus voltage regulation 3. Soft-start technology improves reliability List of contents Important safety instructions .................1... -
Page 2: Important Safety Instructions
1. Important safety instructions WARNING Before you install and use your inverter, be sure to read and save these safety instructions General safety precautions Do not expose the inverter to rain, snow, spray, bilge or dust. To reduce risk of hazards, do not cover or obstruct the ventilation openings. -
Page 3: Inverter Operation
The ON/OFF switch turns the control circuit in the power inverter on and off. The inverter input voltage ranges are shown as below: PDA600S / PDA1200S / PDA1800S / PDA2500S / PDA3000S PDA300S PDA1000 / PDA1800 / PDA3000 9.5V to 16.0V for 12V models;... -
Page 4: Terminal Installation Diagram
4. Terminal installation diagram. Parts: Cable terminals Spring washer Screw Insulator Step: Screw the terminals tightly To cover the terminals by the insulator. Modified sine wave models Pure sine wave & PDA1000 Connect to battery or other power source. “+” (red) is positive and “-“ (black) is negative. Reverse polarity connection will blow internal fuse and may damage inverter permanently Damage caused by reversed polarity is not covered by the warranty. -
Page 5: Modified Sine Wave Models
5. Modified sine wave models Model: PDA1000 Compact design External hetasink Re-start when input volt is returned to normal range. Front view Case ON/OFF SWITCH AC receptacle Rear view Ventilation window Do not obstruct, allow at least 15 cm (6 inches) for airflow. - Page 6 Models: PDA1800 / PDA3000 Internal heatsink. 2-stage thermal control fan(s) – 8cm fan. Remote control function (detachable). Front LCD screen shows you the input volt, output watts, battery capacity, etc... and any failure situation. High peak power. Re-start function. Complete protection design Available for various appliances, including resistant load, traditional lighting load, computer load, etc.
-
Page 7: Pure Sine Wave Models
6. Pure sine wave models Models PDA300S / PDA600S / PDA1200S / PDA1800S / PDA2500S / PDA3000S Pure sine wave output (<2% THD) Input and output fully isolation design. High efficiency >87% Internal and external heatsink. Multi-stage thermal control fan. - Page 8 Model PDA1800S, PDA2500S & PDA3000S Front view No bypass function model With bypass function model 1. Detachable Remote Control LCD 5. AC Output hard wiring 2. DIP Switch Function ( Note 1 ) 6. AC Input hard wiring ( for bypass model only ) 3.
- Page 9 Accessories Detachable LCD remote control plate. FRONT VIEW Hard Wiring (Only by-pass models) BREAKER AC OUTPUT AC INTPUT (Please press to restart if open circuit) ELECTRICAL SHOCK HAZARD. RISQUE DE CHOC ÉLECTRIQUE. Mounting Bracket – optional accessory Bracket hast two parts: rear and frame. FRONT VIEW Rear Frame...
-
Page 10: Remote Control - Liquid Crystal Display
7. Remote control - Liquid crystal display Graph Fault Input DC volt Fault Power Saving Mode (<20W Load) Output waveform Battery Capacity ON / OFF Load watts Display Content : Fault Fault ON / OFF ON / OFF 1. Inverter Mode: Standby Display. 2. -
Page 11: Modified Sine Wave Specifications
8. Modified sine wave specifications PDA1000-12N PDA1800-12N PDA3000-12N Model No. PDA1000-24N PDA1800-24N PDA3000-24N Max. surge power 2000W 3600W 6000W Continuous power 1000W 1800W 3000W AC output voltage 230VAC Regulation ±8% ±5% 10 ~ 16V (12V) DC input voltage 20 ~ 32V (24V) Output wave form Modified sine wave Frequency... -
Page 12: Pure Sine Wave Specifications
9. Pure sine wave specifications PDA300S-12N PDA600S-12N PDA1200S-12N Model No. PDA300S-24N PDA600S-24N PDA1200S-24N PDA300S-48N PDA600S-48N PDA1200S-48N Max. surge power 600W 1200W 2400W Continuous power 300W 600W 1200W AC output voltage 230VAC Regulation ±5% 9.5 ~ 16V (12V) 10 ~ 16V (12V) - Page 13 PDA1800S-12N PDA2500S-12N PDA3000S-12N Model No. PDA1800S-24N PDA2500S-24N PDA3000S-24N PDA1800S-48N PDA2500S-48N PDA3000S-48N Max. surge power 3600W 5000W 6000W Continuous power 1800W 2500W 3000W AC output voltage 230VAC Regulation ±5% Frequency 50Hz / 60Hz ± 3% Output wave form Pure sine wave DC input voltage 10 ~ 16V (12V) // 20 ~ 32V (24V) // 40 ~ 61V (48V) 180A (12V)
- Page 14 PDA1800S-12N PDA2500S-12N PDA3000S-12N Model No. PDA1800S-24N PDA2500S-24N PDA3000S-24N PDA1800S-48N PDA2500S-48N PDA3000S-48N EMI conduction & radiation Compliance to EN55022 class B, 72/245/CEE, 95/45/CE EMS immunity Compliance to EN61000-4-2, EN61000-4-3 Compliance to EN60950 Dimensions (L *W * H) in mm 570*274*105 570*274*105 570*274*105 Net weight (kg) Gross weight (kg) with cable...
-
Page 15: Inverter Troubleshooting Guide
10. Inverter troubleshooting guide Problem Possible cause Solution Using a voltmeter which can't Low output voltage properly read the RMS voltage Use a true RMS reading meter well Check the batteries and the Poor battery condition vehicle alternator condition Low input voltage and watts Overload Reduce load indicator in the red zone... -
Page 16: Warranty
11. Warranty We offer 12 months warranty from the date of purchase, as stated in invoice or purchasing proof, and will repair or replace any defective power invertir. This limited warranty is void if the unit is abused, modified, installed improperly, if the housing has been removed, if the serial number is missing, or if the original identification markings have been defaced, altered, or removed The supplier is not liable for any incidental, consequential or other damages arising from the...
