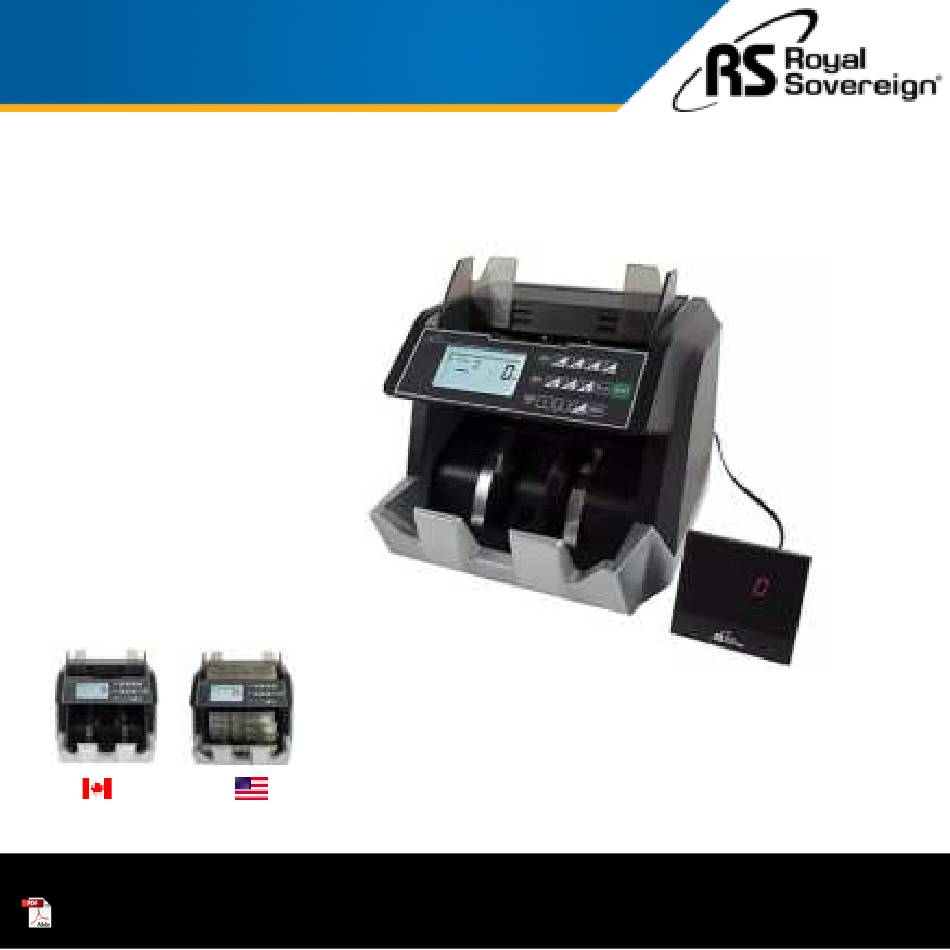

- Page 1 Owner's Manual Professional Bill Counter With Value Counting RBC-EG450-CA Dual Currency – For use with RS International Canada Inc. Please read and retain these instructions.
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Box Contents Product View Quick Start Guide Control Panel and Operation Maintenance of the Machine Troubleshooting Error Code Display and Solutions Specifications Warranty French... -
Page 3: Safety Instructions
In case of a water spill, stop operating the unit immediately. Switch the unit off, disconnect the power cord and contact Royal Sovereign Customer Service for assistance Plug the power cord into a grounded outlet only. If the unit is not in use for a long period of time, please keep unit switched off and unplugged. -
Page 4: Box Contents

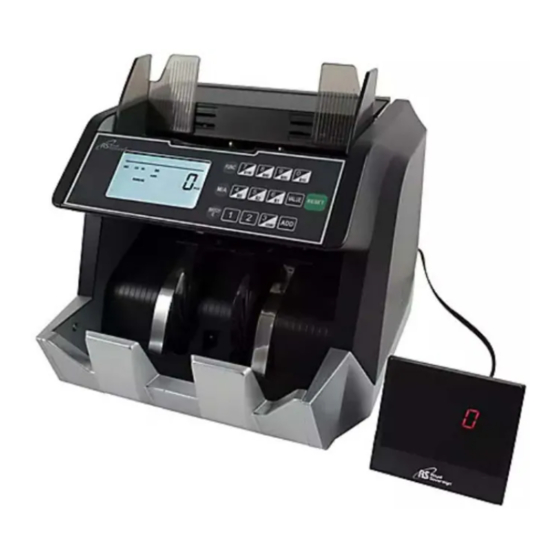

BOX CONTENTS Bill Counter Power Cord Owners Manual External Display PRODUCT VIEW Adjusting Screw Hopper ON/OFF Switch LCD Screen Power Cord Input Stacker RJ11 Port Carrying Handle Control Panel External Display... -
Page 5: Quick Start Guide
QUICK START GUIDE Plug the power cable into the back of the unit (10) and the other end into an electrical outlet. Connect the external display cord to the RJ11 Port (8 ) Turn the power switch to the “ON” position (9). The machine will go through an automatic self-diagnostics test to ensure accurate bill counting. - Page 6 FUNC BUTTON The unit is defaulted to count Canadian Currency with Counterfeit Detection ON. This is the default setting when turning the unit ON DEFAULT SETTING: Canada Currency - This is the default setting with Canadian counterfeit detection US Currency - Press the FUNC once to set to US Currency. In US currency setting, the control panel will display USD.
- Page 7 BATCH/C BUTON: The machine is preset to common counting mode. To count bills in batches such as in quantities of 20, press “BATCH”. The word “BATCH” will appear on the control panel screen Batching is preset to 100 bills. When in BATCH/C mode, this button operates as a backspace. To change the batch amount, use the keypad to enter a batch number between 1 and 999 followed by pressing “RESET”...
- Page 8 VALUE BUTTON (Value Counting) This Royal Sovereign bill counter is equipped with Value Counting to provide a grand total of the denominations counted and total quantity counted. Value Counting works both in Canadian and US banknote denomination setting. Each denomination must be counted separately.
- Page 9 COUNTERFEIT DETECTION FUNCTION Canadian Setting, UV (Ultra-Violet), Infrared, and DD (Dimensional Detection) are used to detect counterfeit or suspect banknotes. In the event the bill counter discovers a counterfeit or suspect banknote it will stop and beep. The suspicious banknote will be positioned to the top of the banknote stacker. This banknote has not been counted.
-
Page 10: Maintenance Of The Machine
If necessary, the glass surfaces of the detectors may be wiped with a soft cloth damped with alcohol. To get the best results out of your bill counter, Royal Sovereign recommends using Royal Sovereign Cleaning Cards (RBC-CLN) to remove dirt, dust, oils, and other contaminates from bill counters. -
Page 11: Error Code Display And Solutions
ERROR CODE DISPLAY AND SOLUTIONS The display may show some error codes when counting, which means there are some problems with the machine. Refer to the chart below to solve the errors. Error Code Reason Solution E01/E02 Left/Right Counting Sensor Clean dust off sensor/replace sensor Clean dust off sensor/faster sensor /replace Code disc sensor... -
Page 12: Specifications
SPECIFICATIONS Model RBC-ED450-CA Application Medium/Commercial Loading Style Frontload Counting Option Canada Banknote USA Banknote Counterfeit Detection Canada Banknote USA Banknote Speed 1400 Display Type Value Counting Hopper Capacity Auto Start/Stop Cumulative Add Mode Batch Mode External Display Included Power Supply 110/60Hz 10.1"... -
Page 13: Warranty
ONE YEAR LIMITED WARRANTY Royal Sovereign International, Inc. (and its affiliated companies) warranties this product to be free from defects in material and workmanship for a period of one (1) year. This warranty is extended to the original purchaser only.
