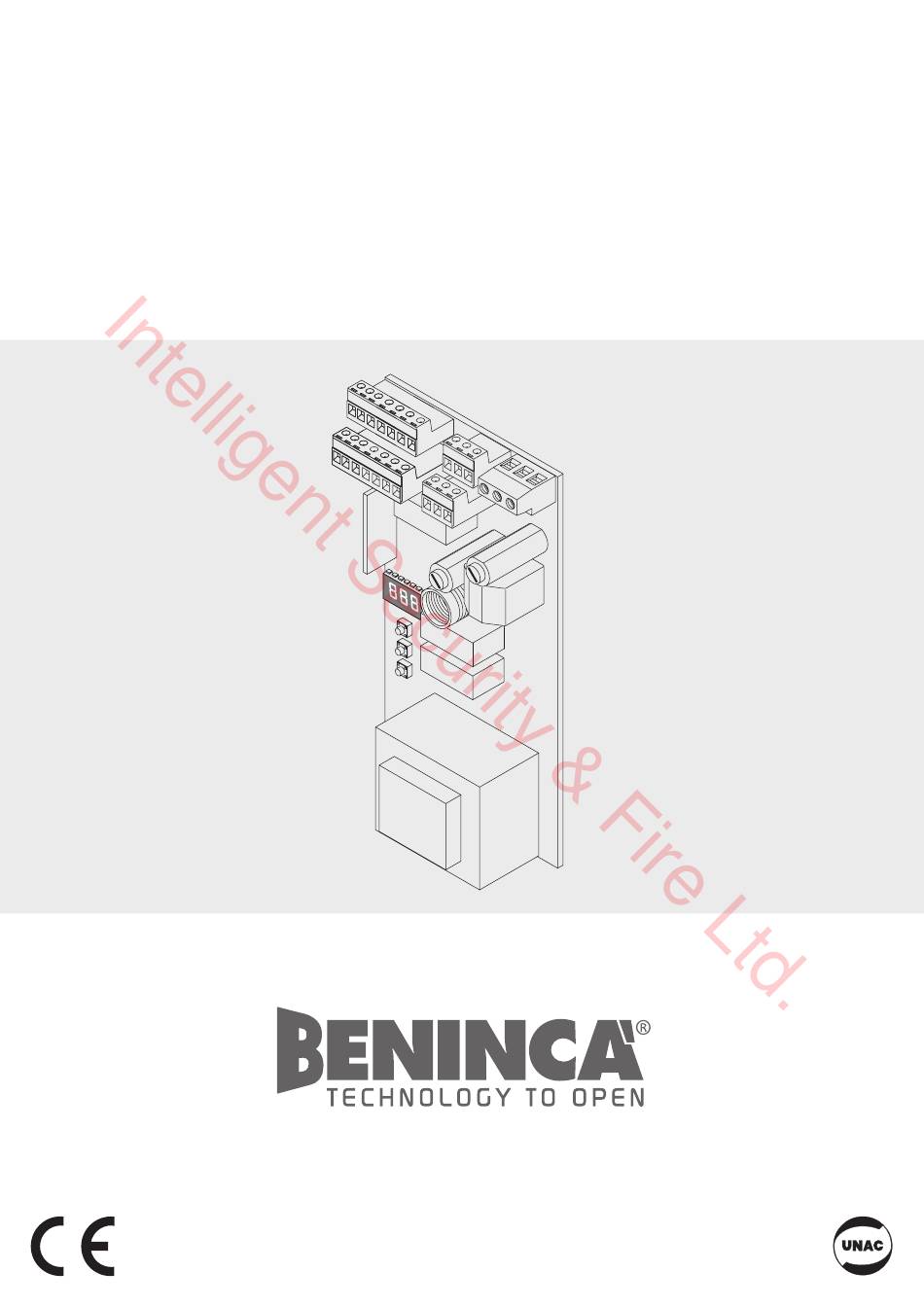

- Page 1 L8542518 06/2012 rev 3 CP.ZED230-E UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
-
Page 2: Table Of Contents
230Vac 50Hz G ND LAMP. 230VAC ENCODER 230V:F5A 115V:F10A CM CM 315mA Light Service Light Service STOP PHOT OPEN CLOSE P.P. 24Vac 1A max SHIELD... - Page 3 AUX:0 AUX:1 AUX:2 24Vac COM NC 24Vac 3W max N.O. II° CH RADIO AUX:3 AUX:4 Service Light 230Vac Relè PHOTO TEST 24Vac LAMP 24 Vdc LAMP SERVICE LIGHT...
- Page 4 Via Capitello, 45 - 36066 Sandrigo (VI) - Italy Declares that the product: Control unit CP.ZED230-E is compliant with the conditions of the following EC Directives: • DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of December 15 2004 regarding...
-
Page 5: Com
Built-in radio receiver IMPORTANT: Should two motors be used, connect the limit switches of one single motor to the control unit. The connection between CP.ZED230-E and the ZED.SC card is shown in Fig.3. FUSES Output protection fuse of accessories and signals... -
Page 6: Aux
The logic menu allows you to activate or deactivate a function, in the same way as setting a dip-switch. Other special functions follow the parameters and logic menus and may vary depending on the type of control unit or the software release. - Page 7 LOGIC (LOG) ON-OFF- MENU FUNCTION MEMO (Default) The automatic closure is enabled or disabled On: enabled automatic closure (OFF) Off: disabled automatic closure The multi-flat function is enabled or disabled. On: enabled multi-flat function. The P.P. (Step-by-step) impulse or the impulse of the tran- (OFF) smitter have no effect in the opening phase.
- Page 8 RADIO (RAD) MENU FUNZIONE By selecting this function, the receiver awaits (Push) for a transmitter code to be assigned to the step-by-step fun- ction. Press the transmitter key to be assigned to this function. If the code is valid, it is stored in memory and OK appears. If the code is not valid, the wording Err is displayed.
-
Page 9: Ant
INSTALLATION The CP.ZED230E control unit can be used with various versions of the ZED gear motor: ZED with 2 limit switches (opening an closing). ZED with 1 limit switch (usually used as opening limit switch or auxiliary operations) ZED without limit switch If one or more limit switch are missing, the operation stop is controlled by the control unit after memorizing the opening/closing posi- tions. - Page 10 DIAGNOSTICS One segment of the display is linked to each input. In the event of failure it switches on according to the following scheme. P.P. OPEN CLOSE N.C. inputs are represented by the vertical segments. N.O. inputs are represented by the horizontal segments.
- Page 11 AUTOMATISMI BENINCÀ SpA - Via Capitello, 45 - 36066 Sandrigo (VI) - Tel. 0444 751030 r.a. - Fax 0444 759728...
