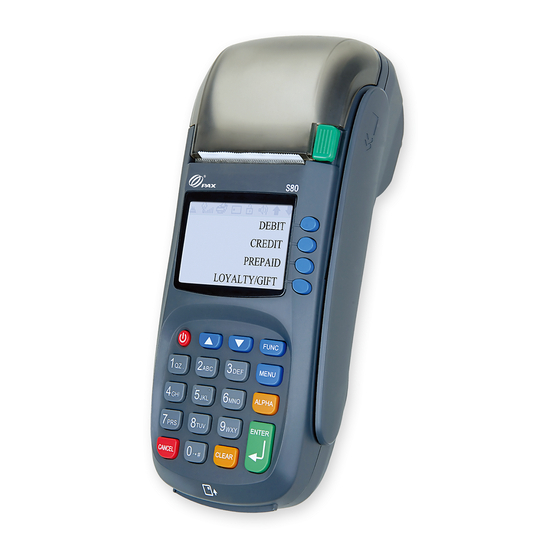

PAX S80 Quick Reference Manual



POWER

is red top-left button. If your terminal is blank, press this button. Do NOT power
 IF TERMINAL EVER LOCKS, turn off by pressing power button in top left corner. Turn back on.
 EMV cards may prompt for PIN. You can ENTER to bypass if PIN unknown, but some card issuers may not allow PIN bypass.
SALE – Mag-Stripe Card

Enter total amount and press ENTER. Use yellow CLEAR key to backspace if needed.
 Swipe card (mag-stripe toward machine) DO NOT HIT F4 FIRST!!!
SALE – PIN Debit 
** Most Best Card accounts are not set up for PIN Debit. For more information, please call 877-739-3952.
 Press F3 next to 'CREDIT' on the screen and this will change it to 'DEBIT'
 Enter Amount, then hit
 Terminal will prompt to SWIPE CARD
 Swipe card and terminal will prompt cardholder to enter their PIN
 NOTE: Debit cards run as "Credit" will still fall under "Offline Debit" pricing
SALE – Contactless/Apple Pay/Google Wallet
 Enter total amount then press ENTER. Use yellow CLEAR key to backspace if needed.
 Have customer hold contactless card or phone approximately 2 inches over the top of the terminal
 Terminal will beep & process transaction.
 Apple Pay will require cardholder to enter their passcode or thumbprint on phone in order to approve transaction.
SALE- EMV/Chip Card

Enter total amount then press ENTER. Use yellow CLEAR key to backspace if needed.
 Insert card in the slot at the front of the terminal, with chip facing upward.
 If PIN requested and want to skip,
 Terminal will prompt "DO NOT REMOVE CARD PLEASE" until fully processed.
SALE - Card NOT Present
 Enter total amount then press ENTER. Use yellow CLEAR key to backspace if needed.
 Enter account number then press
 Enter 4-digit expiration date & press

Is Card Present? Press #2 for 'No'
 Enter CVV2 (3-digit code on back of card) or press
 NOTE – IMPORTANT TO RECEIVE LOWEST RATE POSSIBLE**
 Street Address -Enter NUMBERS from cardholder billing (if 7107 1
 Zip –Enter the zip code from cardholder billing address.
REPRINT Receipt from OPEN batch
 Press FUNC then #6

Press "1-Last" for most recent transaction or "2-Any" to reprint a prior receipt
 If "Any" was selected, you will be prompted to enter the transaction number before a receipt will print.
VOID - To reverse transaction in an OPEN batch
 Press FUNC then 7
 Enter Transaction # (can be found on your receipt) then press
 Will display transaction info, if correct, press enter
 Press ENTER to void the transaction
RETURN – To credit back or refund a transaction from a PREVIOUS/CLOSED batch
Press FUNC then 8
o
Enter password (full date MMDDYYYY) then press
o
Enter the credit amount and press
o
Swipe or key in credit card
o
Enter the expiration date
o
AUTHORIZATION ONLY
 Press "F4" once or until 'AUTH' appears on the screen.

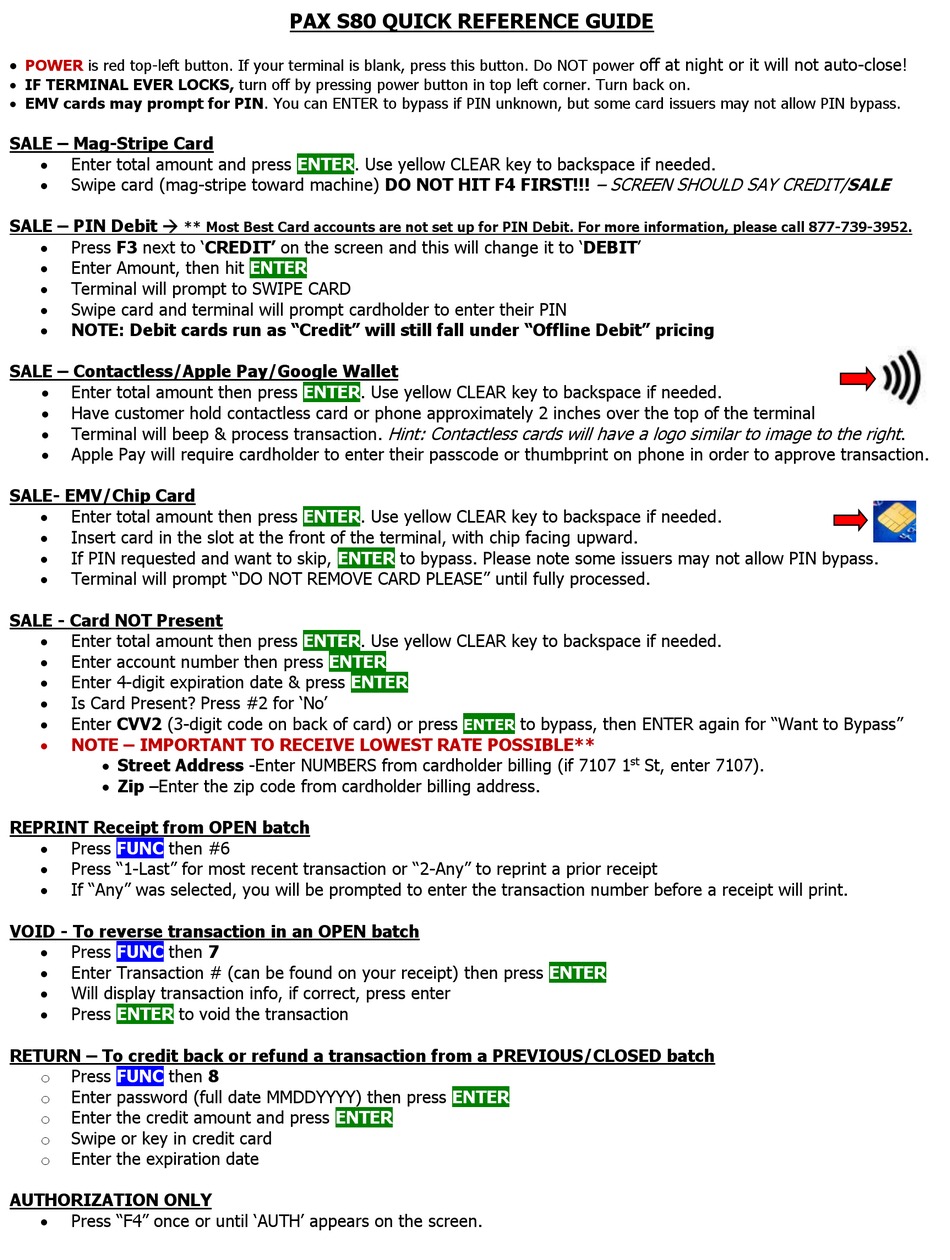

PAX S80 QUICK REFERENCE GUIDE
ENTER
Hint: Contactless cards will have a logo similar to image to the right
ENTER to bypass. Please note some issuers may not allow PIN bypass.
ENTER
ENTER
ENTER
– SCREEN SHOULD SAY CREDIT/SALE
to bypass, then ENTER again for "Want to Bypass"
ENTER
ENTER
ENTER
off at night or it will not auto-close!
st St, enter 7107).
.
