PAX S80 Quick Reference Manual

CREDIT PURCHASE/SALE
Enter sale amount, press OK
Press OK again and pass terminal to customer
Customer confirms sale amount
TIP: Customer chooses %, AMT or OK to skip, inputs tip and confirms total and
Customer inserts/swipes card, confirms amount again and enters PIN #
Terminal will process transaction
Merchant presses OK to print receipt and down arrow for customer copy
CREDIT REFUND
Press the Down scroll arrow to access Transaction Menu
Press 5 for Refund function
Enter Merchant Password, press OK
Enter Host Check No. of the transaction to be refunded, press OK
Enter refund amount, press OK
Press OK again and pass terminal to customer
Customer confirms sale amount and inserts/swipes card
Terminal will process refund and prints receipt
Merchant presses down arrow to print customer copy
Press the Down scroll arrow to access Transaction Menu
Press 2 for Pre-authorization function
Enter amount of pre-authorization, press OK
Press OK again and pass terminal to customer
Customer confirms sale amount inserts/swipes credit card (only)
Customer enters PIN #
Terminal will process transaction
Merchant presses OK to print receipt and customer copy
Press the Down scroll arrow to access Transaction Menu
Press 3 for (pre-authorization) Completion function, press OK
Enter Terminal Invoice No., press OK
Enter final amount of sale, press OK
Continue to next completion if necessary
FORCED CREDIT CARD TRANSACTION
Press the Down scroll arrow to access Transaction Menu
Press 4 for Force Post, press OK
Enter manually obtained authorization number, press OK
Customer swipes/inserts card
Enter amount of forced (manual) transaction, press OK
Customer enters PIN #
Terminal will process transaction
Merchant presses OK to print receipt and down arrow for customer copy

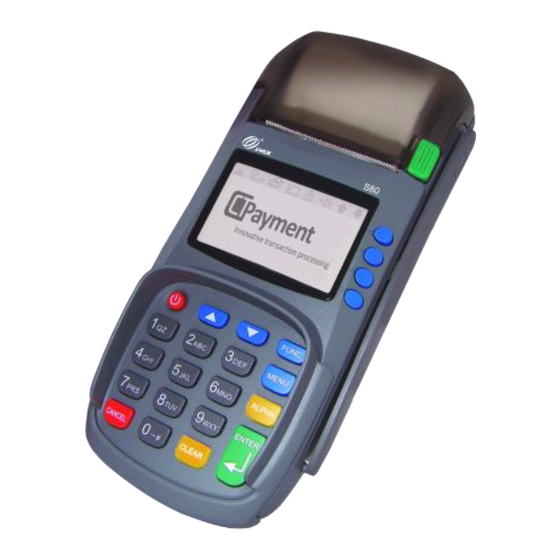

PAX S80 Quick Reference Guide
Cables Required:
S80 Power cable
Ethernet Cable
Telephone line if required
Power button is used to switch terminal
ON/OFF
The PAX S80 menu functions are arranged in
two menus: Transaction and Administration
Scroll buttons are used to scroll through to
display menu options
To access letters on the numeric keypad,
press the key quickly until the desired letter
appears
Press 0 (zero) twice for space,
Press Up button for [*] and
Press Down button twice for [•]
Use yellow Corr button to go back one step
