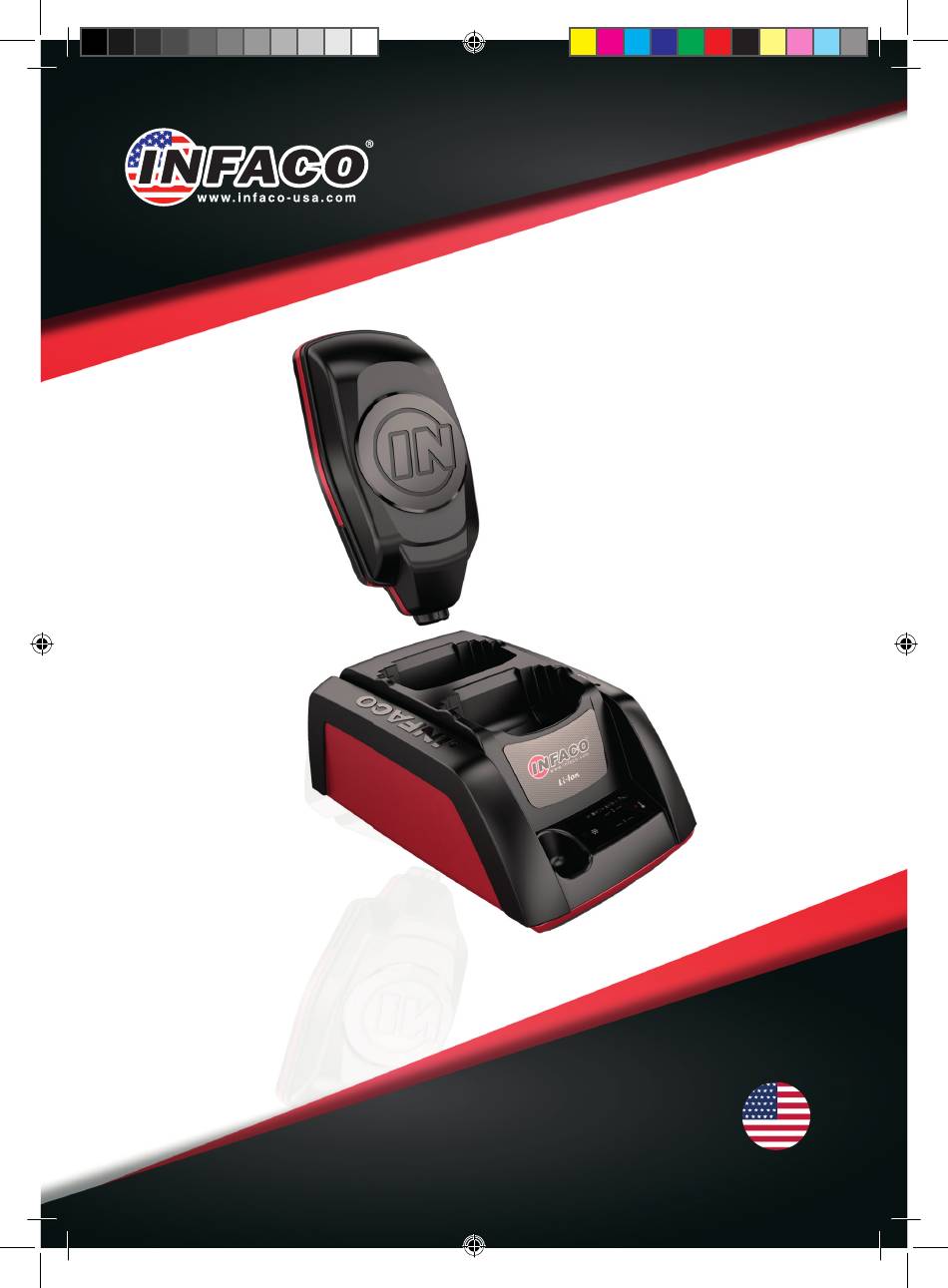

- Page 1 USER’S MANUAL MAL1b15 NOTMAL1B15_ENUSA_01.indd 1 NOTMAL1B15_ENUSA_01.indd 1 15/07/2020 10:40:12 15/07/2020 10:40:12...
- Page 2 NOTMAL1B15_ENUSA_01.indd 2 NOTMAL1B15_ENUSA_01.indd 2 15/07/2020 10:40:12 15/07/2020 10:40:12...
-
Page 3: Table Of Contents
CONTENTS PRECAUTIONS BEFORE USE___________________________________________4 ENVIRONMENTAL PROTECTION ______________________________________ 4 CASE CONTENTS_____________________________________________________4 PRODUCT OVERVIEW ________________________________________________5 SPECIFICATIONS __________________________________________________5 FIRST USE___________________________________________________________6 ___________________________________________________________________ Battery _____________________________________________________ Carrying the Equipment PRECAUTIONS FOR USE______________________________________________ 7 YEARLY MAINTENANCE______________________________________________ 7 TRANSPORT PRECAUTIONS __________________________________________ 7 CHARGING THE BATTERY_____________________________________________8 __________________________________________________________ Using the charger ________________________________________________________ Charging the battery ____________________________________________________... -
Page 4: Precautions Before Use
Follow all country-specifi c waste disposal rules and regulations. Electric appliances must not be disposed of as household waste. Recycle the device, accessories and packaging. Ask your approved INFACO dealer for up-to-date information on eco-compatible waste disposal. cASE CONTENTS 1 Battery... -
Page 5: Product Overview

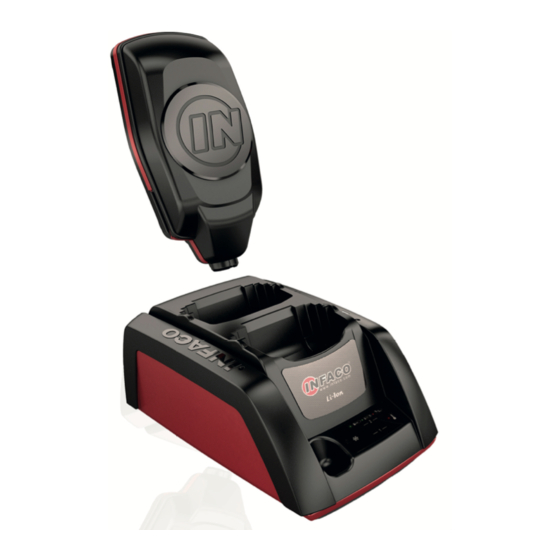

product overview Battery F3015 Charger F3015 specifications Reference Battery 831B Rated voltage 46.8 V Capacity 2.5Ah / 117Wh Weight 810 g Dimensions 190mm x 90mm x 60mm Reference Charger 841C1 Charger 841C2 Input 220/230V - 50/60Hz 110/120V - 50/60Hz Output 54,6V - 2A Power 110W... -
Page 6: First Use
Before using the equipment for the fi rst time and/or putting the battery to sleep mode, fully charge the battery (see charging procedure on page 10). The F3015 Lithium battery MUST be recharged using the INFACO Lithium charger (Ref.: 841C1/841C2). -
Page 7: Precautions For Use
PrEcautions for use Do not leave the pruning shears and/or the battery on the ground, and do not expose them to bad weather conditions. Make sure the battery’s protective plastic casing is not cracked and is free from any physical damage When working it is normal that the battery temperature rises (as during charging). -
Page 8: Charging The Battery
charging the battery Using the charger To charge your battery, plug in the charger in a well ventilated area which is free from infl ammable products and other sources of combustible materials. The area must be at a temperature between 10°C and 25°C and be sheltered from damp conditions. -
Page 9: Charging A Second Battery
Charging a second battery A second battery can be placed on the charger: Channel 2 Channel 1 4. Place the battery on channel 2 5. If the battery on channel 1 is charging, the battery on channel 2 switches to a waiting charge status: of the charger. -
Page 10: Forgetting To Put Your Batteries In Sleep Mode
Do not store the battery without carrying out the Sleep / Winter mode process. Do not store batteries that are out of service, return them to your approved INFACO dealer. Do not store batteries when they are connected to the charger or to a tool. -
Page 11: Safety Instructions
Never carry the charger by the cord, and do not pull on the cord to disconnect it from the socket. If a cord is defective or damaged, it must be replaced with a genuine set from the INFACO factory or from an approved INFACO dealer. - Page 12 INFACO declines all liability in terms of warranty for devices sold by distributors more than one year from their departure from the factory. This warranty corresponds to normal use of the equipment and does not cover: - damage due to poor maintenance or lack of maintenance,...
