- Page 1 WIRELESS O W N E R ’ S M A N U A L HP_JBL_Quantum 610_OM_CR_EN_V3.indd 1 HP_JBL_Quantum 610_OM_CR_EN_V3.indd 1 11/26/2021 3:08:34 PM 11/26/2021 3:08:34 PM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................1 WHAT’S IN THE BOX ..................... 2 PRODUCT OVERVIEW ....................3 Controls on headset .............................3 Controls on 2.4G USB wireless dongle ....................4 Controls on 3.5mm audio cable ......................5 GETTING STARTED....................... 6 Charging your headset ..........................6 Wearing your headset ..........................7 Power on ................................8 First-time setup (for PC only) ........................8... -
Page 3: Introduction

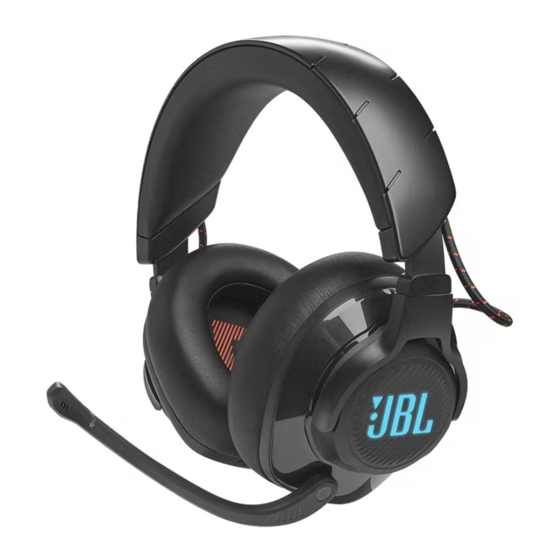

Introduction Congratulations on your purchase! This manual includes information on the JBL QUANTUM610 WIRELESS gaming headset. We encourage you to take a few minutes to read this manual, which describes the product and includes step-by-step instructions to help you to set up and get started. Read and understand all the safety instructions before using your product. -
Page 4: What's In The Box
What’s in the box JBL QUANTUM610 WIRELESS headset USB charging cable (USB-A to USB-C) 3.5mm audio cable 2.4G USB wireless dongle QSG, warranty card and safety sheet Windshield foam for boom microphone - 2 - HP_JBL_Quantum 610_OM_CR_EN_V3.indd 2 HP_JBL_Quantum 610_OM_CR_EN_V3.indd 2 11/26/2021 3:08:35 PM 11/26/2021 3:08:35 PM... -
Page 5: Product Overview
PRODUCT OVERVIEW Controls on headset dial Balances the chat volume in relation to the game audio volume. • Volume +/- dial Adjusts headset volume. • Detachable windshield foam Mic mute / unmute LED • Lights up when the microphone is muted. RGB-lit JBL logo Charging LED •... -
Page 6: Controls On 2.4G Usb Wireless Dongle
3.5mm audio jack USB-C port Voice focus boom microphone Flip up to mute, or flip down to unmute the microphone. • Flat-fold ear cup button • Press to mute or unmute the microphone. Hold for more than 5 seconds to turn the RGB light on or off. •... -
Page 7: Controls On 3.5Mm Audio Cable
Controls on 3.5mm audio cable slider Slide to mute or unmute the microphone in 3.5mm audio connection. • Volume dial Adjusts headset volume in 3.5mm audio connection. • - 5 - HP_JBL_Quantum 610_OM_CR_EN_V3.indd 5 HP_JBL_Quantum 610_OM_CR_EN_V3.indd 5 11/26/2021 3:08:35 PM 11/26/2021 3:08:35 PM... -
Page 8: Getting Started
Getting started Charging your headset Before use, fully charge your headset through the supplied USB-A to USB-C charging cable. TIPS: • It takes approximately 3 hours to fully charge the headset. • You can also charge your headset through a USB-C to USB-C charging cable (not supplied). -
Page 9: Wearing Your Headset
Wearing your headset 1. Put the side marked L onto your left ear and the side marked R onto your right ear. 2. Adjust the earpads and headband for a comfortable fit. 3. Adjust the microphone as necessary. - 7 - HP_JBL_Quantum 610_OM_CR_EN_V3.indd 7 HP_JBL_Quantum 610_OM_CR_EN_V3.indd 7 11/26/2021 3:08:36 PM... -
Page 10: Power On
Power on • Slide the power switch upwards to power on the headset. • Slide downwards to power off. The status LED glows solid white upon powering on. First-time setup (for PC only) Download from jblquantum.com/engine to gain full access to features on your JBL Quantum headset - from headset calibration to adjusting 3D audio to suit your hearing, from creating customized RGB lighting effects to determining how the boom microphone side-tone works. - Page 11 1. Connect the headset to your PC via 2.4G USB wireless connection (See “With 2.4G wireless connection”). 2. Go to “Sound Settings” -> “Sound Control Panel”. 3. Under “Playback” highlight “JBL QUANTUM610 WIRELESS GAME“ and select “Set Default” -> “Default Device”. 4.
-
Page 12: Using Your Headset
Using your headset With 3.5mm audio connection 1. Connect the black connector to your headset. 2. Connect the orange connector to the 3.5mm headphone jack on your PC, Mac, mobile or gaming console device. Basic operation Controls Operation Volume dial on 3.5mm audio cable Adjust master volume. -
Page 13: With 2.4G Wireless Connection
With 2.4G wireless connection 2.4G 1. Plug the 2.4G USB wireless dongle into a USB-A port on your PC, Mac or PS4/PS5. 2. Power on the headset. It will pair and connect with the dongle automatically. Basic operation Controls Operation Volume dial Adjust master volume. - Page 14 To pair manually >5S >5S 1. On the headset, slide the power switch upwards and hold for more than 5 seconds until the status LED flashes white. 2. On the 2.4G USB wireless dongle, hold CONNECT for more than 5 seconds until the LED flashes white quickly.
-
Page 15: Product Specifications
Product Specifications • Driver size: 50 mm Dynamic drivers Frequency response: 20 Hz - 20 kHz • • Microphone frequency response: 100 Hz -10 kHz • Max input power: 30 mW Sensitivity: 100 dB SPL @1 kHz / 1 mW •... -
Page 16: Troubleshooting
Troubleshooting If you have problems using this product, check the following points before you request service. No power The headset turns off automatically after 10 minutes of inactivity. Power on the • headset again. • Recharge the headset (see “Charging your headset”). - Page 17 My voice cannot be heard by my teammates • Make sure you have chosen JBL QUANTUM610 WIRELESS CHAT as the default device in the chat sound settings of your PC, Mac or gaming console device. Make sure the microphone is not muted. •...
