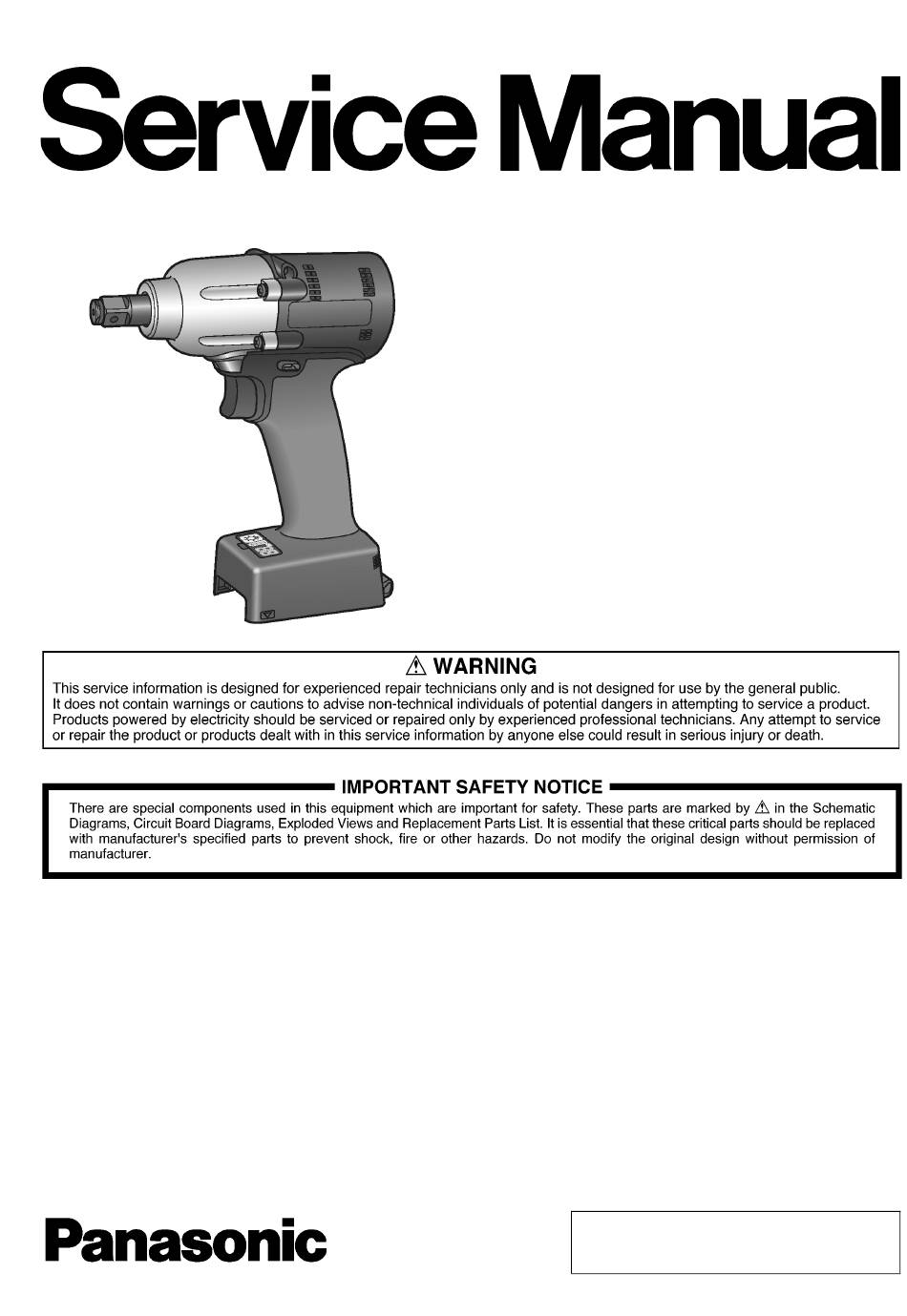

Panasonic EYFLA9C Service Manual
Cordless impact wrench
Hide thumbs
Also See for EYFLA9C:
- Operating instructions manual (77 pages) ,
- Operating instructions manual (60 pages)
Advertisement
TABLE OF CONTENTS
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 6
5 Exploded View and Replacement Parts List -----------12
Model No.
Model No.
Model No.
Model No.
Europe
PAGE
©
Unauthorized copying and distribution is a violation
of law.
Order Number PTD1902E58CE
Cordless Impact Wrench
EYFLA9C
EYFMA2C
EYFLA9P
EYFMA2P
Panasonic corporation 2019. All rights reserved.
PAGE
Advertisement
Related Manuals for Panasonic EYFLA9C
Summary of Contents for Panasonic EYFLA9C
-
Page 1: Table Of Contents
2 Specifications ----------------------------------------------------- 2 3 Troubleshooting Guide ----------------------------------------- 3 4 Disassembly and Assembly Instructions ---------------- 6 5 Exploded View and Replacement Parts List -----------12 © Panasonic corporation 2019. All rights reserved. Unauthorized copying and distribution is a violation of law. -
Page 2: Warning
1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long. -
Page 3: Troubleshooting Guide
3 Troubleshooting Guide 3.1. Troubleshooting Guide... - Page 5 3.2. Trial Operation (after checking Troubleshooting Guide). 3.2.1. Assembly • Confirm if there is no gap between housing A and B by pinching lead wires. • There is no dust or deformation on battery terminals. 3.2.2. Operation • Check whether the tool speed increases continuously as the trigger is gradually engaged. •...
-
Page 6: Disassembly And Assembly Instructions
4 Disassembly and Assembly Instructions * To reduce the risk of injury, always remove battery pack before removing/installing the tool. * To assemble the tool, start with 4-8 and proceed to 4-1 4.1. How to remove the Driving shaft assembly and Shaft cover assembly. 4.2. - Page 7 4.3. How to remove the Housing B. 4.4. How to remove the Interior components.
- Page 8 4.5. How to remove the Module assembly.
- Page 9 4.6. Checking and setting the Module assembly’s DIP switches. 4.7. How to remove the Motor mounting plate assembly.
- Page 10 4.8. How to remove the Driving shaft assembly.
- Page 11 4.9. EYFLA9/EYFMA2 Wiring and Assembly Points.
-
Page 12: Exploded View And Replacement Parts List
5 Exploded View and Replacement Parts List Model No. : EYFLA9C Exploded View... - Page 13 Model No. : EYFLA9C Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks EYFLA9C WEYFMA2CK607 DPT SEMS TAPPING SCREW (5PCS/PK) WEYFMA2CS337 SHAFT COVER ASSEMBLY WEYFMA2CS047 THRUST PLATE WEYFMA2CS127 ANVIL WEY7552K0987 O-RING WEY7552K0187 RETAINER RING WEYFME1CK967 TAPPING SCREW...
- Page 14 Model No. : EYFMA2C Exploded View...
- Page 15 Model No. : EYFMA2C Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks EYFMA2C WEYFMA2CK607 DPT SEMS TAPPING SCREW (5PCS/PK) WEYFMA2CS337 SHAFT COVER ASSEMBLY WEYFMA2CS047 THRUST PLATE WEYFMA2CS127 ANVIL WEY7552K0987 O-RING WEY7552K0187 RETAINER RING WEYFME1CK967 TAPPING SCREW (5PCS/PK) WEYFMA2CK371 HOUSING AB SET...
- Page 16 Model No. : EYFLA9P Exploded View...
- Page 17 Model No. : EYFLA9P Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks EYFLA9P WEYFMA2CK607 DPT SEMS TAPPING SCREW (5PCS/PK) WEYFMA2CS337 SHAFT COVER ASSEMBLY WEYFMA2CS047 THRUST PLATE WEYFMA2PS127 ANVIL WEYFNA1PL050 DETENT PIN WEYFNA1PL097 DETENT PIN SPRING WEYFNA1PL035 PRESS FIT PIN WEYFME1CK967...
- Page 18 Model No. : EYFMA2P Exploded View...
- Page 19 Model No. : EYFMA2P Parts List Ref. Change Safety Part No. Part Name & Description Q'ty Remarks EYFMA2P WEYFMA2CK607 DPT SEMS TAPPING SCREW (5PCS/PK) WEYFMA2CS337 SHAFT COVER ASSEMBLY WEYFMA2CS047 THRUST PLATE WEYFMA2PS127 ANVIL WEYFNA1PL050 DETENT PIN WEYFNA1PL097 DETENT PIN SPRING WEYFNA1PL035 PRESS FIT PIN WEYFME1CK967...
