Summary of Contents for SXT Scooters BEAST PRO

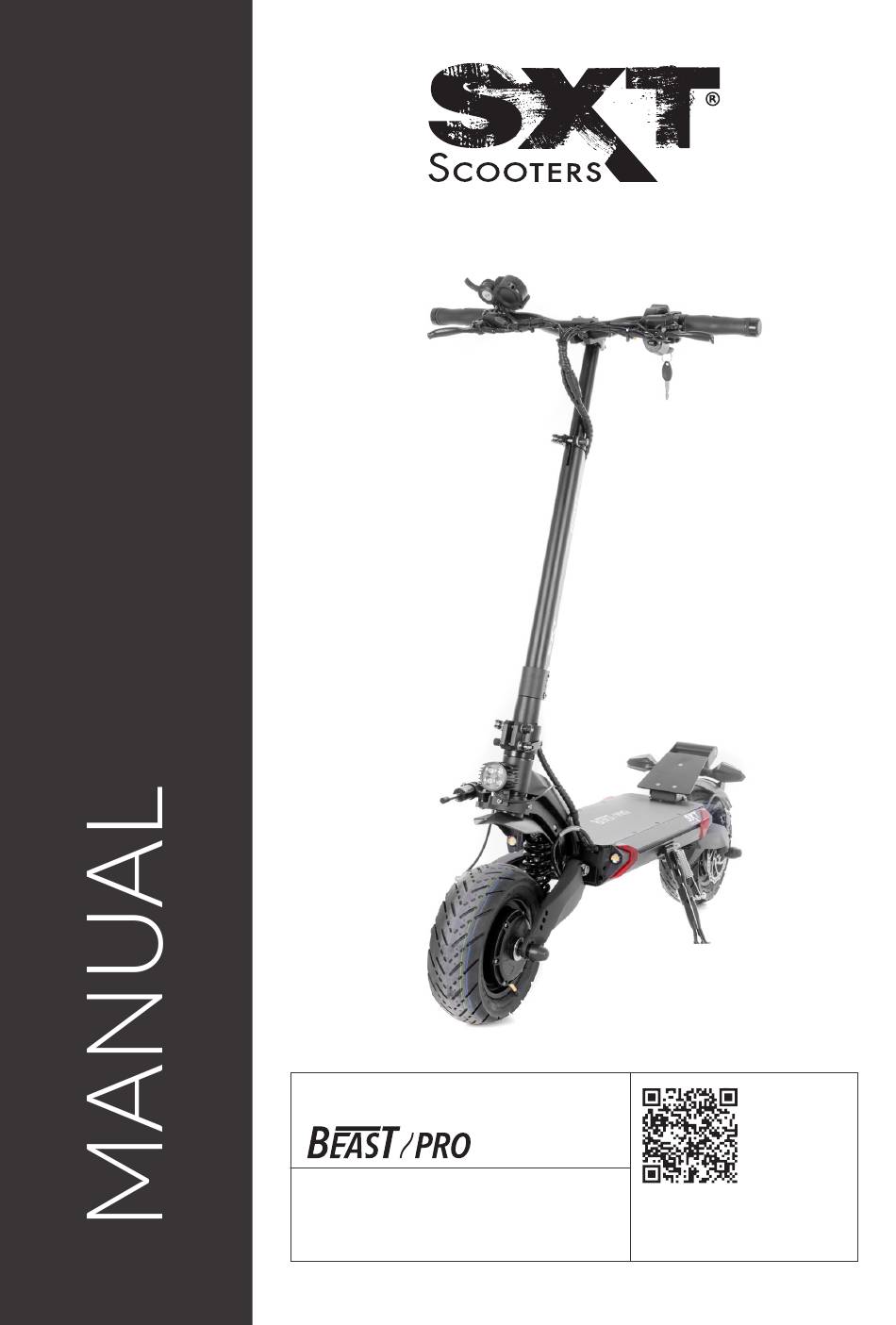

- Page 1 Vehicle Manual - Version Download SXT_MABSTPR_V1.3 Current manual...
-
Page 4: Table Of Contents
CONTENT Page Scope of delivery Technical Data Safety instructions Before the trip Identification number Folding Mounting handlebar Mounting side stand Mounting steering damper Mounting fender, lighting Scooter throttle to 25 km/h Vehicle parts LCD display, operation Landing instruction Maintenance and car Warranty Troubleshooting | 4 |... -
Page 6: Scope Of Delivery
SCOPE OF DELIVERY Elektroscooter Sidestand Fahrzeug | Vehicle Download Handbuch | Manual - Version Aktuelles Handbuch SXT_ESCBSTPR_V1.1 Current manual Charger Tool Set Steering damper Manual | 6 | MANUAL... -
Page 7: Technical Data
TECHNICAL DATA Max. range (at 22°C with 70 kg payload): 60 km Max. speed: 85 km/h Max. motor power: 2 x 2400 Watt Rated motor power: 2 x 1500 Watt Type of drive: brushless DC hubmotor Max. payload: 120 kg Max. -
Page 8: Safety Instructions
SXT BEAST PRO accurately & safely. It is important that you understand all the points and features of your new SXT BEAST PRO so that you can enjoy riding your new electric scooter from the very first minute. For the first ride, you should select a large open area to familiarize yourself with the riding habits and features of the scooter. - Page 9 SAFETY INSTRUCTIONS - Use from a minimum age of 16 years. - For your safety, we recommend wearing a bicycle helmet (CE certified according to test stan- dard DIN EN 1078), as well as protectors for arms and legs. - Observe the valid traffic regulations. - Never use the vehicle in poor visibility.
-
Page 10: Before The Trip
BEFORE THE TRIP 1. Always check the vehicle before driving it. Regular maintenance and care minimize the risk of damage, accidents and possible injuries. 2. most dangerous injuries in falls or accidents are head injuries - always wear appropriate pro- tective equipment such as an approved helmet with chin strap. - Page 11 1. Get to know the SXT BEAST PRO - before you ride it. Familiarize yourself with its handling characteristics. Do not make tight turns, drive slowly and pay attention to your braking distan- 2. Do not overestimate your abilities. Learn to ride the SXT BEAST PRO best on a large flat area without obstacles.
- Page 12 BEFORE THE TRIP Break: Always shift your body weight backwards when braking. The braking force is mainly trans- mitted through the feet and not through the handlebars - therefore it is a much more pleasant feeling when you are slightly „hanging on the handlebars“ instead of leaning forward. | 12 | MANUAL...
-
Page 13: Identification Number
SERIAL NUMBER Serial number / identification number: Make a note of the vehicle identification number of your e-scooter. Keep it in a safe place. Each scooter has an individual number. This can be used to clearly identify your vehicle, e.g. in the event of theft. -
Page 14: Folding
FOLDING Fold up and fold down: To unfold the scooter, put the steering tube up and press the collar down, then tighten the two ➊ clamping screws well To fold the scooter closed, loosen the two clamping ➊ screws until the collar can be pushed upwards, then you can fold the handlebars downwards. - Page 15 FOLDING Fully unfolded Fully folded | 15 | MANUAL...
-
Page 16: Mounting Handlebar
ASSEMBLY Mounting handlebar To assemble all components, place the steering tube upwards and push the collar downwards, ➊ then tighten the two clamping screws well ➋ Now turn the handlebar by 90° and then fasten it with the 4 supplied screw . -
Page 17: Mounting Side Stand
ASSEMBLY Mounting side stand Mount the supplied side stand according to the following description. ➋ First, screw the retaining screw for the tension spring into the thread provided. Before you ➌ mount the side stand, place the sealing ring on the hole. ➊... -
Page 18: Mounting Steering Damper
ASSEMBLY Mounting steering damper Mount the supplied steering damper according to the following description. ➋ ➊ First, screw the lamp with the bracket to the handlebar. ➌ ➎ Now prepare the steering damper as shown in pictures with the supplied screws and rubber buffers. -
Page 19: Mounting Fender, Lighting
ASSEMBLY Mounting fender Mount the rear mudguard with the 3 screws supplied. Mounting turn signal The two rear lights now only need to be inserted into the matching hole and then screwed into place. | 19 | MANUAL... -
Page 20: Scooter Throttle To 25 Km/H
THROTTLE DOWN TO 25 KM/H Scooter Beast/Pro throttle to 25 km/h! To ride legally in France with the SXT Beast/Pro, this must be throttled to 25 km/h. To do this, first unscrew the footboard (Fig.1), you must open the 11 Allen screws with a 3 mm allen key. - Page 21 THROTTLE DOWN TO 25 KM/H After the conversion, of course, the new speed levels apply. Mode switch Press the mode switch, to select one of the 3 speed levels. Level 1 - 4 km/h Level 2 - 16 km/h Level 3 - 25 km/h Scan the QR code and watch our installation video!
-
Page 22: Vehicle Parts
VEHICLE PARTS Folding mechanism LED Light hydraulic suspension hydraulic disc brakes brushless DC hubmotor Tires: 90/65-6.5 | 22 | MANUAL... - Page 23 VEHICLE PARTS finger throttle Breake left - rear Break right - front Display Description - Operating elements see page 24 - 25. Ignition lock LED Light hydraulic suspension hydraulic disc brakes Tires: 90/65-6.5 brushless DC hubmotor | 23 | MANUAL...
-
Page 24: Lcd Display, Operation
LCD DISPLAY / OPERATION Switch on scooter: Œ First insert the key into the ignition lock and turn it to the right - now you can see ➋ the current battery voltage on the digital display above. . Then press the power Ž... - Page 25 LCD DISPLAY / OPERATION Battery charge level Speed Drive mode Finger gas grip ➍ Ž ➎ Power switch Switch between ODO, TRIP, TIME, CUE and battery voltage. Mileage ODO - total mileage Mode switch TRIP - distance driven ➎ Press the mode switch to select one of the 3 speed levels.
-
Page 26: Landing Instruction
CHARGE BATTERY Loading instructions The scooter should be charged in a well-ventilated room at a normal average temperature. First connect the charger to a standard power outlet, then connect the charging cable to your SXT scooter. When everything is connected, the red indicator on the charger will light up. The battery is full when the indicator light changes from red to green. - Page 27 CHARGE BATTERY Charging instructions lithium batteries Lithium batteries should never be deep discharged, this will irreparably damage the lithium cells. All lithium batteries should (if possible) always be stored at medium charge. If a battery is not needed for an extended period of time, please do not fully charge it beforehand - this puts the lithium cells under unnecessary „stress“, which can result in a shortened life in the long run.
-
Page 28: Maintenance And Car
MAINTENANCE Cleaning: Please never wash the scooter with a water hose! To reliably prevent rust, it is recommended to thoroughly clean and dry the vehicle after driving in the rain. The use of rust inhibitors is strongly recommended. - Use suitable cleaning and care products and a soft sponge. - Never use solvents. -
Page 29: Warranty
WARRANTY Thank you for choosing one of our SXT BEAST PRO. You have a warranty of 24 months on your scooter from the date of purchase. Please note that there is no warranty if: 1. the warranty period has expired. -
Page 30: Troubleshooting
TROUBLESHOOTING If there is any problem with our product, please pay attention to the following things: 1. LCD display shows only black! Reason: Too long storage in intense sunlight. Solution: Put the vehicle in the shade - after some time the LCD display will function normally again. - Page 32 POL-Planet GmbH & Co. KG. Marie-Curie Straße 2 79618 Rheinfelden • Phone: +49(0)7623 460 460 info@sxt-scooters.de www.sxt-scooters.de •...
