INbzb008_UK
842-172
31" DEEP FIRE PIT
READ AND SAVE THIS INSTRUCTION FOR FUTURE USE
ASSEMBLY INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 842-172 and is the answer not in the manual?

Questions and answers

Summary of Contents for Outsunny 842-172

  • Page 1 INbzb008_UK 842-172 31” DEEP FIRE PIT READ AND SAVE THIS INSTRUCTION FOR FUTURE USE ASSEMBLY INSTRUCTION...

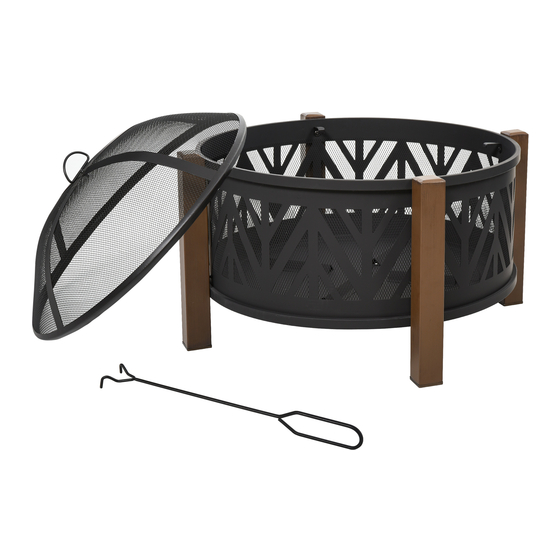

  • Page 2 Support Holders Spark screen Spark Handle Cooking grill Poker HARDWARE LIST Hardware M6 x25 mm Bolt N6 Nut Estimated Assembly Time: 10 minutes. Tools Required for Assembly: M6 Wrench (Not Included) and Phillips Screwdriver (Not Included) 31” Deep Fire Pit 842-172...
  • Page 3 Step1: Attach Handle (E) to the Spark screen (D) using N6 nut (S2) to tighten. Step 2: Attach the leg (B) to the bowl side, using 8 of the M6 x 25mm bolt fasten the support holders (C) to tighten. 31” Deep Fire Pit 842-172...
  • Page 4 Step 3: Put the cooking grill (F) and Spark screen (D) on the bowl. Step 4: Now the fire pit is ready for using, keep the poker beside the fire pit. 31” Deep Fire Pit 842-172...
  • Page 5 • Adequate fire extinguishing material should be readily available. • Poker handle may become hot during and after use. • Use heat-resistant gloves to handle hot tools. • Always ensure the doors are securely closed while in use. 31” Deep Fire Pit 842-172...
