Outsunny 842-169 Assembly Instruction Manual

Outsunny 842-169 Assembly Instruction Manual

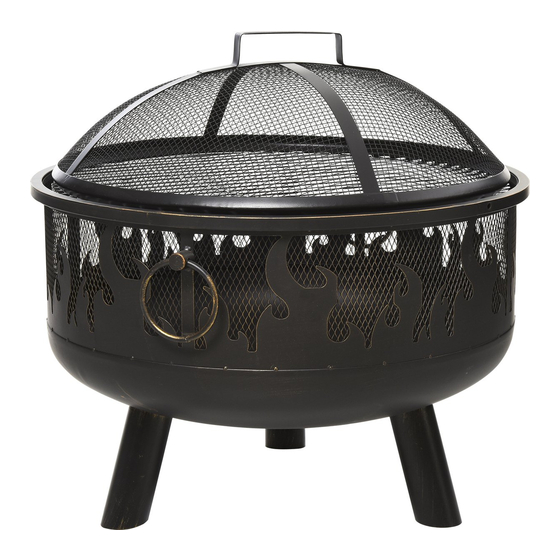

24” deep fire pit

Advertisement

INbzb002_UK
842-169
24" DEEP FIRE PIT
READ AND SAVE THIS INSTRUCTION FOR FUTURE USE
ASSEMBLY INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 842-169 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Outsunny 842-169

  • Page 1 INbzb002_UK 842-169 24” DEEP FIRE PIT READ AND SAVE THIS INSTRUCTION FOR FUTURE USE ASSEMBLY INSTRUCTION...
  • Page 2 Do not use on wooden surfaces, decks, grass, near walls or flammable articles, or under overhead coverings.  Only use the fuel type(s) specified in the instructions. Using other fuel types is dangerous and may result in an injury.  Do not overload the unit with fuel. 24” Deep Fire Pit 842-169...
  • Page 3 Tools Required for Assembly: M8 Wrench (Included) and Phillips Screwdriver (Not Included) FIRE PIT PARTS LIST PARTS Legs Bowl Threaded rod (screws) Mesh Wire Cover Poker Cooking grill HARDWARE LIST Hardware Flat washer M8 Nuts 24” Deep Fire Pit 842-169...
  • Page 4 Step 1: Attach the Legs (A) into the Bowl (D) by using flat washer (S6) and M8 nuts (S2), then tighten all nuts with a wrench. Step 2: Insert threaded rods (K) into edge of fire bowl (D) as illustrated and hand tighten, then put Mesh Wire Cover (E) on the fire bowl. 24” Deep Fire Pit 842-169...
  • Page 5 Step 3: Put the cooking grill (F) and spark screen (E) on the Threaded rod, then place poker (H) beside fire pit for use as needed, now you’re ready to start up your first fire in your new fire pit! 24” Deep Fire Pit 842-169...
