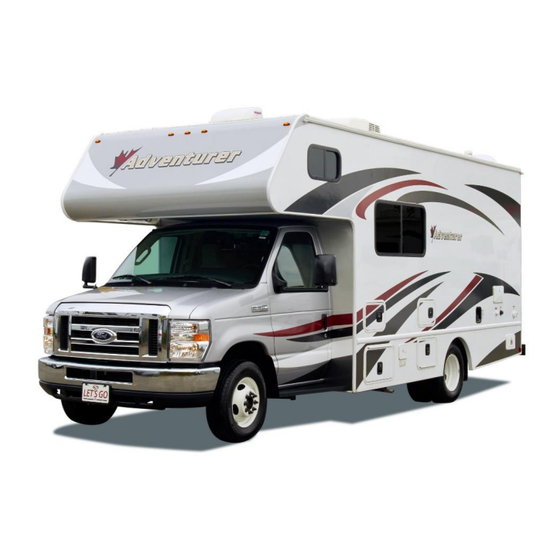

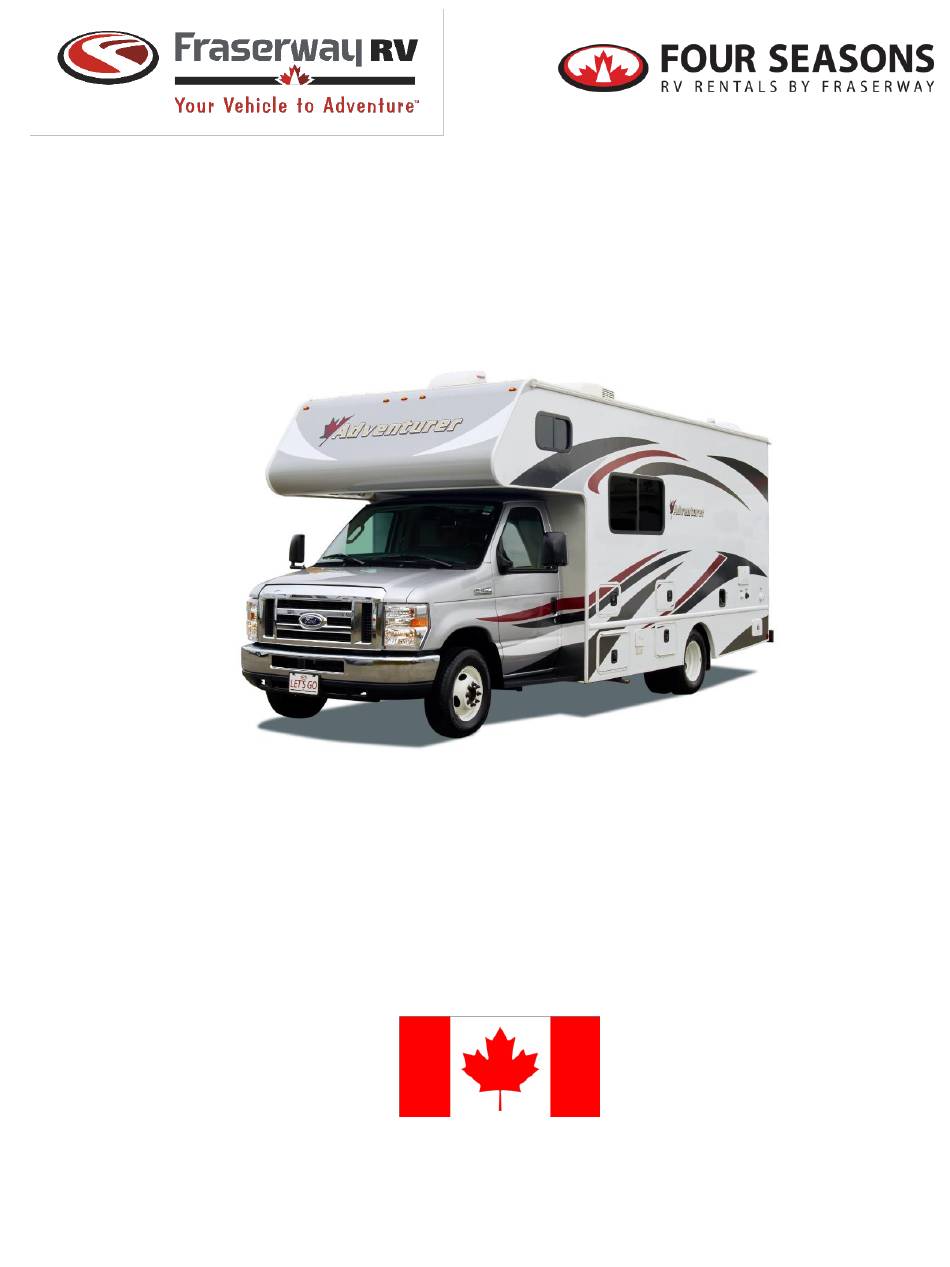

- Page 1 RV Type: C-Medium Instruction Manual ENGLISH...
-
Page 2: Table Of Contents
CANADIAN TRAFFIC RULES AND ROAD SIGNS .................. 2 ..................................2 RAFFIC ULES ..................................... 4 IGNS CABIN ............................. 5 ..................................5 GNITION WITCH ................................5 ATTERY OOST WITCH ................................ 5 UTOMATIC RANSMISSION ....................................5 ..................................5 RUISE ONTROL ) ........................6 ARKING RAKE MERGENCY... -
Page 3: Canadian Traffic Rules And Road Signs
CANADIAN TRAFFIC RULES AND ROAD SIGNS TRAFFIC RULES ALCOHOL AND DRUGS Permitted blood alcohol levels are mandated by the provinces and territories. Please do not drive under the influence of alcohol and/or drugs! TRAFFIC LIGHTS Traffic lights are suspended across the intersection. Left turn arrows indicate that you can safely turn left while the oncoming traffic is still stopped at a red light. - Page 4 If you are aware that you have crossed a toll bridge on your journey, please inform us upon return of the RV to avoid additional administrative charges. Fraserway RV will be billed directly by the company responsible for collecting the toll fee.
-
Page 5: Road Signs
SCHOOL BUSES Canadian school buses are yellow. They signal to stop all traffic (no passing!) using flashing red lights and/or a swing-out stop sign. It is against the law to pass a stopped school bus. All traffic must come to a halt to ensure children can get on and off the bus safely. -
Page 6: Cabin
CABIN All vehicles are equipped with an automatic transmission, power steering and power brakes. The V8 engine displacement is 5.4 litres and an output of 255 horsepower, the V10 6.8 litres and of 305 horsepower. IGNITION SWITCH The ignition switch has 5 different key positions: POSITION A (ACCESSORY) allows the electrical accessories such as the radio to operate while the engine is not running. -
Page 7: Parking Brake (Emergency Brake/Hand Brake)
PARKING BRAKE (EMERGENCY BRAKE/HAND BRAKE) ①Parking brake release lever (pull to release). ②To engage the parking brake, press the foot pedal. ③Hood release lever (pull to open hood). HEATED SIDE MIRRORS Your RV is equipped with heated side mirrors. The switch is located on the driver’s door (above ①... - Page 8 assistance. Changing a wheel is at your own risk. The wheel nuts of the changed wheel must be checked after 100 kms or sooner and retightened if necessary. Failure to do so could cause serious accidents. WARNING: The renter is liable for damages resulting from improper tire change or non-performed checks. STORAGE LOCATION FOR TIRE CHANGE TOOLS The tools needed for the tire change can be found in one of the rear outside compartments of the motorhome.
-
Page 9: Vehicle Specifications
VEHICLE SPECIFICATIONS Motorhome Class Class C – MH23RB Chassis Ford E350 Engine Eight or Ten-cylinder (V8/V10) Roof air conditioner Microwave Integrated in convection oven Convection oven Oven 3-point-seat belts at dinette Bathroom vent DVD player Rear dual tires Generator Side slide-out Rear slide out Sleeps Seat belts... -
Page 10: External View
EXTERNAL VIEW 1. Storage compartments 8. Sewer system (connection, black and grey water valves) 15. Fridge vent cover 2. Generator 9. 110V power connection for electrical hook-up 16. Extractor hood vent 3. Sewer hose storage 10. Freshwater tank/potable water 17. Porch light 4. -
Page 11: Electrical System
AWNING Our vehicles are equipped with an awning. The operating switches are located next to the entrance door. IMPORTANT: • Never use the awning in stormy weather or in strong winds! • The awning must be retracted when the RV is left unattended. •... -
Page 12: Generator
FUSES & FUSEBOX The fuses for the internal 12V or 110V power circuit are located in the fuse at the main bed (floor level). ① 12V PLUG-IN (BLADE-TYPE) FUSES ② The 12V plug-in fuses protect the inside and outside lighting, water heater, water pump, heater fan, fans, bathroom vent, fridge, and awning. - Page 13 generator does not start or switches off automatically as soon as the fuel level drops below ¼. Please do not use generators while driving! To turn ON the generator Turning the Generator OFF Turn off all electrical devices. Turn off all electrical devices. Press the switch STOP/PRIME ③...
-
Page 14: Propane Tank
PROPANE TANK Stove top burners, water heater, furnace and the generator in DIESEL operated RVs are fuelled by propane. The RV is equipped with an integrated propane tank located underneath the vehicle. Main valve , tank inlet ① ② level indicator are located directly on the tank. - Page 15 Never empty the freshwater tank entirely because this may damage the water pump. Renters are CAUTION: liable for damage expense and/or loss of time resulting from insufficient water tank level. Troubleshooting: Freshwater Tank Problem Cause/Solution Freshwater tank Be sure not to confuse the freshwater tank inlet (passenger side) with the city water remains empty connection or the sewer flush (both at the driver side).
-
Page 16: Toilet
WATER HEATER The RV is equipped with a propane-operated water heater. The water heater cannot be refilled manually but fills automatically using the cold water available in the internal freshwater tank or city water connection. Turn the water heater switch on. -
Page 17: Wastewater
WASTEWATER The RV is equipped with two separate wastewater tanks. The grey water tank holds the wastewater drained from the sinks and shower. The black water tank holds waste flushed down the toilet. Please use plenty of water with each flush of the toilet to prevent clogging. The tank capacities are limited. -
Page 18: Dinette Table/Bed Combination
Fan Mode Setting: Press the mode key until the fan mode (Fan) is activated. Press the key to set the ① ② ③ fan to low (LOW), high (HIGH) or automatic (AUTO) speed. We recommend using the AUTO setting! Mode of Operation: Press the mode button to switch between the available air conditioning (COOL) and heating (HEAT) modes. - Page 19 CONTROLS AT A GLANCE ① Convection ⑦ Number Keys/Convection Temperature Keys ② Grill ⑧ Clock Setting ③ Roast ⑨ Stop/Clear ④ Power in % ⑩ Express Cook ⑤ Defrost ⑪ Kitchen Timer ⑥ Auto Menu: ⑫ Start/+30SEC Popcorn/Potato/Beverages Dinner Plate/Fresh and freezed vegetables Convection Menu: Roast Chicken/Cake/Pizza CLOCK SETTING...
-
Page 20: Fridge
DEFROST BY TIME Press "Defrost" twice, the oven will display "dEF2"."Micr." ,"Defrost" indicators will light. Press the number keys to set defrosting time. The max. time is 99 minutes 99 seconds. Press " Start/+30SEC. " button to start defrosting. MULTI-STAGE COOKING A maximum of two stages of cooking can be set. - Page 21 1. Park the RV in a level spot. Incline positions can damage the fridge. 2. Always make sure to close the fridge and freezer doors properly. CAUTION: 3. Before you enter a gas station or a ferry, please turn off the fridge first, then shut off the propane.
- Page 22 FRIDGE RESET If your fridge does not cool, and neither the display nor the interior of the fridge is illuminated, please first check if the problem can be solved by resetting the fridge. To do this, follow these steps: Turn off the fridge. Turn off the main power and the propane.
-
Page 23: Safety Equipment
SAFETY EQUIPMENT SMOKE DETECTOR/CARBON MONOXIDE ALARM Each RV is equipped with a combined carbon monoxide alarm/smoke detector. This alarm sounds if an excess carbon monoxide concentration (CO) is measured in the air. CO is a colour- and odourless gas, which can escape if, for example, there is a malfunction in the burner system of a stove, oven or furnace. -
Page 24: Returning The Vehicle
Fraserway RV rental branch directly. This manual is (c) 2021 Fraserway RV LP, and all related marks, logos, and model names are owned by Adventurer Manufacturing LP and Fraserway RV LP, Inc. or its licensor(s).
