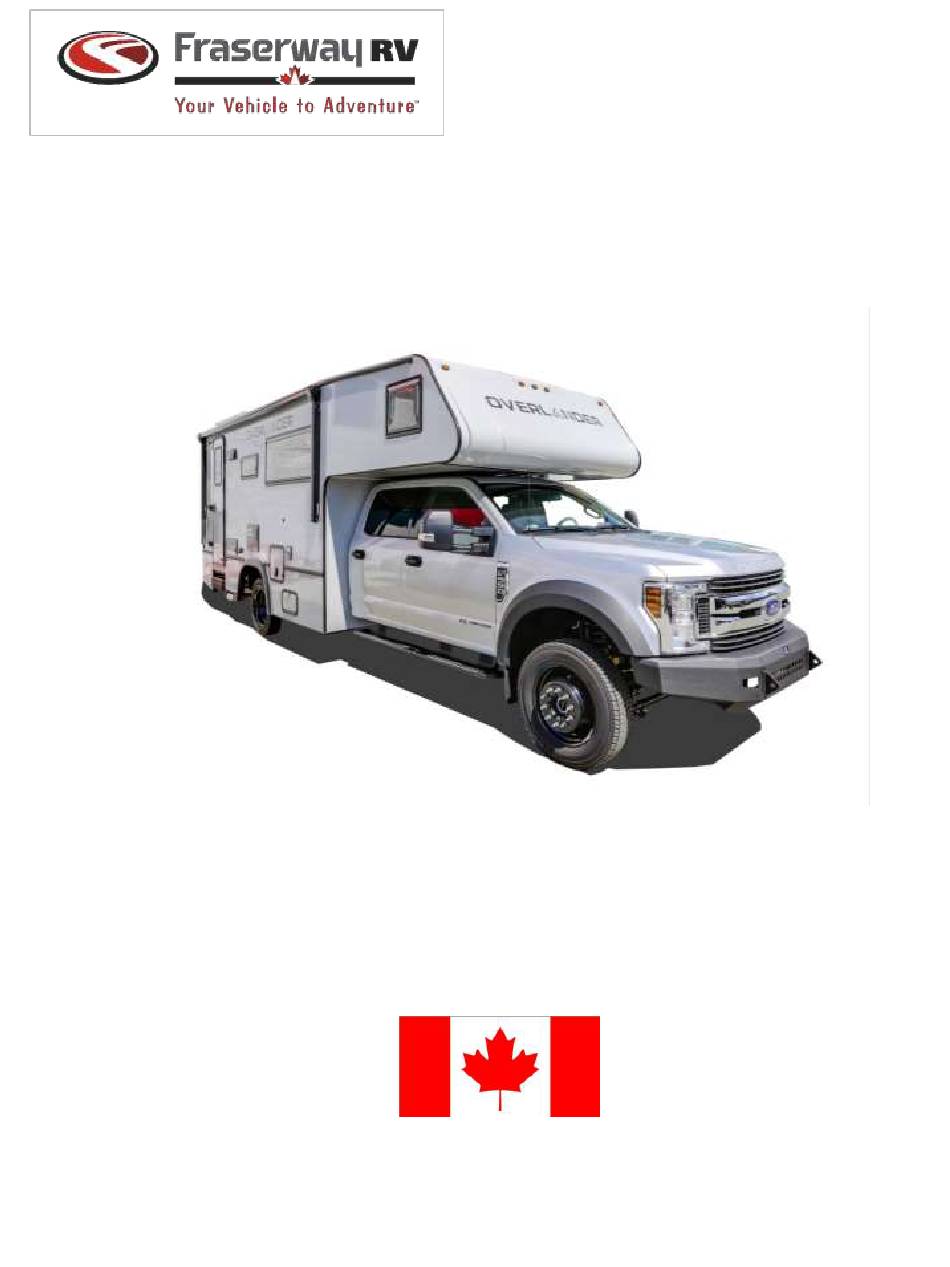

- Page 1 RV Type: Overlander Instruction Manual ENGLISH...
-
Page 2: Table Of Contents
CANADIAN TRAFFIC RULES AND ROAD SIGNS .................. 2 ..................................2 RAFFIC ULES ..................................... 4 IGNS CABIN ............................. 5 ..................................5 GNITION WITCH ................................ 5 UTOMATIC RANSMISSION ................................5 IESEL NGINE RAKE ....................................5 ..................................5 RUISE ONTROL AKE & ..........................6 MERGENCY BATTERY BOOST SWITCH ..................................... -
Page 3: Canadian Traffic Rules And Road Signs
CANADIAN TRAFFIC RULES AND ROAD SIGNS TRAFFIC RULES ALCOHOL AND DRUGS Permitted blood alcohol levels are mandated by the Provinces and Territories and will vary. Please do not drive under the influence of alcohol and/or drugs! TRAFFIC LIGHTS Traffic lights are suspended across the intersection. Left turn arrows indicate that you can safely turn left while the oncoming traffic is still stopped at a red light. - Page 4 If you are aware that you have crossed a toll bridge on your journey, please inform us upon return of the RV to avoid additional administrative charges. Fraserway RV will be billed directly by the company responsible for collecting the toll fee. Some crossings will require direct payment on the spot. Please use the truck lane to avoid any height restriction issues.
-
Page 5: Road Signs
ROAD SIGNS One way street. Pedestrians are not allowed to cross the Crossing the road is only permitted at Do not enter. Vehicles parked in this zone without a street here. crosswalks. permit will be towed. Road is closed. The arrow points in the From this point, do not change lanes until Authorized vehicles only (buses, emergency No parking on either side of the sign. -
Page 6: Cabin
CABIN All vehicles are equipped with an automatic transmission, power steering and power brakes. The V8 engine displacement is 6.7 litres and an output of up to 330 hp. IGNITION SWITCH The ignition switch has 5 different key positions: POSITION A (ACCESSORY) enables use of the vehicle's electrical system (radio etc.) without the engine running or the ignition being turned on. -
Page 7: Emergency Brake & Battery Boost Switch
PROGRAMMING 1. Turn cruise control on using the ON button. ④ 2. Accelerate by pressing SET + until reaching the desired speed. Release the button and the speed will be maintained. Alternatively, the foot pedal can be used to increase speed, then briefly press the SET + button to maintain speed automatically. ⑤... -
Page 8: Board Computer
BOARD COMPUTER trucks equipped with information display for drivers to monitor vehicle systems, receive alerts, program and configure certain vehicle features. Use the steering wheel controls to cross, make selections and adjustments Information display that will appear in the information display within the instrument cluster. -
Page 9: Vehicle Care And Maintenance
VEHICLE CARE AND MAINTENANCE DIESEL FUEL This vehicle is equipped with a diesel engine and requires ultra-low sulfur diesel fuel (D1/D2). Please use big-brand stations for refuelling, such as Esso, Shell, Chevron, Husky, Petro Canada, Irving, etc. The fuel available at independent stations is often of a lower quality which can cause problems by clogging fuel pumps, etc., resulting in trip disruption and expensive repairs. -
Page 10: Tires
TIRES TIRE PRESSURE - TIRE CHECK Please check tire pressures regularly. The tires should be cold when the pressure is checked! Tire pressure (cold): 95 PSI (front) – 110 PSI (rear)* *The recommended tire pressure is also indicated on the tires and/or on a sticker inside the driver-side door frame. -
Page 11: Vehicle Specification
VEHICLE SPECIFICATION Motorhome class Class C – MH 29 DS Chassis Ford F550 Engine Roof air conditioner Microwave Convection oven Oven 3-point-seat belts at dinette Bathroom vent DVD player Rear dual tires Diesel-driven generator No, generator is Propane-driven! Side slide-out Rear slide out Sleeps Seat belts... -
Page 12: External View
EXTERNAL VIEW ① ⑧ ⑨ ⑩ ② ③ ④ ⑤ ⑥ ⑦ 1. Storage compartments 11. Awning 21. Back up camera 2. DEF filler 12. Extractor hood vent ⑦Multiple service compartment details 3. Generator 13. Assist handle (Caution: will not carry person’s ⓐ... -
Page 13: Awning
AWNING Our vehicles are equipped with an awning. The control switches are located on the wall just inside the camper door. ① ③ ⑤ The renter is liable for all damage resulting from improper CAUTION: operation of the awning. IMPORTANT: ... - Page 14 HOOK-UP TO THE POWER GRID (110V) A power cable is provided with the RV for connecting the vehicle to the 110V power hook-up at campsites. The regular plug is for a 30AMP connection which is standard at most campgrounds. An adapter is provided for occasions when only 15AMP connection is available.
-
Page 15: Generator
Troubleshooting: Power Supply Problem Cause/Solution No power from the power outlets - RV is not connected to 110V - 110V power source at campground is not working - Broken power cord - Tripped breaker - Reset button tripped No power at all in the living area or - Main power switch is OFF (page 11, battery switch position) only when the engine is running - Coach battery level is too low and the batteries need to be charged by... -
Page 16: Propane Tank
START switch Generator breaker Please remove the green generator cover to check the breaker (small black lever) on the side of the generator. There is also a start switch above it directly on the generator. SAFETY INSTRUCTIONS: 1. Never use the generator compartment for storage. Please keep the compartment clean and dry at all times. 2. -
Page 17: Water System
When used properly, propane use is very safe. Nevertheless, all our vehicles are equipped with a propane detector that triggers an alarm when an elevated concentration of propane is detected in the air. Propane is highly flammable and explosive. Therefore, please be sure to strictly follow the operating instructions for all propane-operated devices in the vehicle. - Page 18 WATER PUMP The water pump switch must have switched ON (illuminated in red) to draw water from the fresh water tank. The switch for the water pump is on the battery and tank level panel. Please turn off the pump - while driving, - when not use it for an extended period, - when the RV is connected to the city water hook up.
-
Page 19: Toilet
WATER HEATER The RV is equipped with a propane-operated water heater which supplies heated water to the faucets and showers. The water heater refills automatically drawing the cold water available from the freshwater tank or city water connection. Press the water heater switch ①... -
Page 20: Wastewater
Troubleshooting: Toilet Problem Cause/Solution The toilet is clogged - The black water tank might be full. Please empty it at the dump station of your campground or a Sani dump. - Pour some hot water into the toilet. It will flow to the wastewater tank and should help dissolve solid waste quickly. -
Page 21: Cooking Area
- NEVER run the furnace for an extended time WITHOUT a power connection. If the camper is not hooked up to a 110V power grid (on the campground), the heater may become overloaded. The fan consumes power that could quickly drain the camper batteries. The stress on the CAUTION: batteries can be mitigated by setting the thermostat to the lowest possible temperature for comfort. - Page 22 Ignition Press in the knob of the corresponding element and turn it counter-clockwise (propane flow can be heard). Ignite the element by turning the spark knob or using a gas lighter. Turn the element’s knob to desired level and release. Turning Off To shut off an element, turn the corresponding knob back to the OFF position.
- Page 23 KITCHEN TIMER 1. Press "KITCHEN TIMER " once, the screen will display 00:00, the first hour figure flash. 2. Press the number keys and enter the timer time. (The maximum cooking time is 99 minutes and 99 seconds.) 3. Press " START/+30SEC. " to confirm setting. 4.
- Page 24 POTATO 1. Press " POTATO " repeatedly until the number you wish appears in the display, "1", "2", "3" will display in order. "1"SET: 1 potato (approximate 8 Oz) "2"SETS: 2 potatoes (approximate 16 Oz) "3"SETS: 3 potatoes (approximate). For example, press "POTATO" once, "1" appears. 2.
-
Page 25: Fridge
1. Press "TIME COOK" once, then press "5", "0", "0" to set the cooking time; 2. Press "POWER" once, then press "8" to select 80% microwave power. 3. Press "TIME COOK" once, then press "1", "0", "0", "0" to set the cooking time; 4. - Page 26 Troubleshooting: Fridge Problem Cause/Solution Display is on but fridge does not - Failure because RV is not parked level cool - Fridge is too full, air can’t circulate - Evaporator fins are iced up, thermistor high (colder) - Evaporator thermistor too low (warmer) ...
-
Page 27: Slide-Out
FRIDGE RESET If your fridge does not cool, and neither the display nor the interior of the fridge is illuminated, please first check if the problem can be solved by resetting the fridge. To do this, follow these steps: 1. Turn off the fridge. 2. -
Page 28: Overhead Power Bunk Bed
OVERHEAD POWER BUNK BED The Overlander RV is equipped with a power overhead bunk bed. Turn key to enable the electric bunk bed controls. Press and hold up or down arrows to place bunk bed in desired position. -
Page 29: Safety Equipment
SAFETY EQUIPMENT SMOKE DETECTOR/CARBON MONOXIDE ALARM Each RV is equipped with a combined carbon monoxide alarm/smoke detector. This alarm sounds if an excess carbon monoxide concentration (CO) is measured in the air. CO is a colourless and odourless gas, which can escape if, for example, there is a malfunction in the burner system. -
Page 30: Returning The Vehicle
Fraserway RV rental branch directly. This manual is (c) 2021 Fraserway RV LP, and all related marks, logos, and model names are owned by Adventurer Manufacturing LP and Fraserway RV LP, Inc. or its licensor(s).
