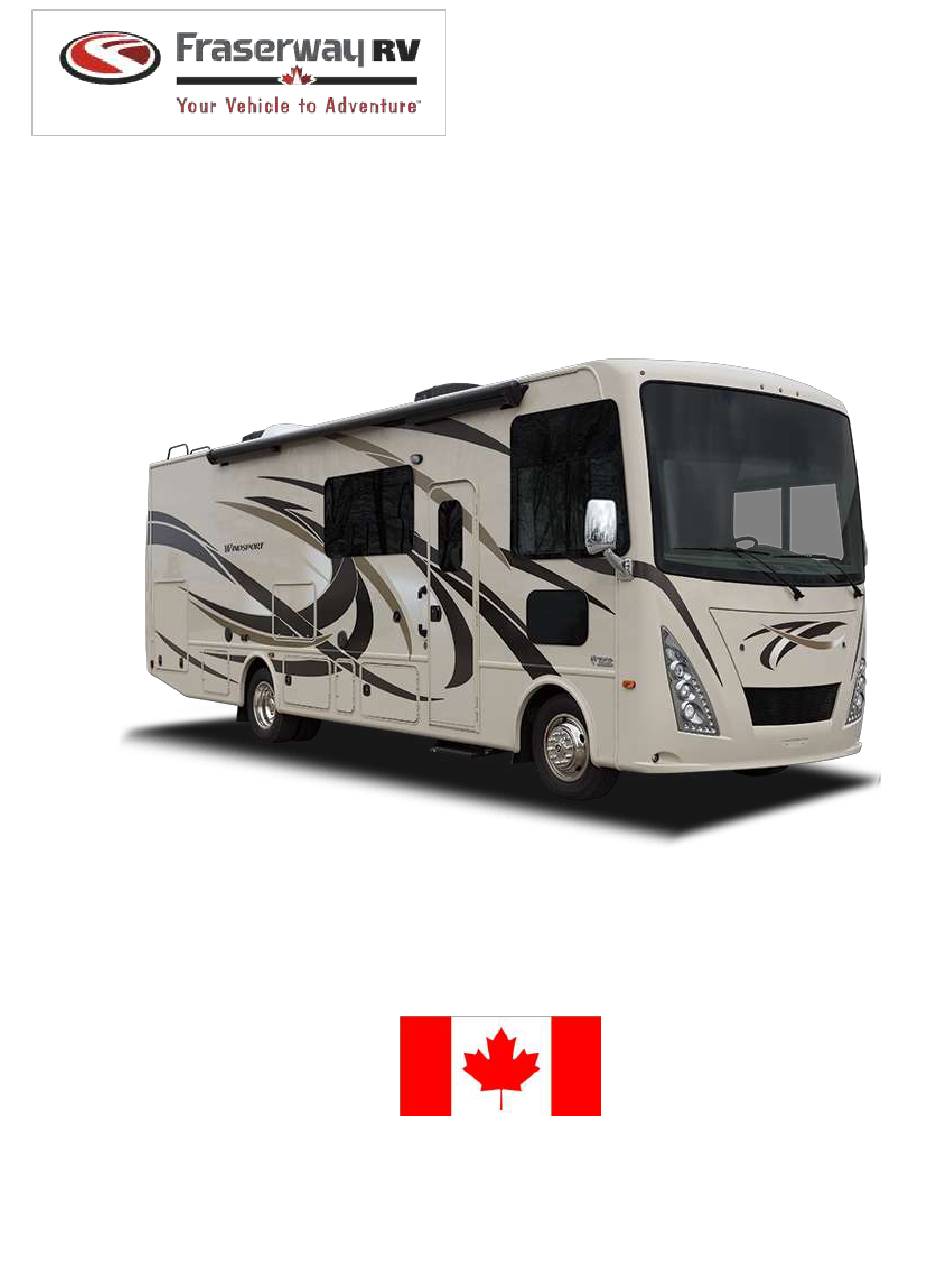

- Page 1 RV Type: A-Class Luxury Instruction Manual ENGLISH...
-
Page 2: Table Of Contents
CANADIAN TRAFFIC RULES AND ROAD SIGNS ................2 TRAFFIC RULES ................................. 2 ROAD SIGNS ..................................4 CABIN ............................5 IGNITION SWITCH ................................5 BATTERY BOOST SWITCH ..............................5 AUTOMATIC TRANSMISSION............................5 TOW/HAUL ..................................5 CRUISE CONTROL ................................6 PARKING BRAKE (EMERGENCY BRAKE/HAND BRAKE) ..................... 6 HEATED SIDE MIRRORS .............................. -
Page 3: Canadian Traffic Rules And Road Signs
CANADIAN TRAFFIC RULES AND ROAD SIGNS TRAFFIC RULES ALCOHOL AND DRUGS Permitted blood alcohol levels are mandated by the provinces and territories. Please do not drive under the influence of alcohol and/or drugs! TRAFFIC LIGHTS Traffic lights are generally across the intersection. Left turn arrows indicate that you can safely turn left while the oncoming traffic is still stopped at a red light. - Page 4 If you are aware that you have crossed a toll bridge on your journey, please inform us upon your RV return to avoid additional administrative charges. Fraserway RV will be billed directly by the company responsible for collecting the toll fee.
-
Page 5: Road Signs
SCHOOL BUSES Canadian school buses are yellow. They signal to stop all traffic (no passing!) using flashing red lights and/or a swing-out stop sign. It is against the law to pass a stopped school bus. All traffic must come to a halt to ensure children can get on and off the bus safely. -
Page 6: Cabin
CABIN All vehicles are equipped with an automatic transmission, power steering and power brakes. The engine is a 7.3 litres V8 with 350 horsepower. IGNITION SWITCH The ignition switch has 5 different key positions: POSITION A (ACCESSORY) allows you to use the vehicle's electrical system (radio etc.) without the engine running or the ignition being turned on. -
Page 7: Cruise Control
CRUISE CONTROL The vehicle is equipped with cruise control. It will only engage at a speed of minimum 50 km/h. Don’t use the cruise control in mountainous terrain. The increased shifting will lead to increased fuel consumption and could result in transmission damage. ④... - Page 8 The following must be ensured for the LCI Electronic Leveling System to work: 1. the engine of the motorhome must be running, 2. the parking brake must be engaged, 3. the slide-out must be retracted, 4. the RV must NOT be hooked up to external 110V power, 5.
-
Page 9: Radio/Back Up And Mirror Camera
RADIO/BACK UP AND MIRROR CAMERA Your RV is equipped with a Radio/Camera combination. The screen turns on automatically when you change into reverse gear (or operate the direction indicators). Momentarily press to turn the radio on or off, otherwise the ①... -
Page 10: Tires
OIL CHANGE INDICATOR LIGHT ILLUMINATES We change the engine oil every 12,000 km. There is a possibility that the oil change light in the dash will oil change is illuminate. An oil change might not be needed. The last recorded on a sticker on the windshield. Should an oil change be necessary, please call our On Road-Service to obtain information on authorized shops. -
Page 11: Vehicle Specifications
VEHICLE SPECIFICATIONS Motorhome class Class A Chassis Ford F53 Engine Eight-cylinder (V8) Roof air conditioner Microwave Convection oven Oven 3-point-seat belts at dinette Bathroom vent DVD player Rear dual tires Fuel-driven generator (gasoline) Side slide-out Rear slide out Beds Seat belts Fuel type Gasoline Engine oil type... -
Page 12: External View
EXTERNAL VIEW ⑥ ⑦ ⑨ ⑬ ② ① ③ ④ ⑤ ⑧ ⑩ ⑪ ⑫ 1. Storage compartments 10. Slide-out module & storage compartment 19. Exterior TV 2. Motor for stabilizers 11. Fuel tank (regular unleaded gas, Octane 87) 20. Coach battery compartment 3. -
Page 13: Electrical System
AWNING Your vehicle is equipped with an awning , which, like the corresponding light ① , is controlled via the integrated touch pad. The touch pad is located on the ② wall left of the bathroom door. IMPORTANT: Never use the awning in bad weather or in strong winds! ... - Page 14 LIGHTS SCREEN HOME SCREEN ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Tap the LIGHTS button on the HOME SCREEN button to reach the menu for the LIGHTS. Now you can control ① the lights: CARGO (Lights in storage compartments) BATH (Bathroom light) ②...
-
Page 15: Generator
12V PLUG-IN (BLADE-TYPE) FUSES Those fuses protect inside and outside lighting, water heater, water pump, heater fan, fans, bathroom vent, fridge and awning. If an appliance doesn’t work, a fuse might be blown. When the wire in the middle of the fuse is broken (see picture) you will need change the fuse. - Page 16 PLEASE DON’T USE THE GENERATOR WHILE THE RV IS IN MOTION! The generator is controlled via the integrated touch pad which is located on the wall left of the bathroom door. Turning the Generator ON 1. Turn off all electrical devices 2.
-
Page 17: Propane Tank
INTERIOR CONTROL PANEL Most of the electric functions in this RV are controlled via the integrated touch pad which is located on the wall left of the bathroom door. The HOME screen offers the following functions: ⑦ ⑧ ⑨ 1. Go to HOME screen 9. -
Page 18: Water System
Problem Cause/Solution Propane alarm is triggered or Immediately close the main valve on the propane tank. There may be a leak there is a smell of sulfur or in the system. Open doors and windows so that any propane can escape to rotten eggs inside the RV. - Page 19 Problem Cause/Solution Constant “snoring” 1. Water tank is empty. Please fill it. sound from the pump. 2. Lose connection in the water system. Please call our OnRoad-Service. CITY WATER CONNECTION You can connect your RV directly to the fresh water system of the campground using the provided water hose.
-
Page 20: Toilet
SHOWER The shower has a slider on the shower head itself what can be pushed in both directions. It stops the water flow from the shower head and helps save water while having a shower. Troubleshooting: Shower Problem Cause/Solution The water in the shower - The grey water tank is full. -
Page 21: Heating/Air Conditioning
The sewer pipes of the GREY and ① BLACK WATER tank converge below the chassis and lead to a ② JOINT DRAIN PIPE. ③ - NEVER leave the vehicle unattended while draining the wastewater tank. - Do not leave the drain valves permanently open, even if you have a permanent sewer connection, because this may lead to crusting and clogging in the black water tank. -
Page 22: Dinette Table/Bed Combination
Troubleshooting: Heater Problem Cause/Solution The heater blows only cold air. - The set temperature has already been reached - Main valve of propane tank is closed - Propane tank is empty - Fan setting is on LOW or HIGH, please turn to AUTO! If fridge and stove are working there is no problem with the propane supply! The heater fan does not start. -
Page 23: Microwave
Top burner and oven can be ignited electronically or with a lighter/match. Please follow instructions below. TOP BURNER/STOVE Turn the appropriate burner knob counter-clockwise to the flame symbol position. Immediately strike and ④ place a burning long match or butane lighter through the spaces in the grate near the burner ports. Alternatively, you can turn the ignition knob/spark clockwise repeatedly until the burner lights. - Page 24 KITCHEN TIMER 1. Press "KITCHEN TIMER " once, the screen will display 00:00, the first hour figure flash. 2. Press the number keys and enter the timer time. (The maximum cooking time is 99 minutes and 99 seconds.) 3. Press " START/+30SEC. " to confirm setting. 4.
- Page 25 POTATO 1. Press " POTATO " repeatedly until the number you wish appears in the display, "1", "2", "3" will display in order. "1"SET: 1 potato (approximate 8 Oz) / "2"SETS: 2 potatoes (approximate 16 Oz) "3"SETS: 3 potatoes (approximate). For example, press "POTATO" once, "1" appears. 2.
-
Page 26: Fridge
5. Press "START/ +30 SEC." to start cooking. LOCK FUNCTION FOR CHILDREN Lock: In waiting state, press " STOP/CANCEL " for 3 seconds, there will be a long "beep" denoting the entering into the children-lock state; meanwhile, screen will display " ". - Page 27 Manual AC Mode Operation - Touch and release the ON/OFF button to start the refrigerator. ① - Touch the MODE button until the AUTO icon goes off and only the AC PLUG icon remains lit. ③ ④ ⑤ - Touch the TEMP SET button as needed to set the temperature setting.
-
Page 28: Slide-Out
Problem Cause/Solution The temperature setting snow-flake(s) The thermistor has been sensed inoperable. The temperature is controlled via flash off/ on at 1 second intervals a backup operating system. Please call our OnRoad-Service at 1-866-535-6601. ⑧ anytime the user interface is “awake” We will make an appointment with a repair shop. - Page 29 The slide-out module is located in the top of the slide-out module ② & storage compartment on the driver’s side (see page 12, #10). Press the Mode button ① quickly six times in a row, and on the ① seventh time keep it pressed for 5 seconds. The red and green LEDs start flashing.
-
Page 30: Safety Equipment
SAFETY EQUIPMENT SMOKE DETECTOR/CARBON MONOXIDE ALARM Each RV is equipped with a combined carbon monoxide alarm/smoke detector. This alarm sounds if an excess carbon monoxide concentration (CO) is measured in the air. CO is a colourless and odourless gas, which can escape if, for example, there is a malfunction in the burner system. -
Page 31: Returning The Vehicle
Fraserway RV rental branch directly. This manual is (c) 2021 Fraserway RV LP, and all related marks, logos, and model names are owned by Adventurer Manufacturing LP and Fraserway RV LP, Inc. or its licensor(s). No portion of this manual may be copied, altered, published, displayed, broadcast, or otherwise used without the express permission of Fraserway RV LP, Inc.
