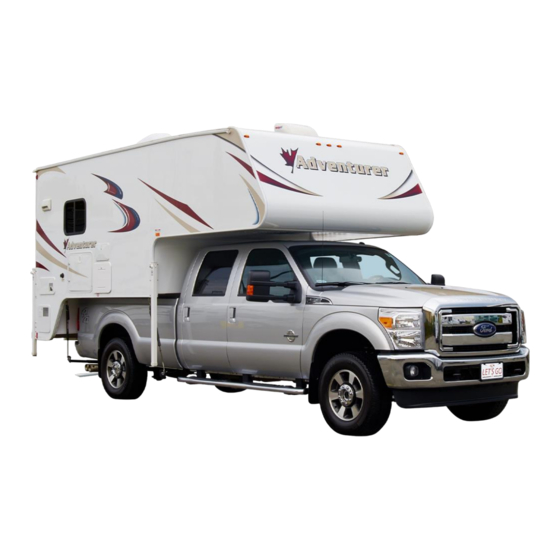

- Page 1 RV Type: Truck Camper Slide Dinette & Slide Bunk Instruction Manual ENGLISH...
-
Page 2: Table Of Contents
CANADIAN TRAFFIC RULES AND ROAD SIGNS ................2 ..................................2 RAFFIC ULES ..................................4 IGNS CABIN ............................5 ................................. 5 GNITION WITCH ..............................5 UTOMATIC RANSMISSION ................................5 IESEL NGINE RAKE TOW/HAUL ..................................5 .................................. 5 RUISE ONTROL & .......................... 6 MERGENCY RAKE BATTERY BOOST SWITCH... -
Page 3: Canadian Traffic Rules And Road Signs
CANADIAN TRAFFIC RULES AND ROAD SIGNS TRAFFIC RULES ALCOHOL AND DRUGS Permitted blood alcohol levels are mandated by the Provinces and Territories and will vary. Please do not drive under the influence of alcohol and/or drugs! TRAFFIC LIGHTS Traffic lights are suspended across the intersection. Left turn arrows indicate that you can safely turn left while the oncoming traffic is still stopped at a red light. - Page 4 If you are aware that you have crossed a toll bridge on your journey, please inform us upon return of the RV to avoid additional administrative charges. Fraserway RV will be billed directly by the company responsible for collecting the toll fee.
-
Page 5: Road Signs
traffic can move again in both directions. Failure to obey this traffic rule is a serious offence. Only if the road is separated by a median can the oncoming traffic slowly proceed without stopping. ROAD SIGNS One way street. Pedestrians are not allowed to cross the Crossing the road is only permitted at Do not enter. -
Page 6: Cabin
CABIN All vehicles are equipped with an automatic transmission, power steering and power brakes. The Ford F-350/F- 450 V8 engine displacement is 6.2 to 6.8 liters and an output of up to 440 hp. IGNITION SWITCH The ignition switch has 4 different key positions: Position 0 (OFF): The ignition is off. -
Page 7: Emergency Brake & Battery Boost Switch
EMERGENCY BRAKE & BATTERY BOOST SWITCH ① Emergency Brake: Push down with foot to engage emergency brake ② Brake release: Pull this lever to release the emergency brake ③ Battery Boost Switch Press and hold to start engine using camper battery (in case of dead engine battery). -
Page 8: Diesel Exhaust Fluid/Def
DIESEL EXHAUST FLUID/DEF To reduce diesel exhaust emissions, your vehicle is equipped with a catalytic converter that automatically injects "Diesel Exhaust Fluid" (DEF, in Europe "AdBlue") into the exhaust system. The DEF in your vehicle is ② topped up before the start of the rental. Nevertheless, refilling may become necessary. In this case, purchase DEF, which can be found at many gas stations or repair shops such as Napa. - Page 9 change a wheel if there is no way to contact us for assistance. Changing a wheel is at your own risk. The wheel nuts of the changed wheel must be checked after 100 kms or sooner and retightened if necessary. Failure to do so could cause serious accidents.
-
Page 10: Vehicle Specifications
VEHICLE SPECIFICATIONS Motorhome class Truck Camper Roof air conditioner Microwave Convection oven Oven 3-point-seat belts at dinette No! The camper is not approved for passenger transport. Bathroom vent DVD player Rear dual tires Depending on the chassis, your TC has dual tires. Propane-driven generator Fuel-driven generator (gas) Side slide-out... -
Page 11: External View Truck Camper Slide Dinette
EXTERNAL VIEW TRUCK CAMPER SLIDE DINETTE Fuel + Diesel Exhaust Fuel (DEF) tank Electric hook up 14. Furnace compartment (Caution: HOT!) Fridge vent cover Slide out 15. Propane bottles Freezer vent cover 10. Slide topper 16. Fresh water tank inlet Storage 11. -
Page 12: External View Truck Camper Slide Bunk
EXTERNAL VIEW TRUCK CAMPER SLIDE BUNK Fuel + Diesel Exhaust Fuel (DEF) tank Slide topper Propane bottles Fridge vent cover Kitchen hood outlet Battery compartment Freezer vent cover 10. Outside shower Freshwater tank Storage 11. Furnace compartment (Caution: HOT!) Access to wastewater valves and storage Sewer outlet 12. -
Page 13: Awning
AWNING Our vehicles are equipped with an awning. The control switches are located next to the entrance door. IMPORTANT: • Never use the awning in stormy weather or in strong winds! • The awning must be retracted overnight or when the RV is unattended. •... - Page 14 CONVERTER A power converter automatically converts 110V power to 12V power for use by 12V appliances. The converter is located in the fuse box. No manual operation is required as it is fully automatic. FUSES & FUSEBOX Fuses for the internal 12V or 110V power circuit are located in the fuse box at the main bed floor level.
-
Page 15: Water System
If used properly, propane use is very safe. Nevertheless, all our vehicles are equipped with a propane detector that triggers an alarm when an elevated concentration of propane is detected in the air. Propane is highly flammable and explosive. Therefore, please be sure to strictly follow the operating instructions for all propane-operated devices in the vehicle. - Page 16 WATER PUMP The water pump switch must have switched ON (illuminated in red) to draw water from the freshwater tank. The switch is on the battery and tank level panel. Please turn off the pump while driving, when not in use for a while or when the camper is connected to city water hook-up. This prevents overheating.
-
Page 17: Toilet
SHOWER The showers have a sliding button on the shower head (picture on the right) to control the water flow. The water flow can be stopped while taking a shower to save water and space in the grey water tank. Troubleshooting: Shower Problem Cause/Solution... -
Page 18: Heating
- NEVER leave the vehicle unattended while draining the wastewater tank. - Do not leave the drain valves open while the RV is connected to a permanent sewer drain at the site because this may lead to crusting and clogging in the black water tank. The renter is liable for any damage resulting from improper use of the system. -
Page 19: Cooking Area
COOKING AREA STOVE The stove elements burn propane. The burners have no safety valves. Propane flows when an element is turned up but is not aflame. Please always ensure elements are turned off when not in use and that the flames of the burners haven’t been extinguished by just a draft of air with propane escaping unnoticed. - Page 20 Troubleshooting: Fridge Problem Cause/Solution Display is on but fridge - Failure because RV is not parked level does not cool - Fridge is too full, air can’t circulate - Evaporator fins iced up, thermistor too high (colder) - Evaporator thermistor too low (warmer) ...
-
Page 21: Slide-Out
BYPASS THE THERMAL FUSE Turn off the fridge. Turn off the main power and the propane. Open fridge vent cover at the driver side. Unscrew and remove the metal silver burner box cover . There are the two red wires attached to the reset switch . One of the wires leads to the thermal fuse what is attached to lower fridge part. Remove the screw or metal tab and cut off the black fuse . -
Page 22: Dinette Table/Bed Combination (Truck Camper Slide Dinette)
DINETTE TABLE/BED COMBINATION (TRUCK CAMPER SLIDE DINETTE) The dining area can be converted into a bed. There is a lever under the tabletop that must be turned from ① right to left to unlock the table. The table can then be pushed down slightly between the seats and converted into a bed with the backrest cushions. -
Page 23: Safety Equipment
SAFETY EQUIPMENT SMOKE DETECTOR/CARBON MONOXIDE ALARM Each RV is equipped with a combined carbon monoxide alarm/smoke detector. This alarm sounds if an excess carbon monoxide concentration (CO) is measured in the air. CO is a colourless and odourless gas, which can escape if, for example, there is a malfunction in the burner system. -
Page 24: Returning The Vehicle
Fraserway RV rental branch directly. This manual is (c) 2021 Fraserway RV LP, and all related marks, logos, and model names are owned by Adventurer Manufacturing LP and Fraserway RV LP, Inc. or its licensor(s).
