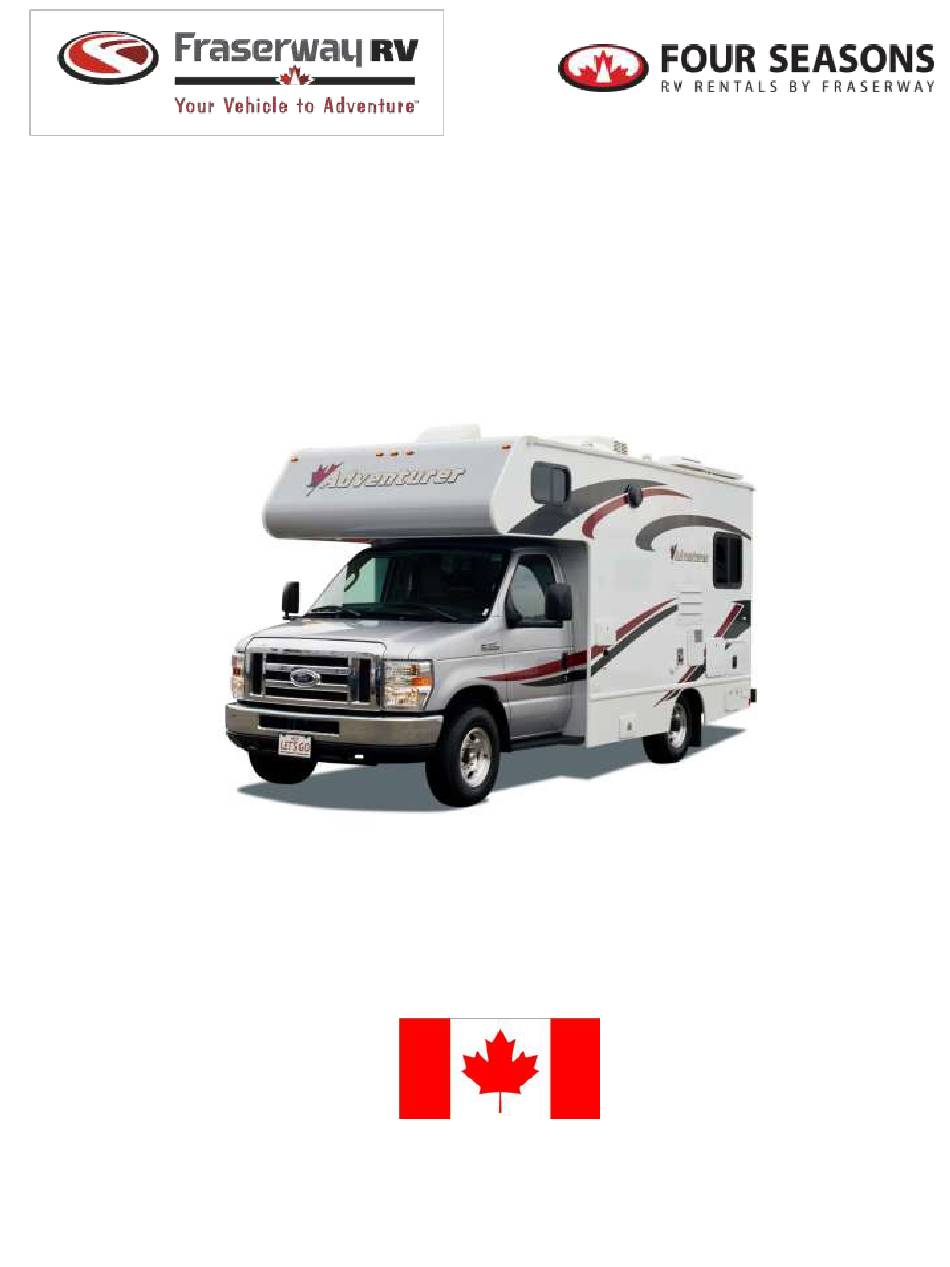

- Page 1 RV Type: C-Small Instruction Manual ENGLISH...
-
Page 2: Table Of Contents
CANADIAN TRAFFIC RULES AND ROAD SIGNS .................. 2 ..................................2 RAFFIC ULES ..................................... 4 IGNS CABIN ............................. 5 ..................................5 GNITION WITCH ................................5 ATTERY OOST WITCH ................................ 5 UTOMATIC RANSMISSION ) ................................5 VERDRIVE ..................................6 RUISE ONTROL ) ........................6 ARKING RAKE MERGENCY... -
Page 3: Canadian Traffic Rules And Road Signs
CANADIAN TRAFFIC RULES AND ROAD SIGNS TRAFFIC RULES ALCOHOL AND DRUGS Permitted blood alcohol levels are mandated by the provinces and territories. Please do not drive under the influence of alcohol and/or drugs! TRAFFIC LIGHTS Traffic lights are suspended across the intersection. Left turn arrows indicate that you can safely turn left while the oncoming traffic is still stopped at a red light. - Page 4 If you are aware that you have crossed a toll bridge on your journey, please inform us upon return of the RV to avoid additional administrative charges. Fraserway RV will be billed directly by the company responsible for collecting the toll fee.
-
Page 5: Road Signs
SCHOOL BUSES Canadian school buses are yellow. They signal to stop all traffic (no passing!) using flashing red lights and/or a swing-out stop sign. It is against the law to pass a stopped school bus. All traffic must come to a halt to ensure children can get on and off the bus safely. -
Page 6: Cabin
CABIN All vehicles are equipped with automatic transmission, power steering and power brakes. The V8 engine displacement is 5.4 litres and an output of 255 horsepower. IGNITION SWITCH The ignition switch has 5 different key positions: POSITION A (ACCESSORY) allows the electrical accessories such as the radio to operate while the engine is not running. -
Page 7: Cruise Control
CRUISE CONTROL The RV is equipped with Cruise Control. The minimum speed required for its use is 50 km/h. We do not recommend using Cruise Control on mountain roads because it would cause irregular shifting and accelerating resulting in excess transmission wear and increased fuel consumption. ①... -
Page 8: Tires
OIL CHANGE INDICATOR LIGHT ILLUMINATES We change the oil of our vehicles every 12,000 kms according to the manufacturer’s recommendation. The oil change light may illuminate earlier as it is programmed to a different schedule. The odometer reading of the oil change is last indicated on a sticker on the windshield. -
Page 9: Vehicle Specifications
VEHICLE SPECIFICATIONS Motorhome Class Class C – MH19RD Chassis Ford E350 Engine Eight (V8) Roof air conditioner Microwave Convection oven Oven 3-point-seat belts at dinette Bathroom vent DVD player Rear dual tires Generator Side slide-out Rear slide out Sleeps Seat belts Fuel type Gasoline Engine oil type... -
Page 10: External View
EXTERNAL VIEW ⑩ ⑨ ④ ⑧ ⑦ ⑥⑤③ ② ① 1. Storage compartments 8. Sewer flusher (please do not use!) 15. Porch light 2. Battery compartment 9. Bathroom vent 16. Back up camera 3. Water heater cover – caution: HOT! 10. -
Page 11: Electrical System
AWNING Our vehicles are equipped with an awning. The operating switches are located next to the entrance door. IMPORTANT: Never use the awning in stormy weather or in strong winds! The awning must be retracted when the RV is left unattended. ... - Page 12 Please do not overload the coach batteries. They cannot sufficiently recharge if they lose too much voltage. Once the charge has reached a very low level, the alternator can no longer recharge them simply by driving. In that case they must be recharged using the exterior power cable (110V) on the campground for at least 8 hours.
-
Page 13: Propane Tank
Troubleshooting: Power Supply Problem Cause/Solution No power from the power outlets - Vehicle is not connected to 110V - 110V power source at campground is not working - Broken power cord - Tripped breaker - Reset button tripped No power at all in the living area or - Main power switch is OFF (page 11, battery switch position) only when the engine is running - Coach battery level is too low and the batteries need to be charged by... -
Page 14: Water System
If used properly, propane use is very safe. Nevertheless, all of our vehicles are equipped with a propane detector that triggers an alarm when an elevated concentration of propane is detected in the air. Propane is highly flammable and explosive. Therefore, please be sure to strictly follow the operating instructions for all propane-operated devices in the vehicle. - Page 15 Troubleshooting: Freshwater Tank Problem Cause/Solution Freshwater tank Be sure not to confuse the freshwater tank inlet (passenger side) with the city water remains empty connection or the sewer flush (both at the driver side). The freshwater tank does not despite refilling. automatically refill through the city water connection but must be refilled separately.
- Page 16 3. Connect the other end of your water hose to the water pressure regulator and the regulator to the water tap of the camp site when the water pressure is 40 PSI or higher. If the pressure is lower than 40 PSI, connect the other end of the hose directly to the tap.
-
Page 17: Toilet
OUTSIDE SHOWER Only biodegradable shower gels and shampoos are permitted for outside shower use. These products are available at outdoor and camping stores. Please consider the environment and follow these rules. TOILET CHEMICALS The use of chemicals in the black water tank prevents clogging and ensures thorough drainage. The chemicals deodorize and decompose waste. -
Page 18: Heating/Air Conditioning
Troubleshooting: Wastewater Tanks Problem Cause/Solution The RV is hooked up to the city water You accidentally connected the water hose to the sewer flush. connection and water comes out of the toilet Turn off the water and connect the hose to the "City Water" and/or the ventilation pipe on the roof. -
Page 19: Dinette Table/Bed Combination
Problem Cause/Solution - Empty coach batteries. The heater fan does not start. - Loose wire/contact in thermostat. Please call our OnRoad-Service. - Sail switch needs to be cleaned, please call our OnRoad-Service at Furnace fan comes on and shuts off after 20-30 seconds 1-866-535-6601 for further instruction. - Page 20 CONTROLS AT A GLANCE ① Time Defrost ② Time Cook ③ Power ④ Number Keys ⑤ Stop/Cancel: Clears all previous settings pressed before cooking starts. During cooking: press once to stop oven; twice to stop and clear all entries. ⑥ Weight Defrost ⑦...
- Page 21 WEIGHT DEFROST FUNCTION 1. Press " WEIGHT DEFROST "once, the screen will display "dEF1". 2. Press numerical buttons to input weight to be defrosted. Input the weight ranged between 4~100 Oz. 3. Press " START/+30SEC. " to start defrosting and the cooking time remained will be displayed. TIME DEFROST FUNCTION 1.
-
Page 22: Fridge
The steps are as follow: a. In waiting states, press "0/MEMORY" twice, stop pressing until the screen displays "2". b. Press "TIME COOK" once, then press "3", "2", "0" in order. c. Press "POWER" once, "PL10" displays, then press "8" and "PL8" displays. d. - Page 23 The control panel for your fridge is located above the freezer: ① ③ ⑤ ② ④ ⑥ ⑦ ⑧ ① ON ②OFF ③Battery mode ④110V mode ⑤ Automatic mode ⑥Propane mode ⑦ Check light/failure ⑧Temperature control Troubleshooting: Fridge Problem Cause/Solution - Failure because RV is not parked level Display is on but fridge - Fridge is too full, air can’t circulate...
- Page 24 FRIDGE RESET If your fridge does not cool, and neither the display nor the interior of the fridge is illuminated, please first check if the problem can be solved by resetting the fridge. To do this, follow these steps: 1. Turn off the fridge. 2.
-
Page 25: Safety Equipment
SAFETY EQUIPMENT SMOKE DETECTOR/CARBON MONOXIDE ALARM Each RV is equipped with a combined carbon monoxide alarm/smoke detector. This alarm sounds if an excess carbon monoxide concentration (CO) is measured in the air. CO is a colour- and odourless gas, which can escape if, for example, there is a malfunction in the burner system of a stove, oven or furnace. -
Page 26: Returning The Vehicle
Fraserway RV rental branch directly. This manual is (c) 2021 Fraserway RV LP, and all related marks, logos, and model names are owned by Adventurer Manufacturing LP and Fraserway RV LP, Inc. or its licensor(s).
