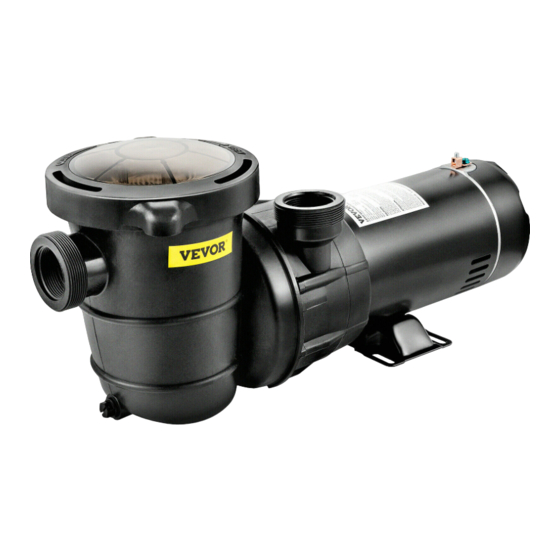

- Page 1 SINGLE SPEED POOL PUMP USER MANUAL...
- Page 2 VVPS115BUS(1.5THP 115V) VVPS120BUS(2.0THP 115V) Instruction Manual NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: CustomerService@vevor.com IMPORTANT : Be sure to review the contents of this manual before attempting to operate the equipment.
-
Page 3: Main Parts
MAIN PARTS PARTS 6.Drain Plug 1.Lid & Clamp Ring 7.Diffuser O-Ring 2.O-Ring 11.Impeller 12.Pump Housing 3.Strainer 8.Bolts 9.Diffuser 4.Clip-Bayonet 13.Motor 10.Pump Housing O-Ring 5.Strainer body 14.Shaft Seal INSTALLATION READ CAREFULLY AND SAVE THIS INSTRUCTION MANUAL ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO THE END-USER OF THIS PRODUCT. - Page 4 The following information is very important for safety in handling this product. Be sure to observe it. Indicates an imminently hazardous situation that, if not avoided, will result DANGER in death or serious injury. Indicates a potentially hazardous situation that, if not avoided, could WARNING result in death or serious injury.
- Page 5 CAUTION All electrical wiring must be in conformance with applicable local codes, regulations, and the National Electric Code (NEC). It is strongly advised to protect the electrical components from direct sunlight though this pump is designed for outdoor use. Place this pump in a well-drained area, one that will not flood when it rains. If installed within an outer enclosure or beneath the skirt of a hot tub or spa, adequate ventilation and free circulation of air must be provided to prevent overheating.
- Page 6 12.01"(305mm) 12.76"(324mm)
- Page 7 Pump discharge port can be turned to horizontal: • Remove pump lid and Strainer. • Remove clip-bayonet (part# 4 in the parts list). • Remove the pump strainer body from the pump housing. • Unscrew the 8 bolts. • Turn the discharge port to be horizontal. •...
-
Page 8: Troubleshooting
PRIMING Fill strainer housing with water to suction pipe level. If water leakage occurs anywhere on the pump or filter, DO NOT start the pump. If no leakage occurs, stand at least 10 feet from the pump and/or filter and proceed with starting the pump. TROUBLE SHOOTING MOTOR WILL NOT START •... - Page 9 TROUBLE SHOOTING(CONTINUED) LOW FLOW • Clogged or restricted strainer or suction line; undersized pool piping. • Plugged or restricted discharge line or filter, valve partially closed (high gauge reading). How to correct: Backwash strainer as per manufacturer’s instructions; • Air leak in suction piping causing rumbling in the pump. •...
- Page 10 E-mail: CustomerService@vevor.com...
