Technical Support and E-Warranty Certificate
www.vevor.com/support
SWIMMING POOL PUMP
OPERATION MANUAL
MODEL: HBP750II / HBP1100II / HBP1500II
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR HBP750II
Summary of Contents for VEVOR HBP750II
- Page 1 SWIMMING POOL PUMP OPERATION MANUAL MODEL: HBP750II / HBP1100II / HBP1500II We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
-
Page 2: Swimming Pool Pump
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product. -
Page 3: Safety Instructions
Warning-To reduce the risk of injury, user must read instructions manual carefully. This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. - Page 4 WARNING – Risk of Electric Shock. Hazardous voltage can shock, burn, or cause death. To reduce the risk of electric shock, do NOT use an extension cord to connect unit to electric supply. Provide a properly located outlet. It is required that licensed electricians do all electrical wiring.
- Page 5 WARNING – Suction Entrapment Hazard. Suction in suction outlets and/or suction outlet covers, which are damaged, broken, cracked, missing, or unsecured cause severe injury and/or death due to the following entrapment hazards: Hair Entrapment- Hair can become entangled in suction outlet cover. Limb Entrapment- A limb inserted into an opening of a suction outlet sump or suction outlet cover that is damaged, broken, cracked, missing, or not securely attached can result in a mechanical bind or swelling of the limb.
- Page 6 - In addition to two or more suction outlets per pump installed in accordance with latest IAF (formerly NSPI) standards and CPSC guidelines, follow all national, state, and local codes applicable. - Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended.
- Page 7 WARNING – Never operate or test the circulation system at more than 40 PSI. WARNING – Fire and burn hazard. Motors operate at high temperatures and if they are not properly isolated from any flammable structures or foreign debris they can cause fires, which may cause severe personal injury or death.
- Page 8 Key NO Description Key NO Description Mechanical seal O-Ring O-Ring Basket Bracket cover Drain plug Flat Mat O-Ring Spring washer Pump body Screw Plastic basement O-Ring Support Diffuser Motor Impeller Earthing Terminal Pool Pump Wiring Diagram - 7 -...
-
Page 9: Specification Parameter
SPECIFICATION PARAMETER Model HBP750II HBP1100II HBP1500II Input AC110V-240V 60Hz Max power 1.0 HP 1.5 HP 2 HP Q max 80 GPM 100 GPM 110 GPM H max 10.5 m 15.5 m 18 m Max Suction 1.5m Operating temperature 0-50℃ (32-122℉) Hose joint 1.5 "NPT internal thread /2.5"... -
Page 10: Pipe Sizing Chart
Pump mount must: Allow pump inlet height to be as close to water level as possible. Allow use of short, direct suction pipe (to reduce friction losses). Allow for gate valves in suction and discharge piping. Be protected from excess moisture and flooding. Allow adequate access for servicing pump and piping. - Page 11 damage. If leaks occur, remove connector, clean off old Teflon tape, re-wrap with one to two additional layers of Teflon tape, and re-install connector. Fittings Fittings restrict flow. For better efficiency, use the fewest possible fittings (but at least two suction outlets). Avoid fittings that could cause an air trap. Pool and spa fittings MUST conform to the International Association of Plumbing and Mechanical Officials (IAPMO) standards.
- Page 12 when motor is running at full load, consult Power Company. Grounding And Bonding Install, ground, bond, and wire motor in accordance with local or national electrical code requirements. Permanently ground motor. There is an earthing wire on the back cover of each pump.
-
Page 13: Start-Up And Operation
START-UP & OPERATION Prior to Start-Up Notice: If it is necessary to perform a pressure test, prior to initial use to ensure pump is functioning properly, then the following criteria should be maintained for this test: 1. Have a professional perform this test. 2. -
Page 14: Priming Pump
Priming Pump CAUTION – All suction and discharge valves MUST be OPEN, as well as filter air relief valve (if available) on filter, when starting the circulating pump system. Failure to do so could result in severe personal injury. Release all pressure from filter, pump, and piping system. See filter owner’s manual. -
Page 15: Storing Pump For Winterization
See “Shaft Seal Change Instructions” in this manual. Storage/Winterization WARNING – Separation Hazard. Do not purge the system with compressed air. Purging the system with compressed air can cause components to explode, with risk of severe injury or death to anyone nearby. Use only a low pressure (below 5 PSI), high volume blower when air purging the pump, filter, or piping. - Page 16 Shaft Seal Change Instructions IMPORTANT SAFETY INSTRUCTIONS PLEASE READ AND FOLLOW ALL INSTRUCTIONS When servicing electrical equipment, basic safety precautions should always be observed including the following. Failure to follow instructions may result in injury. WARNING – To reduce risk of injury, do not permit children to use this product.
- Page 17 Motor Shuts OFF – Check For: 1. Low voltage at motor or power drop (frequently caused by undersized wiring or extension cord use). Solution: Contact qualified professional to check that the wiring gauge is heavy enough. NOTE Your pump motor is equipped with an “automatic thermal overload protector.”...
- Page 18 vacuum gauge). You may be able to check by removing the skimmer basket and holding your hand over the bottom port with skimmer full and pump running. If no suction is felt, check for line blockage. a. If pump develops a vacuum, check for blocked suction line or dirty strainer basket.
- Page 19 Solution: Correct suction condition or throttle return lines, if practical. Holding hand over return fitting will sometimes prove this point or putting in a smaller eyeball fitting. 2. Vibration due to improper mounting, etc. Solution: Mount the pump on a level surface and secure the pump to the equipment pad.
- Page 20 Technical Support and E-Warranty Certificate www.vevor.com/support...
Need help?
Do you have a question about the HBP750II and is the answer not in the manual?
Questions and answers

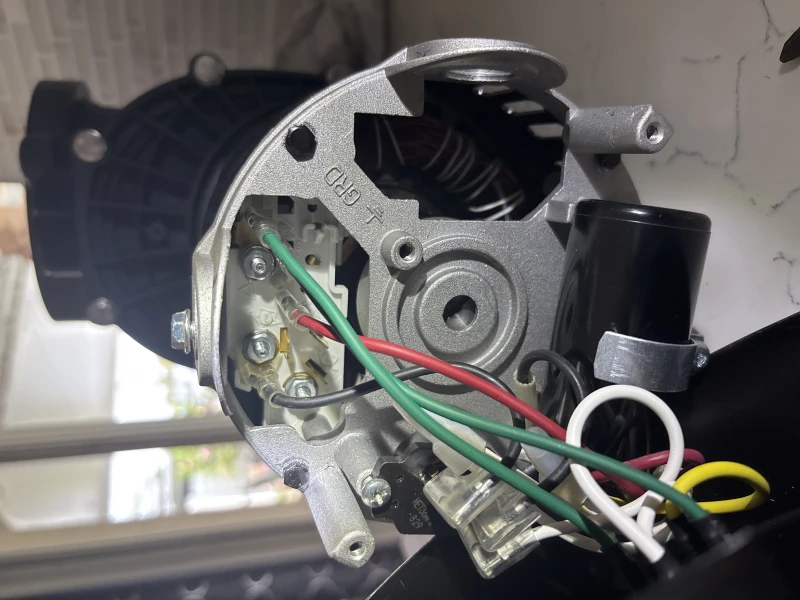

I just got the pump. It is set for 110 V. I wanna go 220 the switch on the back when I put it to 230. I’m pretty sure that inside on the 110 you have the wire number one and two hook up for 110 V. I believe I may have to use the number one and number three for the 220 V or do I keep it still on one and two because of the switch on the back of the motor
To correctly configure the VEVOR HBP750II pump for 220V operation:
1. Open the terminal box on the motor.
2. Check the wiring diagram inside the terminal box.
3. Ensure that the terminal board connections match the diagram for 220V setup.
4. Make sure the motor is wired for the available field supply voltage (220V as required).
5. Confirm all wiring connections are tight and correct.
Only qualified personnel should perform wiring.
This answer is automatically generated
My HBP75011 is set to 115 and has the 3 prong plug like for 125 v. My power comes from a 30 amp 230v fuse box with 12 ga wire . My old pump was fed by this and internal lugs in the back of pump motor ( which was 230/115 as well) had wires set to 115. Do I need a transformer to reduce the 230 power before adding a receptacle and plugging the 75011 in, or will the motor make the reduction switch from 230v ?
Is there a way to bypass the internal timer circuit so that the motor is always on when power is applied using an external timer.
