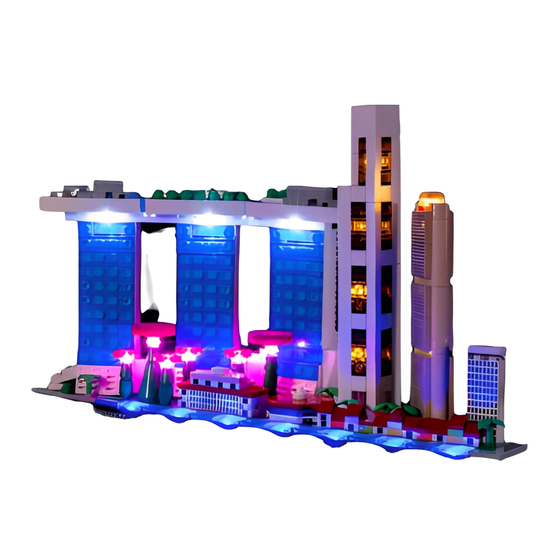

LEGO® SINGAPORE #21057
LIGHT KIT
INSTALLATION GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 21057 and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT MY BRICKS 21057

Summary of Contents for LIGHT MY BRICKS 21057

  • Page 1 LEGO® SINGAPORE #21057 LIGHT KIT INSTALLATION GUIDE...
  • Page 2 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Light My Bricks LEGO SINGAPORE 21057 INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO Singapore 21057 Light Kit. This PDF details the instructions for the LED light kit only. If you are wishing to purchase this product, please click here to view the product page.
  • Page 3 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE ASSORTED BRICKS: PACKAGE CONTENTS: • 6x 1x1 Round Plate - Trans Clear 8x Micro Blue 15cm Bit Light * 6x Micro White 15cm Bit Light * 3x Cool White 15cm Bit Light 6x Pink 30cm Bit Light...

  • Page 4: Table Of Contents

    LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Contents Before You Begin Blueprint Instructions Final Product Troubleshooting Contact CONTENTS...

  • Page 5: Before You Begin

    LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing Take extra care when inserting connectors they are laid correctly between the to ports of Expansion Boards.
  • Page 6 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
  • Page 7 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO®...

  • Page 8: Blueprint

    LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE BLUEPRINT INSTRUCTIONS...

  • Page 9: Instructions

    LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. INSTRUCTIONS...
  • Page 10 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE For the following steps, use a LEGO Brick Separator or similar pry tool to help you remove bricks CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON...
  • Page 11 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Lay all of the parts in order like shown to easily organise them Micro Blue 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON...
  • Page 12 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Micro Blue 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 13 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Micro Blue 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 14 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Micro Blue 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 15 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Micro Blue 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 16 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Micro Blue 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 17 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Grab all the Micro Blue 15cm Bit Light 8-Port Micro Expansion Board cables aside from the far left one and plug them into the 8-Port Micro Expansion Board as shown 5cm Connecting Cable...
  • Page 18 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 19 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Pink 30cm Bit Light 1x1 Round Plate - Trans Clear 1x1 Round Plate - Trans Clear CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT...
  • Page 20 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Pink 30cm Bit Light Pink 30cm Bit Light 1x1 Round Plate - Trans Clear CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 21 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE 1x1 Round Plate - Trans Clear CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 22 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE 15cm Connecting Cable 6-Port Expansion Board CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 23 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 24 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Cool White 15cm Bit Light Cool White 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 25 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Cool White 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 26 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Connect the Cool White 15cm Bit Lights from the left two buildings and plug them into the left 6-Port Expansion Board CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
  • Page 27 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Ensure the left 6-Port Expansion Board is placed in the gap so the cover can close CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT...
  • Page 28 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 29 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Lay all of the parts in order like shown to clearly organise them to put back on later CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON...
  • Page 30 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Micro White 15cm Bit Light Micro White 15cm Bit Light Micro White 15cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 31 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Plug the two longest cables from the tower into the Micro 8-Port Expansion Board CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 32 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 33 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 34 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE 2x Adhesive Squares 2x Adhesive Squares CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 35 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).

  • Page 36: Final Product

    LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE FINAL PRODUCT This finally completes installation of the Light My Bricks LEGO Singapore 21057 Light Kit. FINAL PRODUCT...

  • Page 37: Troubleshooting

    LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that My Bricks set, watch our...
  • Page 38 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Troubleshooting Firstly, ensure that the Check For CR2032 Batteries batteries have power using a Using The Flat Battery Pack battery charge gauge. Inside the battery pack is a symbol indicating which side the (round) CR2032 If the batteries have no power, battery should be inserted.
  • Page 39 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Troubleshooting Check For Cr2032 Batteries Check for AA batteries Using The Round Battery using the AA battery pack Pack Inside the battery pack are symbols indicating which direction the AA battery Inside the battery pack is a symbol indicating should be inserted.
  • Page 40 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO® bricks, the light will not operate.
  • Page 41 LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports...

  • Page 42: Contact

    LEGO SINGAPORE 21057 LIGHT KIT INSTALL GUIDE CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here.
