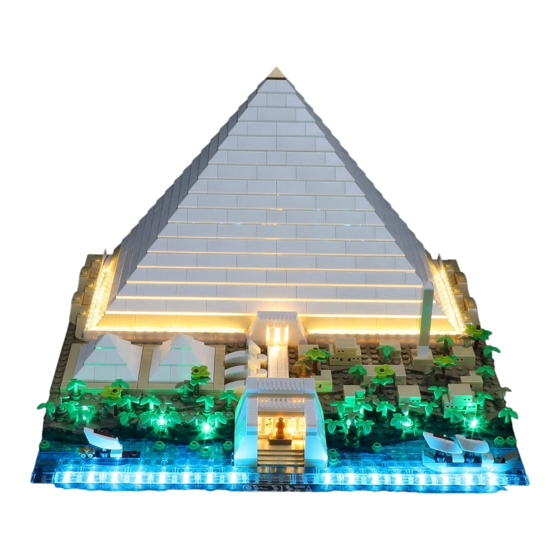

LEGO® GREAT PYRAMID OF GIZA
#21058 LIGHT KIT
INSTALLATION GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 21058 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LIGHT MY BRICKS 21058

Summary of Contents for LIGHT MY BRICKS 21058

  • Page 1 LEGO® GREAT PYRAMID OF GIZA #21058 LIGHT KIT INSTALLATION GUIDE...
  • Page 2 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Light My Bricks LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO Great Pyramid of Giza 21058 Light Kit.
  • Page 3 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE ASSORTED BRICKS: PACKAGE CONTENTS: • 6x Plate 1x1 Mod Rounded w Handle - Black 2x Large Blue Bit Light 30cm • 6x Round Plate 1x1 Open Stud - Black 2x Green Bit Light 30cm •...

  • Page 4: Table Of Contents

    LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Contents Before You Begin Blueprint Instructions Final Product Troubleshooting Contact CONTENTS...

  • Page 5: Before You Begin

    LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing Take extra care when inserting connectors they are laid correctly between the to ports of Expansion Boards.
  • Page 6 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
  • Page 7 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed).

  • Page 8: Blueprint

    LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE BLUEPRINT INSTRUCTIONS...

  • Page 9: Instructions

    LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide.
  • Page 10 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Plate 1x1 Mod Rounded w/ Handle - Black Large Warm White Bit Light 30cm 1x1 Round Plate Open Stud - Black CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID...
  • Page 11 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Tile 1x1 W Clip Round Edges - Black Green Bit Light 30cm 1x1 Round Plate Open Stud - Black Tile 1x1 - Black CONNECT / Legend DISCONNECT TURN / FLIP...
  • Page 12 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Plate 1x1 Mod Rounded w/ Plate 1x2 MW Stud Jumper - Handle - Black Black Plate 1x1 - Black Tile 1x1 W Clip Round Edges - Black Plate 1x2 MW Stud Jumper -...
  • Page 13 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Orange Bit Light 30cm Round Plate 1x1 - Trans Orange CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 14 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Large Blue Bit Light 30cm 1x1 Round Plate Open Stud - Black CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 15 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Plate 1x2 MW Stud Jumper - Black Plate 1x1 Mod Rounded w/ Handle - Black Tile 1x1 W Clip Round Edges - Black CONNECT / Legend DISCONNECT TURN / FLIP...
  • Page 16 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Connect the 5cm Connecting Cable Orange Bit Light Cable from the boat to the 6-Port Expansion Board Tile 1x1 - Black Flicker Effects Board Connect the 5cm 5cm Connecting Cable Connecting Cable into the “OUT”...
  • Page 17 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Use the second Large Warm White LED Spotlight CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 18 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Take the second Green LED Spotlight Tile 1x1 - Black Take the second Large Blue LED Spotlight CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
  • Page 19 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Take the Green and Large Blue Spotlight cables on the left side Tile 1x1 - Black 6-Port Expansion Board Take the Green and Large Blue Spotlight cables on the right side...
  • Page 20 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Connect the 5cm Connecting Cable other end of the 5cm Connecting Cable to second 6-Port Expansion Board from Step 11 (the one connected to the ‘IN’ port of the Flicker...
  • Page 21 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 22 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Perform the same action as before with this larger panel from te far right side Lift up the LEGO panel from from underneath by pressing and prying upwards CONNECT /...
  • Page 23 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Orange Bit Light 30cm Round Plate 1x1 - Trans Orange CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 24 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Orange Bit Light 30cm Round Plate 1x1 Open Stud - Trans Orange Wave Rounded Small with Pin (Candle Flame) Remove the inner pyramid section by lifting it from its corners and...
  • Page 25 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Orange Bit Light 30cm Round Plate 1x1 - Trans Orange CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
  • Page 26 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Lift up the middle section slightly by pressing from underneath to make a small gap Large Orange Bit Light 30cm Grab the Orange Plate 2x2 w Rounded Bottom – Bit Light cable and...
  • Page 27 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Thread both the cables in the gap as far as they can go and place the panel back on top Press back down the separated middle section carefully with the cables in...
  • Page 28 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Plug in the two cables to both of the “OUT” ports on the Flicker Effects Board 2x Adhesive Square Take the remaining Orange Bit Light and Orange Large Bit Light from...
  • Page 29 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Connect the other end to a 5V USB Power Bank, 5V USB Wall Adaptor, or USB to AA Battery Pack (sold separately) CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL...
  • Page 30 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).

  • Page 31: Final Product

    LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE FINAL PRODUCT This finally completes installation of the Light My Bricks LEGO Great Pyramid of Giza 21058 Light Kit. FINAL PRODUCT...

  • Page 32: Troubleshooting

    LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that...
  • Page 33 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Troubleshooting Firstly, ensure that the Check For CR2032 Batteries batteries have power using a Using The Flat Battery Pack battery charge gauge. Inside the battery pack is a symbol indicating which side the (round) CR2032 If the batteries have no power, battery should be inserted.
  • Page 34 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Troubleshooting Check For Cr2032 Batteries Check for AA batteries Using The Round Battery using the AA battery pack Pack Inside the battery pack are symbols indicating which direction the AA battery Inside the battery pack is a symbol indicating should be inserted.
  • Page 35 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO® bricks, the light will not operate.
  • Page 36 LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit,...

  • Page 37: Contact

    LEGO GREAT PYRAMID OF GIZA 21058 LIGHT KIT INSTALL GUIDE CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here.
