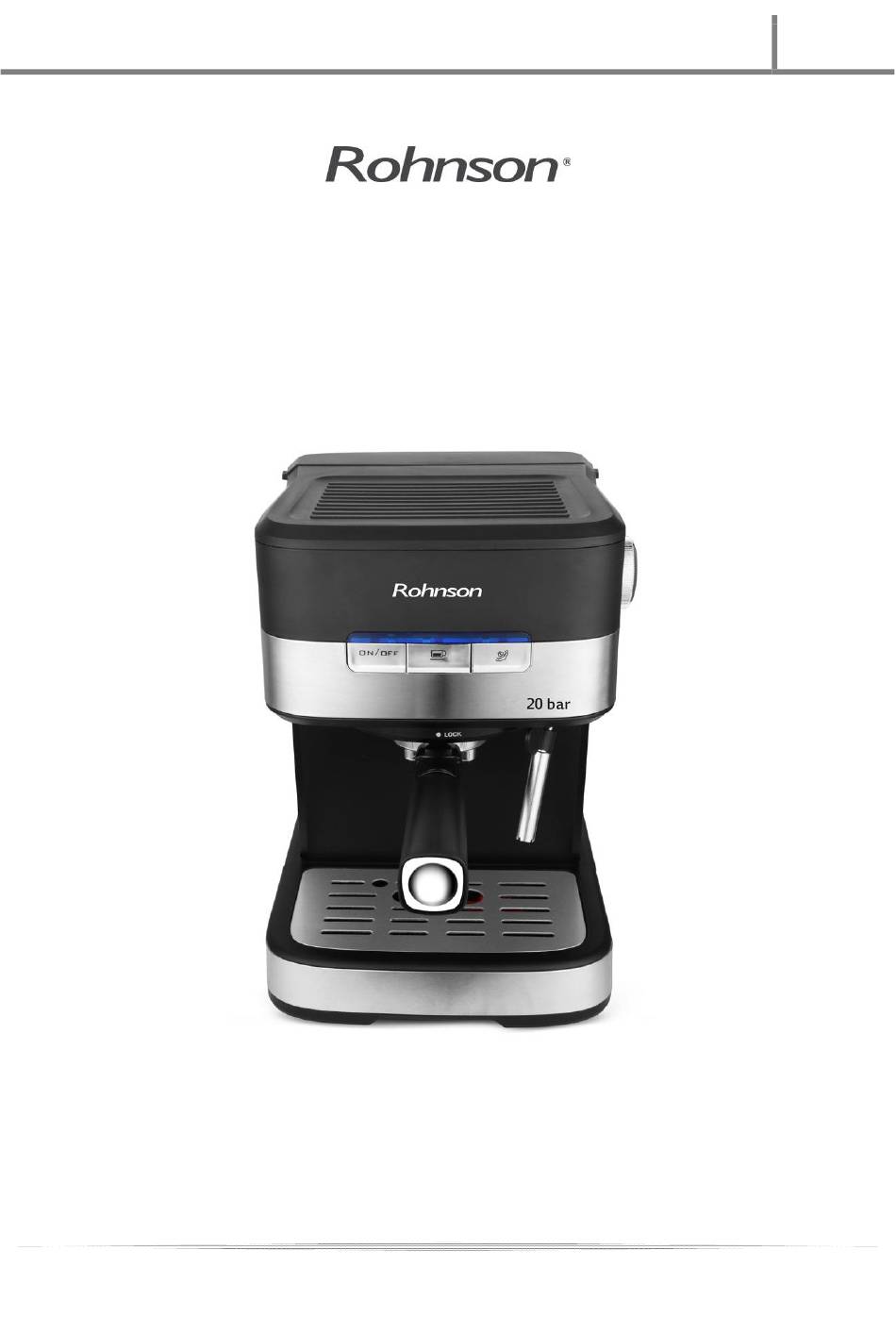

- Page 1 Espresso maker R-990 Instructions Manual Espresso Maker R-990 READ ALL THE INSTRUCTIONS BEFORE USING AND SAVE THEM FOR FUTURE REFERENCE.
-
Page 2: Important Safeguards
Espresso maker R-990 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: • Read all instructions before using the machine. •... - Page 3 Espresso maker R-990 • Do not place this appliance on or near a hot gas or electric burner or in a heated oven. • To disconnect, remove plug from wall outlet. Always hold the plug. But never pull the cord.
- Page 4 Espresso maker R-990 − staff kitchen areas in shops, offices and other working environments − farm houses − by clients in hotels, motels and other residential type environments − bed and breakfast type environments • If you cut off power during steam release, residual heat will make product continue to release steam for a length of time, the product will stop releasing steam immediately once you turn off steam knob。...
-
Page 5: Before The First Use
Espresso maker R-990 Coffee indicator Power switch Power indicator Steel mesh Press bar Funnel handle 10. Base 11. Drip plate 12. Drip tray 13. Drip tray deco piece 14. Top cover 15. Tank handle 16. Tank cover 17. Water tank 18. - Page 6 Espresso maker R-990 2. Set steel mesh into metal funnel (no coffee in steel mesh). 3. Place an jug on removable shelf. Make sure the steam control knob is on the OFF position. Note: the appliance is not equipped with jug, please use yourself jug or coffee cup.
- Page 7 Espresso maker R-990 4. Then connect the appliance to power supply. Make sure the steam control knob is on the OFF position. 5. Press the power switch “ ” one time, the power indicator turns on and the coffee indicator blinks. After finish preheating, the coffee indicator lights solidly.
- Page 8 Espresso maker R-990 WARNING: Do not leave the coffee maker unattended during making the coffee, as you need operate manually sometimes! 5. After finishing making the coffee, you can take the metal funnel out through turn clockwise, then pour the coffee residue out with the steel mesh pressed by press bar.
- Page 9 Espresso maker R-990 *Nespresso® Original is a third party trademark, not connected to Vassilias 2. Insert the holder into the metal funnel handle. Note: To insert the holder into the handle, make sure that the arrow on the lid is aligned with the group notch.
- Page 10 Espresso maker R-990 When the preheating is finished, the coffee indicator lights up solidly. Then press the coffee switch, and the water pump starts to pump water. Turn the knob to “Hot water”, and then hot water will flow out of the steam pipe. To stop making hot water, press the coffee switch again.
-
Page 11: Automatic Power Off Function
Espresso maker R-990 Note: Never turn the steam control button rapidly, as the steam will accumulate rapidly in short time which may increase the potential of the risk of explosion. 8. Insert the frothing device into the milk about two centimetre, froth milk in the way moving vessel round from up to down. -
Page 12: Cleaning And Maintenance
Espresso maker R-990 After finish preheating, hold and press double cup coffee switch and steam switch for 3 seconds at the same time, and their corresponding indicators will blink for 3 times, then the factory reset is finished. CLEANING AND MAINTENANCE: 1. - Page 13 Espresso maker R-990 4. According to the program of pre-heating, put the metal funnel (no coffee powder in it) and jug in place. Brewing water per “ PRE-HEATING”. 5. Press the Power switch one time, its red lamp will be illuminated, you should...
-
Page 14: Troubleshooting
Espresso maker R-990 TROUBLESHOOTING Symptom Cause Corrections The descaler is not Use the descaler The metal parts in the recommended type. It may recommended by tank have rust. corrode the metal parts in the manufacturer. tank. There is much water in the drip Please clean the drip tray. - Page 15 Espresso maker R-990 The power outlet is not plugged Plug the power cord into a well. wall outlet correctly, if the The coffee maker appliance still does not work, cannot work anymore. please contact with the authorized service facility for repairing.
- Page 16 Espresso maker R-990 It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health, deriving form inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.
