Summary of Contents for IVY DESIGN Blackboard Table

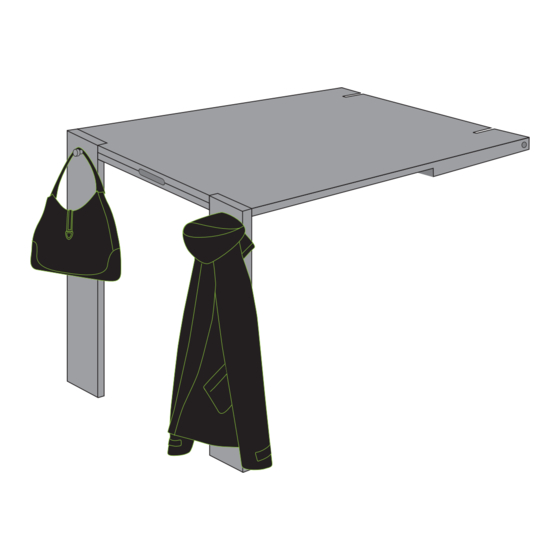

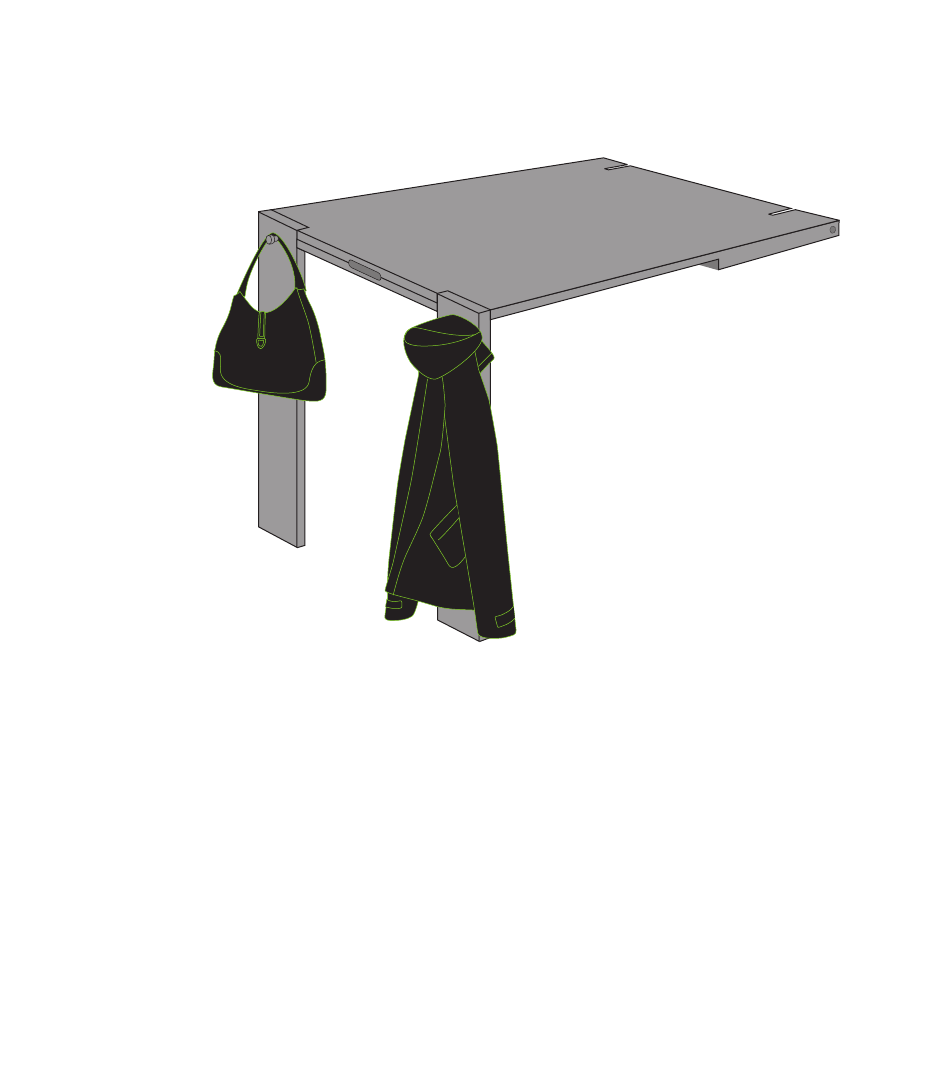

  • Page 1 All manuals and user guides at all-guides.com Blackboard Table...
  • Page 2: Montage

    All manuals and user guides at all-guides.com Mounting Montage...
  • Page 3 All manuals and user guides at all-guides.com 2 cm Drill holes for the upper and lower mounts. Attach the lower wall mount in a horizontal position to the wall and mark the drill holes. Bohren Sie die Löcher für die obere und untere Wandhalterung. Halten Sie die untere Wandhalterung waagrecht an die Wand um die Bohrlöcher zu markieren.
  • Page 4 All manuals and user guides at all-guides.com Screw the upper and lower wall mount with suitable screws and anchor bolts to the wall. Befestigen Sie mit passenden Schrauben und Dübeln die obere und untere Wandhalterung.
  • Page 5 All manuals and user guides at all-guides.com Merge the recess of the table top and the lower wall mount. Screw in one bolt on each side. Allan key is required. Fügen Sie Schlitze der Tischplatte mit den Laschen der Wandhalterung zusammen. Fixieren Sie diese dann beidseitig mit den mitgelieferten Bolzen.
  • Page 6 All manuals and user guides at all-guides.com To lock the table legs insert the bolts on either side of the table. The bolts will serve you as clothes hooks. Um die Tischbeine zu arretieren, müssen die beiden Stahlstifte, die als Kleiderhaken dienen, positioniert werden...
  • Page 7 All manuals and user guides at all-guides.com Now the Blackboard Table is locked and now ready to use. Der Blackboard Tisch ist gesichert und kann jetzt benützt werden.
  • Page 8 All manuals and user guides at all-guides.com Manual Handhabung...
  • Page 9 All manuals and user guides at all-guides.com Before folding up the Blackboard Table remove the bolts. Bevor der Blackboard Table nach oben geklappt wird, müssen die Stahlstifte entfertnwerden.
  • Page 10 All manuals and user guides at all-guides.com Lift up the table. Heben Sie den Tisch an.
  • Page 11 All manuals and user guides at all-guides.com Lift the table until it‘s parallel to the wall. Heben Sie den Tisch bis die Tischfläche parallel zur Wand positioniert ist.
  • Page 12 All manuals and user guides at all-guides.com Rotate the metal support into the hollow at the table edge. Drehen Sie die Metallhalterung in die Führung an der Tischkante.
  • Page 13 All manuals and user guides at all-guides.com Plant the metal support in a vertical position. Richten Sie die Metallhalterung vertikal aus.
  • Page 14 All manuals and user guides at all-guides.com Ready to go! Fertig!
  • Page 15 All manuals and user guides at all-guides.com Enjoy your Blackboard Table Viel Freude mit deinem Blackboard Tisch...
