LumenRadio W-Modbus Manual

MANUAL W-Modbus and W-Modbus PRO
APPLICATION AREA
The W-Modbus product transmits Modbus RTU frames wirelessly. It is de-
signed to be used indoors as a Modbus RTU cable replacement.
GENERAL
All relevant personnel must acquaint themselves with these instructions
before installation. Warranty is subject to void if the product is not hand-
led accordingly with the outlined instructions. Any damage to the product
or parts due to improper handling will void the warranty. For additional
W-Modbus documentation scan the QR-code or visit www.lumenradio.com
WARRANTY
The warranty or service agreement will be deemed void if:
(1) The product is repaired, modified, or changed, unless such repair,
modification or change has been approved by LumenRadio AB; or
(2) The serial number on the product has been made ineligible or is missing.
THE PACKAGING CONTAINS
1 x W-Modbus or 1x W-Modbus PRO
1 x Instruction leaflet
FCC ID: XRSTIMOMWAN201
IC: 8879A-TIMOMWAN201
ELECTRICAL SAFETY
Only qualified electricians or service personnel trained by LumenRadio may
perform interventions in connection with electrical installation. Always fol-
low local/national rules when performing this type of electrical installation.
When connecting a 24 V isolation transformer, this must be done in accor-
dance with IEC 61558-1.
TECHNICAL DATA
Power supply:
Max. power consumption:
24 V output max. power:
Auto resettable fuse:
Cable rating, connector:

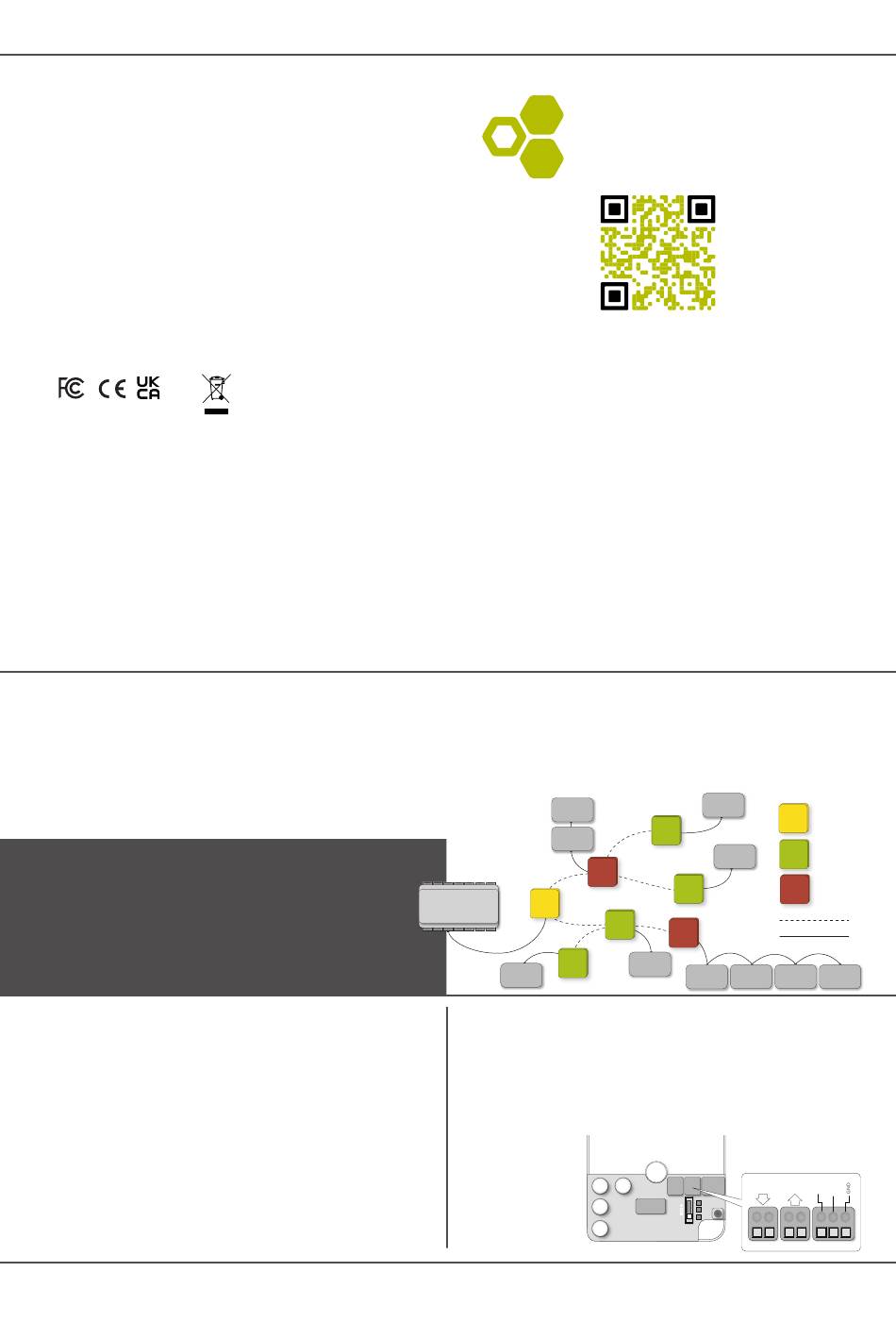

SYSTEM OVERVIEW
A W-Modbus network consists of a single W-Modbus Gateway connected
to the Modbus Client using an RS485 cable, and up to 100 W-Modbus No-
des, each of them connected to one Modbus Server over RS485. Every
device can act as either a Gateway or a Node, selectable by the 3 pole
switch - see Commissioning section.
Each W-Modbus Node will scan to find the connected Modbus Servers'
Modbus address. The scanning is done by querying each Modbus address,
hence the process may take up to 2 minutes. If the W-Modbus Node cannot
W-MODBUS PRO
With the PRO version of W-Modbus, up to four Modbus Servers can be
connected to one W-Modbus PRO Node - making it even easier to con-
nect multiple devices located in close proximity to each other.
W-Modbus and W-Modbus PRO are fully compatible and can be mixed
in a system. All instructions below apply to both models.
The label on the back of the product shows the product type:
W-Modbus or W-Modbus PRO.
INSTALLATION
Install the W-Modbus unit next to the device it should be connected to.
1. Confirm that the W-Modbus unit has no visible damage.
2. The W-Modbus enclosure is wall mounted and fits onto a junction
box. Start with mounting the backplate of the enclosure.
3. Connect the power supply and the Modbus device to the W-Modbus
unit, as shown to the right. Use the rear and/or top knockouts for
cable entry.
4. All W-Modbus units are factory set for Node operation, without the
need for additional configuration. If mixing serial configuration in the
system, adjust the dip switches accordingly.
5. Secure the front plate to the mounted back plate.
6. Check that the W-Modbus unit and its wiring are securely mounted (if
the unit is powered this will be indicated by the LEDs)
The device is now ready for commissioning.
W-Modbus is an end device with internal termination resistor.
Copyright © LumenRadio AB 2022
All Rights Reserved
MANUFACTURER
LumenRadio AB
Svangatan 2B
416 68 Gothenburg
Sweden
24 VAC ±15% 50-60 Hz, 24 VDC ±15%
2.5 W
10 W
Yes
solid / stranded
0.14 - 0.5 mm / 0.2 - 0.5 mm
2 2
conductor sizes (AWG) 24 – 20
W-Modbus
Scan for additional
www.lumenradio.com
Frequency band:
Baud rate:
Number of Nodes:
Number of hops:
Range per hop:
Output (ERP):
IP class:
Material:
Colour:
Ambient temperature:
RH:
Weight:
Dimensions:
find the connected Modbus Servers address, it will not be reachable by the
Modbus Client connected to the W-Modbus Gateway.
If adding, removing or changing the Modbus address of the connected de-
vice, double press the push button to initiate a new scanning.
Server
Server
Client
Server
POWER AND RS485 CONNECTION
The W-Modbus units have 24 VAC/VDC power in/out connection and con-
nection for Modbus RTU communication via RS485.
WARNING: When powering the W-Modbus device using 24 VAC, the
power supply/transformer should not be shared with another Modbus de-
vice also sharing a RS485 connection. This is to avoid ground loops caused
by the use of different types of rectification in the devices. W-Modbus uses
full wave rectification.
LUMENRADIO
by LumenRadio
information
2.45 GHz, ISM band (2400-2483 MHz)
9600, 19200, 38400, 76800 bps
100 Nodes in one wireless network
Max 8 hops in the meshing network
500 m line of sight (approximately 50-
70 m indoors with walls)
Max 20 dBm
40
ABS UL94-V0
White, RAL 9003
Operating: -20 to +55°C
Storage: -30 to +80°C
10 – 95% non-condensing
95g
W86.0 x H86.0 x D25.5 mm
Server
Server
Modbus RTU cable
Server
Server Server Server
24V
AC/DC
www.lumenradio.com
W-Modbus Gateway
W-Modbus Node
W-Modbus PRO Node
Wireless Mesh
Server
A+ B-
