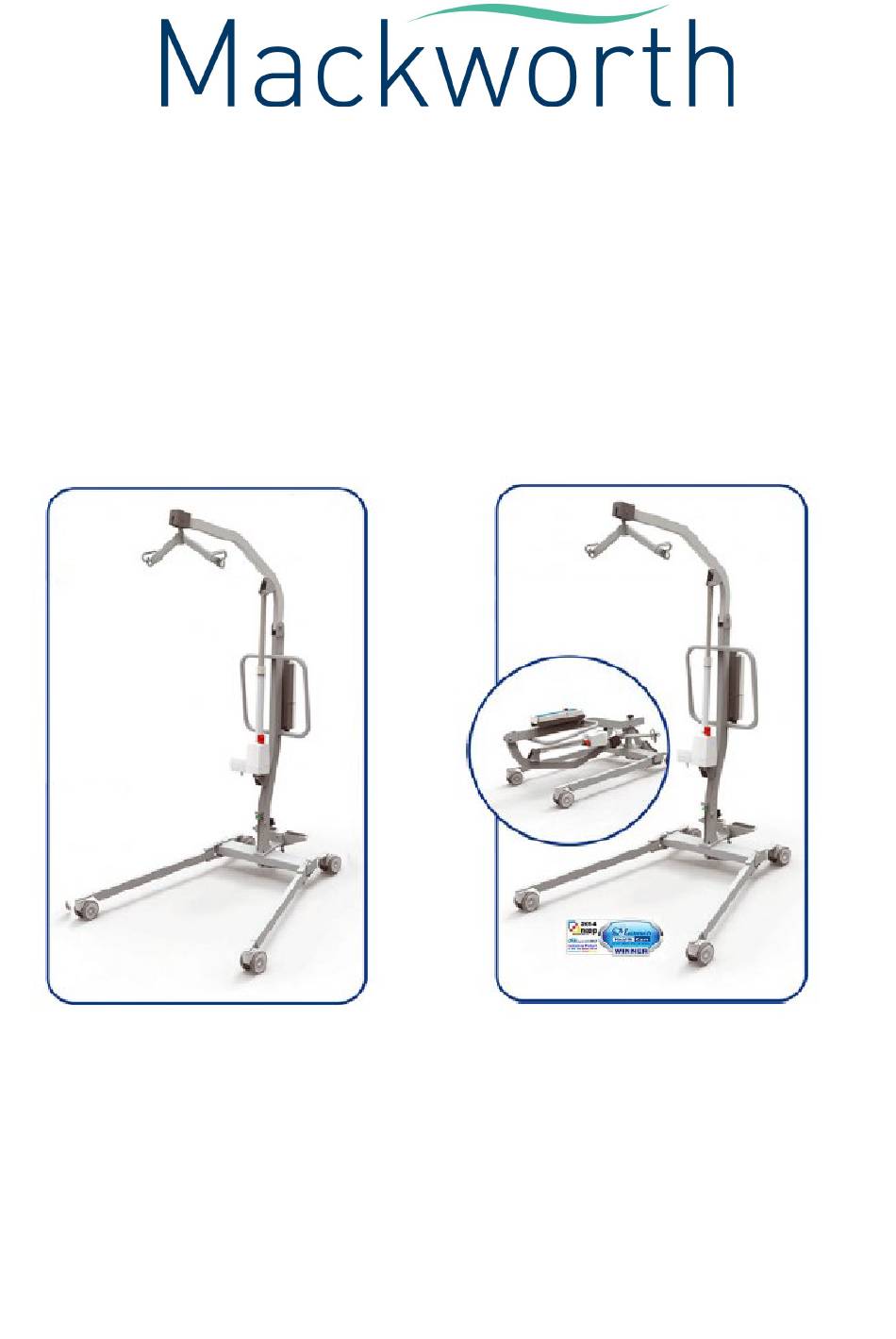

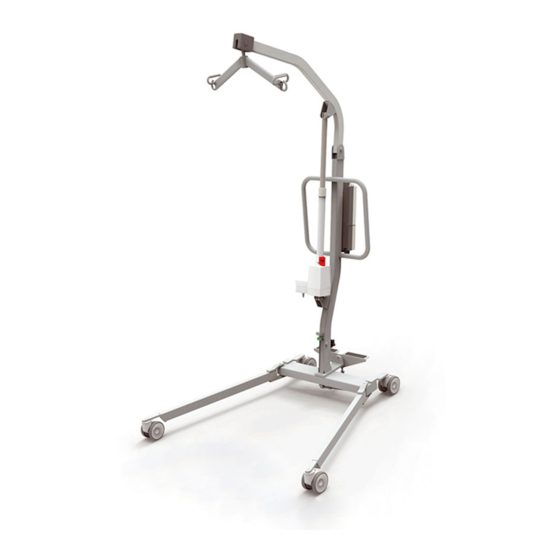

- Page 1 M-Series Mobile Floor lift (M330, M350, M385 & M400) User Manual...
-
Page 2: Table Of Contents
User Manual Index Page Symbols used 1. Introduction 2. Contraindications 3. Intended use / Overview of the M-Series Floor lift 5 to 6 4. Unpacking 5. Floor lift assembly instruction 8 to 9 6. Floor lift safety advice 7. Operating the floor lift 8. -
Page 3: Symbols Used
Symbols in use Index Warning – Consult instructions for use Caution – pinch point Manufacturer Please observe local laws on recycling Two-person lift may be required Refer to user manual Date of manufacture Serial number M-Series Mobile Floor lift User Manual Page 3 of 36 Part No. -
Page 4: Introduction
CAUTION: DO NOT ATTEMPT TO USE THIS EQUIPMENT WITHOUT FIRST UNDERSTANDING THE CONTENTS OF THIS MANUAL. 1. Introduction The floor lift can easily be operated by one person. Before using this equipment, and to ensure the safe operation of your Mobile Floor lift, carefully read this entire manual, especially the section on “Cautions”. -
Page 5: Contraindications
2. Contraindications There are no known “contraindications” associated with the usage of the mobile floor lift and its accessories, provided they are used as per manufacturer’s recommendations and guidelines. However, it is recommended that a client specific assessment is completed by a trained and knowledgeable health care professional to determine the method of transfer. - Page 6 Due to the design of the mobile floor lift system, it takes very little effort to press a button to perform the desired motion. Please familiarise yourself with the components of the mobile floor lift by referring to the diagram below. Model table for the M-Series of Mobile Floor lifts Product code Product description...
-
Page 7: Unpacking
4. Unpacking SAFETY NOTE: Some of the parts are heavy and will need to be lifted with care. Heavier items may need two people to lift. (Please refer to technical spec on page 20 to 21) The floor lift will arrive to you in a robust box and is folded in position, please be careful when removing the floor lift from the box. -
Page 8: Floor Lift Assembly Instruction
5. Floor lift assembly instruction The Assembled Floor lift Carton Contains: • Base fitted with 2 brake casters rear and 2 non-brake casters front • Mast and boom assembly • 2 Point spreader bar complete with cover, and new M10 Bolt and Nylon Lock Nut •... - Page 9 Floor lift assembly instruction (continued…) (Fig.2) i. Ensure the mast is fully seated in position before securing the mast locking hand wheel (Fig.1) Mast locking hand wheel must be secure before use f. The foot pedal will open and close the legs simply by activating one side with your foot.
-
Page 10: Floor Lift Safety Advice
6. Floor lift safety advice Please ensure you read the following safety advice. This will ensure lifting operations are made easy and trouble free. • Always carry out the risk assessment and plan your lifting operations before commencing and moving & handling practice. •... -
Page 11: Operating The Floor Lift
7. Operating the floor lift Casters & Braking - The floor lift has two braked casters at the rear of the base. The brakes should only be applied when the lift is parked. The brakes should always be released when a lifting operation is taking place. Leg Opening &... -
Page 12: Folding For Transportation / Storage
8. Folding for transportation / storage (folding mast type only) Lower the boom with the hand set until the spreader bar sits on the steel bracket. Attach the strap & buckle around the mast and spreader bar, this ensures the mast is secure and clear from the floor when folded. -
Page 13: Linak® Operating Systems
9. Linak® Operating System a. Jumbo care system – Typical Illustration 1. Linak® battery pack 2. Linak® control box 3. Linak® actuator 4. Linak® handset b. Homecare system – Typical illustration 5. Linak battery pack and control box ® 6. Linak actuator ®... -
Page 14: How To Charge The Floor Lift Battery
10. How to charge the floor lift battery There are a number of batteries located in the power pack / battery housing. They are charged through a shaver type socket in the base of the control unit. When charging is required the 3 pin mains lead is plugged into a wall socket and the shaver type socket goes into the base of the control box. -
Page 15: Daily Maintenance Checks
11. Daily maintenance checks 11.1 Visual check list These are recommended to be carried out before the floor lift is used for any moving & handling practice. a. CHECK that the legs open and close correctly. b. CHECK that the floor lift moves freely on its casters. c. -
Page 16: Maintenance And Servicing
12. Maintenance & Servicing This maintenance must be carried out by a competent person and is a US regulation. The inspection must take place every 6 months. Please see page 17 to 18 for illustrations to help with Key Safety Checks. a. - Page 17 wear. Check the fixing point for excessive wear and inspect the sling hooks for any damage, sharp edges and excessive wear. (see illustrated image below (fig.8) Illustrations for key check points as indicated above in points 1. To 11. Emergency lowering down (Fig.6)
-
Page 18: Recommended Cleaning Instruction
(Fig.8) (fig.8) Ensure the M10 bolt, nylon lock nut and 2 washers are in position and secure (Fig.8) Recommended Cleaning Instruction General cleaning M-Series Mobile Floor lift User Manual Page 18 of 36 Part No. 9995xx / Rev.Draft / Aug 2019... - Page 19 The exterior of the Floor lift can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet. Ensure the exterior of the device is dry after cleaning, dry using a clean dry cloth. Care should always be taken when cleaning around electrical components Disinfecting (if necessary) Should the Floor lift require a more thorough clean, the use of the Actichlor...
- Page 20 Concentration limits for differing cleans will be shown on the manufacturers Achtochlor tablet container, however, this is reflected in the table below: Dilution chart Device Concentration Dilution Tablets per Product used as: Contact time condition (ppm) qty * 0.26gal (1l) Clean 1.32gal (5l) 1 minute...
- Page 21 Conditions for safe storage, including and incompatibilities • Keep out of reach of children • Keep container tightly closed • Store in suitable labelled containers • Storage temperature: 0°C to 25°C Individual protective measures: • Hand protection: Gloves Dissolve Dissolve in cold water – With no agitation, 1 tablet will take approx. 10 minutes to fully dissolve in the water used.
-
Page 22: Generic Spare Parts Listing
14. Generic spare parts listing Details of the spares available upon request Order code Description Linak® battery pack for floor H1 – Battery lift Linak® bracket for battery & H1 – Battery fixing bracket control box H1 – Caster front Front caster low height Rear braked caster low H1 –... -
Page 23: Technical Spec
15. Technical Specifications (all shown dimensions are in centimetres) 15.1 – Dimensional Total weight: 39kgs Actuator thrust: M350 - 8,000N | M400 - 10,000N Model M350 M400 25.8″ 26.8″ 20.3″ 20.1″ 39.0″ 37.2″ 46.9″ 47.4″ Model M350 M400 4.5″ 4.4″ 18.1″... - Page 24 Technical specifications (continued…) 15.2 Electrical specifications: • Batteries 2 x 12-volt rechargeable sealed lead acid. • Battery Capacity 2.9 Ampere / hours • Charger Rated Input 230Vac 50/60Hz • Charger Rated Output 27.4 / 29.0 VDC @ 0.8A 15.3 Electric Shock Protection: •...
-
Page 25: Slings
16. Slings Sling types (this is not an exhaustive list) check supplier for available slings Universal C/W Hammock sling Universal sling Head support Comfort recline Dual access sling Dual access SRS sling The range of slings are the result of many years of experience in assessment and clinical expertize, combined with input from professional workers and users of slings. -
Page 26: Carry Bars
Mackworth floor lift system to ensure safe use can be established. Carry Bar connection points The carry bars associated for use with this device, incorporates two... - Page 27 • BS EN 60601-1 Medical electrical equipment. General requirements for basic safety and essential performance • BS EN ISO 10535 Floor lifts for the transfer of disabled persons. Requirements and test methods 19.1 - EMC – Electromagnetic emissions statement The device complies with the requirements of BS EN ISO 60601-1- 2 –...
-
Page 28: Test Certificate And Guarantee
20. Test certificate and Guarantee M Series Mobile Floor lifts TEST CERTIFICATE Model: M330 M350 M385 M400 Safe Working Load: 330lbs 350lbs 385lbs 400lbs Serial No: ……………………………………………………………………. Date of Test: ……………………………………………………………….. This Test Certificate confirms that the above numbered floor lift has been fully tested in accordance with the tests specified in: •... -
Page 29: Guarantee
All other components - 12 months The warranty entitles free replacement for defective parts only, exclusive of labor. Mackworth Healthcare will bear all return costs if the warranty claim is valid after a full investigation. Additional information may be required to support such a claim. -
Page 30: Service Record History
General Inspection and Maintenance Section. • Be sure to have this piece of equipment serviced on a regular basis (6 monthly where LOLER applies). Purchase Information Product name: M Series Mobile Floor lift Model: M330 M350 M385 M400 Date of purchase: ……………………………………….. -
Page 31: Service Record History
21.2 Service Record History Complete this section after each service, repair inspection and/or maintenance. * Photocopy additional pages as required* M-Series Mobile Floor lift User Manual Page 31 of 36 Part No. 9995xx / Rev.Draft / Aug 2019... - Page 32 M-Series Mobile Floor lift User Manual Page 32 of 36 Part No. 9995xx / Rev.Draft / Aug 2019...
- Page 33 M-Series Mobile Floor lift User Manual Page 33 of 36 Part No. 9995xx / Rev.Draft / Aug 2019...
- Page 34 M-Series Mobile Floor lift User Manual Page 34 of 36 Part No. 9995xx / Rev.Draft / Aug 2019...
-
Page 35: User Notes
User notes: M-Series Mobile Floor lift User Manual Page 35 of 36 Part No. 9995xx / Rev.Draft / Aug 2019... -
Page 36: Contact Details
While every effort has been made to ensure the accuracy of information contained in this user manual, no liability can be accepted by Mackworth for any errors or omissions. Mackworth operates a policy of continuous improvement. Specifications and other data are subject to change without notice.
