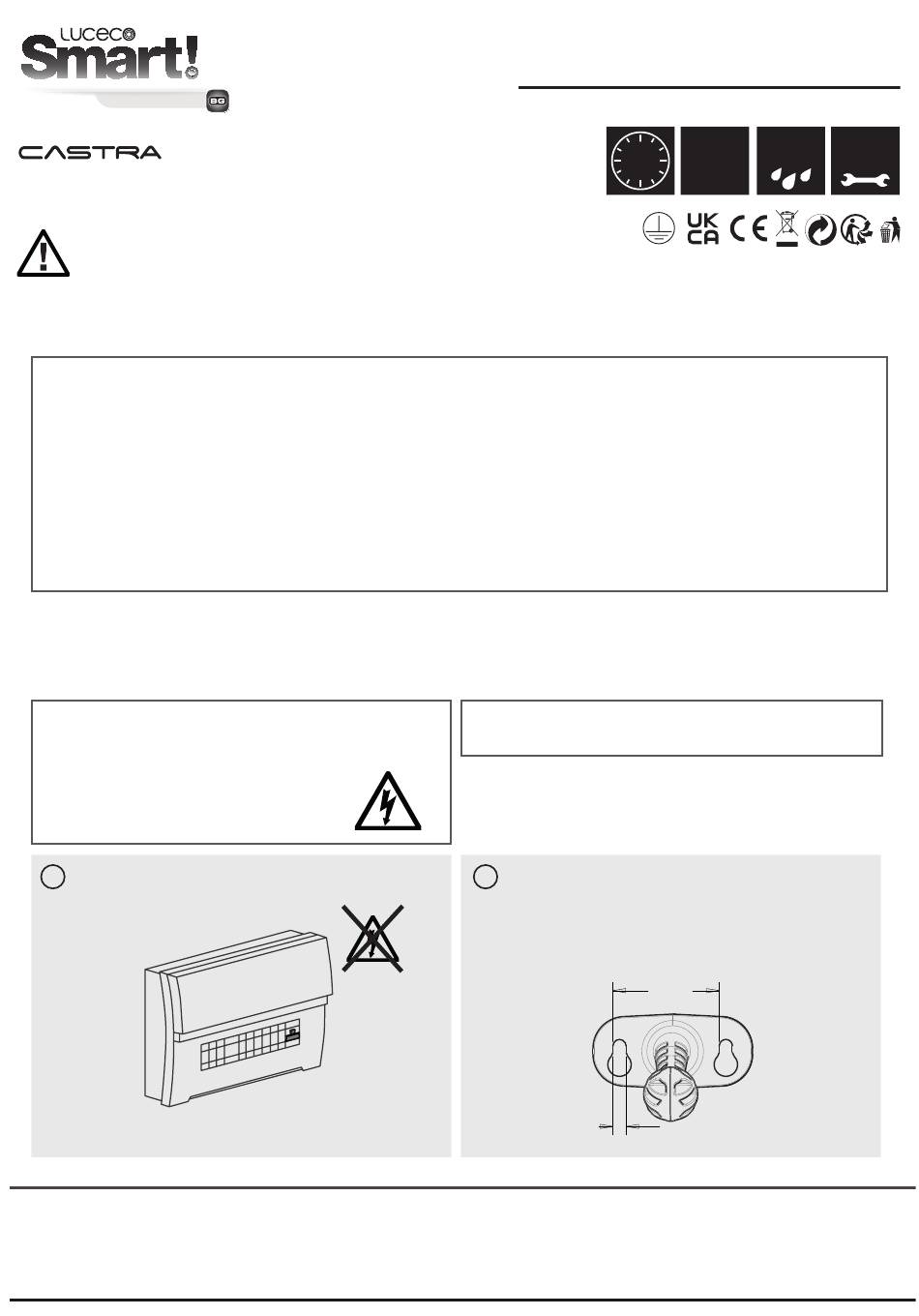

luceco Smart CASTRA LSMFSP-05 Installation & Operating Instructions

Powered by the BG Home app
SECURITY FLOODLIGHT PIR
LSMFSP-05
PRODUCT MUST BE INSTALLED THROUGH A
SWITCH TO ACTIVATE CONNECTION MODE
Voltage :220-240V AC, 50-60Hz
Wireless IEEE standard : Wi-fi 2.4Ghz b/g/n
PIR
The PIR Sensor can be aimed to cover the desired detection area, and has
a maximum range of up to 10 Meters over a 120° degree area. Detection
range is controlled by the angle of the PIR, for maximum range, point PIR
directly horizontal. To reduce range, tilt the PIR towards the ground.
PIR Settings in the APP allow the following adjustments:
• Time ON = from 10 seconds (+/- 5 seconds)
to 30 minutes (+/- 2 minutes),
• Ambient Light = 2 Lux to 2000Lux, ambient light controls when the PIR
will detect movement. For typical dusk light levels, we suggest around
50% setting.
• Sensititvity – Adjust the amount of movement needed to trigger the PIR
This product range is designed for domestic outdoor use. Not suitable for interior use. If outdoor connection is required, use a suitably IP rated
junction box and terminals. Glands used must be suitable for HO5RN-F cable as supplied with the luminaire. The Floodlight is pre-wired with 1.0M
of H05RN-F cable, removing the need to open the housing. The external flexible cord or cable of this luminaire cannot be replaced; if the cord is
damaged, the luminaire shall be destroyed.
NOTE – To comply with regulations, installation must be carried out by suitably
qualified competent person and in accordance with the current IEE Wiring
Regulations (BS761) and Building Regulations. A copy of the instructions must be
left for the user/maintenance engineer for the future reference.
For non-UK, please refer/consult local requirments
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/
ISOLATED BEFORE CIMMERCING INSTALLATION
1
Tech Help Line
0330 0249 279
UK -
+44 (0)1952 238 100
Non UK -
Supplied by LUCECO
Stafford Park 1, Telford, Shropshire,
England, TF3 3BD
www.luceco.com
Visit our website at Besuchen Sie uns auf
LSMFSP.RO.06.2021
Kontakt
0330 0249 279
UK -
+49 40 89066 878 - 29
Non UK -
Geliefert von
Luceco GmbH
Holstenplatz 20b,
Rue de Courtalin, Magny Le Hongre 77700
22765 Hamburg DEUTSCHLAND
www.luceco.de
Installation & Operating Instructions
Dusk Till Dawn Mode:
The PIR features an internal photocell, that can detect light levels to come
on and stay on all night until set lux level is reached. Ideal for all night
illumination.
Night Glow Mode:
Allowing a 10% low light level continuous illumination, increasing to full
brightness when movement is detected, Ideal for security use or ensuring
some illumination at all times.
NOTE – During the first 48 hours of operation, the PIR may cause the LED
floodlight to operate as it self adjusts to the ambient light level of the installation.
Turn OFF power supply, ensure all required
2
equipment and tools are present. For optimal
detection, avioid placing near sources of heat
e.g. extractor vents
• Power Drill
• Applicable screws and fixings
