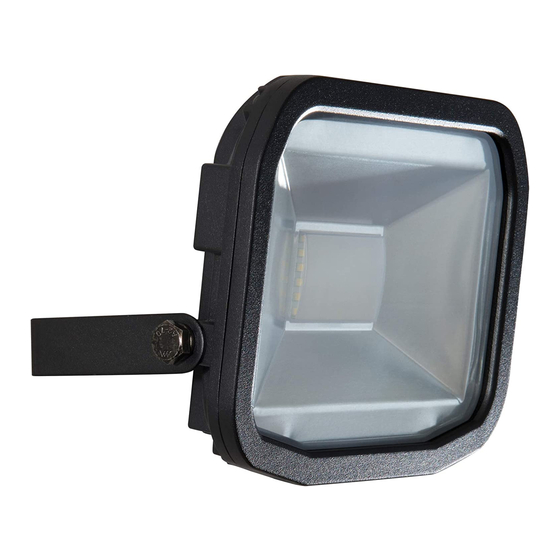

Guardian
Slimline
LED Floodlights - Non PIR
PART CODE: LFS10W1B30 / LFS10W1B50 / LFS20W1B30
/ LFS20W1B50 / LFS30W1B30 / LFS30W1B50
CRI
>
30,000
80
HOURS
INSTRUCTIONS FOR NEW INSTALLATIONS
Note - This product range is designed for domestic outdoor use.
Not suitable for interior or commercial use.
1.
Turn OFF power supply, ensure all required equipment and tools
are present.
2.
The floodlight is intended for exterior use and is IP65 rated. Select
a suitable mounting position. Recommended mounting heights as
follows, area illuminated is typically mounting height x3.
Wattage
Height
10
2.0m - 3.0m
20
2.5m - 4.0m
30
3.0m - 5.0m
3.
With a suitable mounting position identified, securely fix the
shape mounting bracket to the mounting surface.
4.
The floodlight is supplied pre-wired with with 1.0M of H05RN-F
cable, removing the need to open the housing.
Technical Specs
Product Code
Wattage
LFS10W1B30
10
LFS10W1B50
10
LFS20W1B30
20
LFS20W1B50
20
LFS30W1B30
30
LFS30W1B50
30
Tech Help Line
0845 194 7584
UK -
+44 (0)1952 238 100
Non UK -
MB-05/2015
IP65
3
year
standard
RATED
GUARANTEE
Suggested Halogen Equivalent
100w
200w
300w
Lumen output
Efficacy Llm/W
600
600
1200
1200
1800
1800
Stafford Park 1 TF3 3BD ENGLAND
Luceco is a registered trade mark of Nexus Industries Ltd.

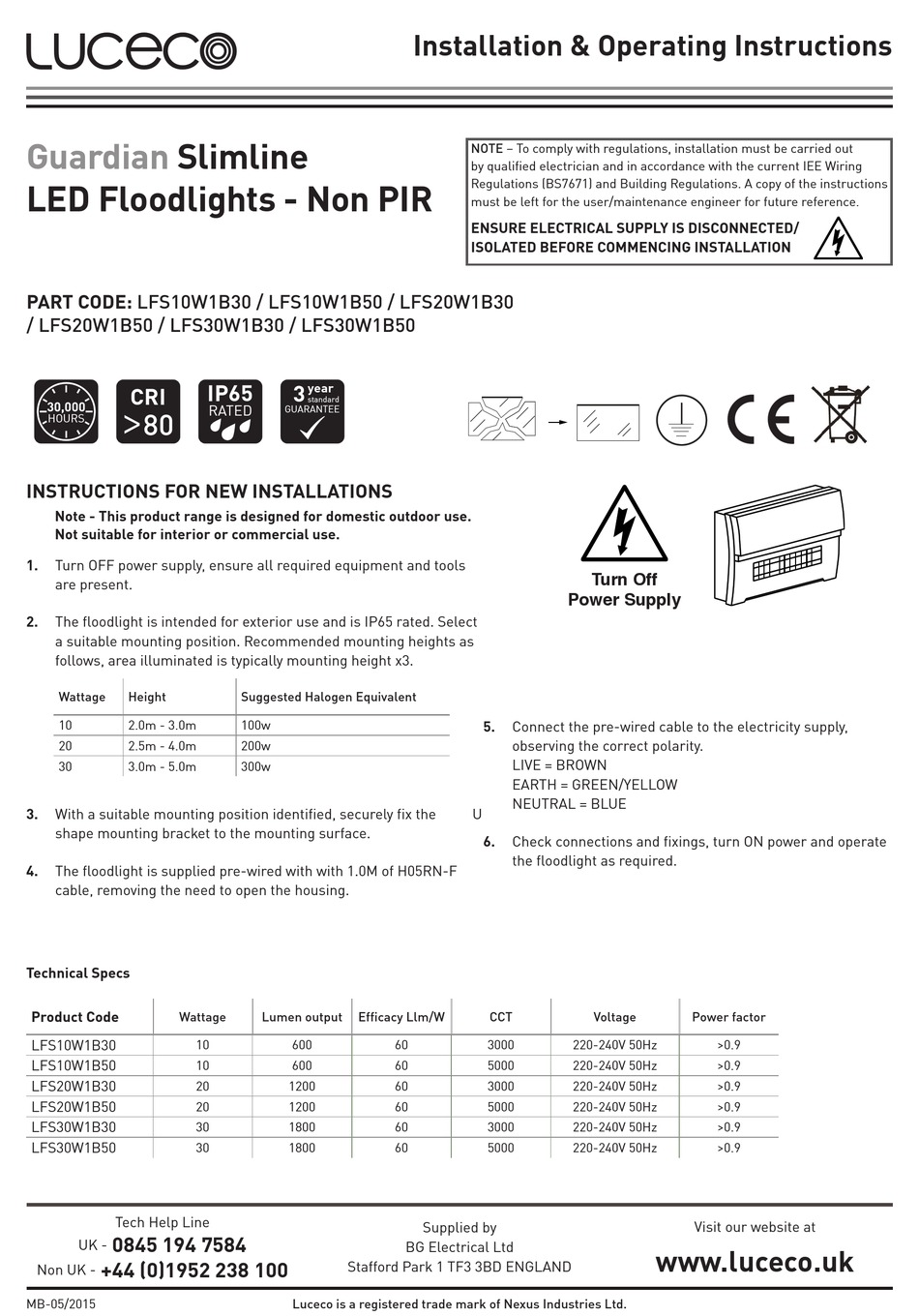

Installation & Operating Instructions
NOTE – To comply with regulations, installation must be carried out
by qualified electrician and in accordance with the current IEE Wiring
Regulations (BS7671) and Building Regulations. A copy of the instructions
must be left for the user/maintenance engineer for future reference.
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/
ISOLATED BEFORE COMMENCING INSTALLATION
Power Supply
5.
Connect the pre-wired cable to the electricity supply,
observing the correct polarity.
LIVE = BROWN
EARTH = GREEN/YELLOW
NEUTRAL = BLUE
U
6.
Check connections and fixings, turn ON power and operate
the floodlight as required.
CCT
60
3000
60
5000
60
3000
60
5000
60
3000
60
5000
Supplied by
BG Electrical Ltd
W
Turn Off
Voltage
Power factor
220-240V 50Hz
>0.9
220-240V 50Hz
>0.9
220-240V 50Hz
>0.9
220-240V 50Hz
>0.9
220-240V 50Hz
>0.9
220-240V 50Hz
>0.9
Visit our website at
www.luceco.uk
