luceco Guardian Slimline PIR Installation & Operating Instructions

Guardian Slimline
LED Floodlights – PIR
NOTE – To comply with regulations, installation must be carried out by suitably
qualified competent person and in accordance with the current IEE Wiring
Regulations (BS7671) and Building Regulations. A copy of the instructions must
be left for the user/maintenance engineer for future reference.
For non-UK, please refer/consult local requirements
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/
ISOLATED BEFORE COMMENCING INSTALLATION

INSTRUCTIONS FOR NEW INSTALLATIONS

Note - This product range is design for domestic outdoor use.
Not suitable for interior or commercial use. If outdoor
connection is required, use a suitably IP Rated junction box
1. Turn OFF power supply, ensure all required equipment
and tools are present
2. The floodlight is supplied pre-wired with 1.0M of H05RN-F
cable, removing the need to open the housing
3. The floodlight is intended for exterior use and is IP44 rated.
Select a suitable mounting position. Recommended mounting
height shown in the adjacent table, area illuminated is typically
mounting height x3
Lumens Height
600 2.0m - 3.0m
1200 2.5m - 4.0m
1800 3.0m - 5.0m
3000 4.0m - 6.0m
4.

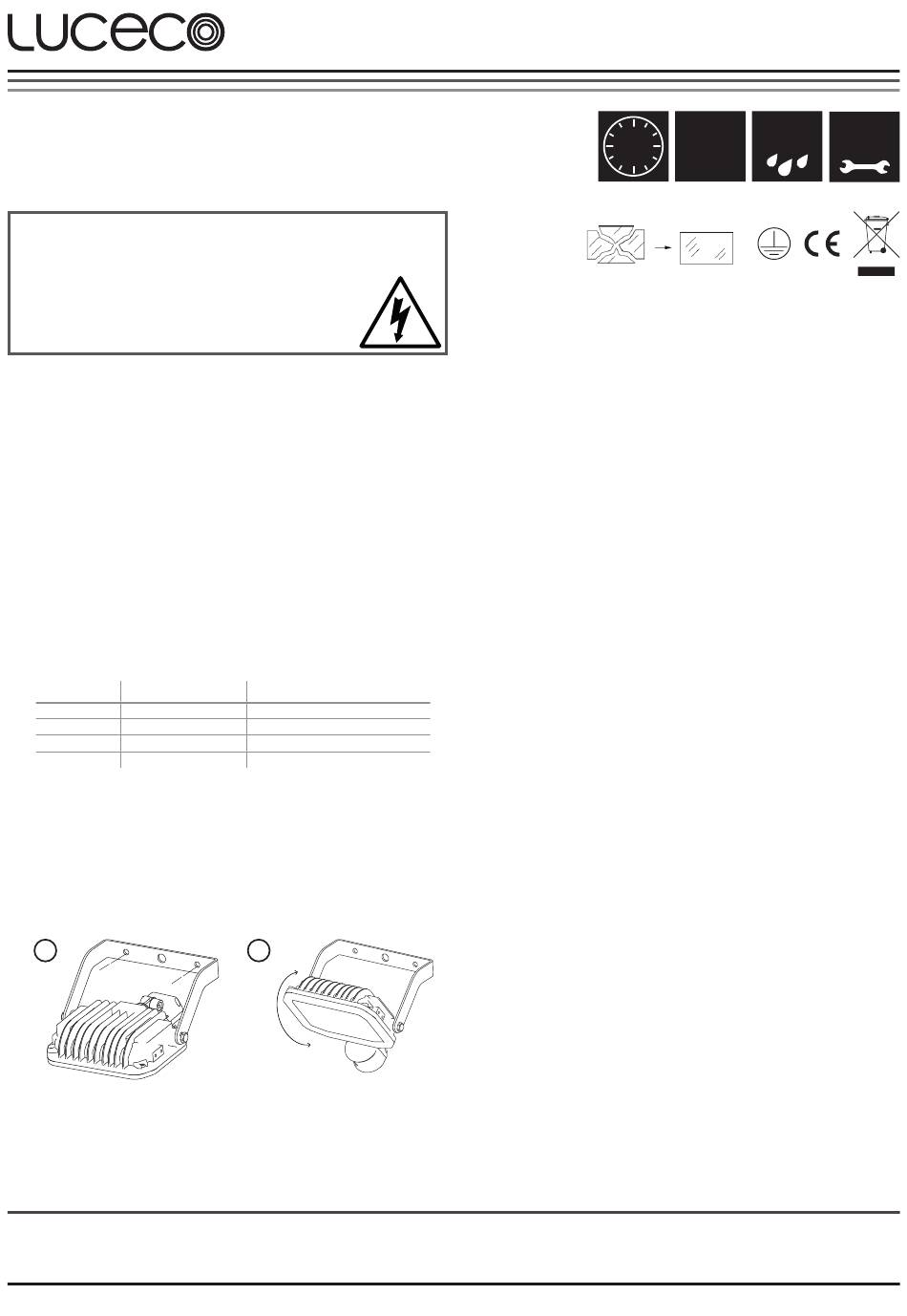

This product is supplied with a long bracket fitted by standard.
With a suitable mounting position:
a) Tilt floodlight forward in the bracket to allow access
to the bracket
b) Fit bracket to wall using suitable fixings (NOT SUPPLIED)
c) Tilt floodlight to desired angle and tighten fixing bolts
b
5.
Connect the pre-wired cable to the electricity supply, observing
the correct polarity:
LIVE = BROWN
NEUTRAL = BLUE
EARTH = GREEN/YELLOW
Tech Help Line
0330 0249 279
UK -
+44 (0)1952 238 100
Non UK -
LFSP02.JH.11.2017
Installation & Operating Instructions
