OWNER'S/INSTALLATION MANUAL

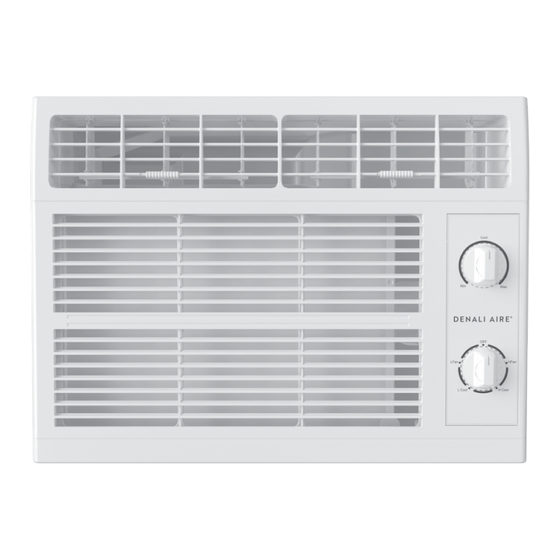

ROOM AIR CONDITIONER
MODEL 2DMC5K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2DMC5K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DENALI AIRE 2DMC5K

Summary of Contents for DENALI AIRE 2DMC5K

  • Page 1 OWNER’S/INSTALLATION MANUAL ROOM AIR CONDITIONER MODEL 2DMC5K...

  • Page 3: Table Of Contents

    CONTENTS Safety Information ................................4 Using the Air Conditioner Temperature Control ............................... 6 Air Direction ..................................6 Care and Cleaning Grille and Case .................................. 7 Air Filter ....................................7 Outdoor Coils ..................................7 Installation Instructions Before You Begin ................................8 Electrical Requirements..............................

  • Page 4: Safety Information

    SAFETY & PRECAUTIONS SAFETY INFORMATION CONTINUED CONTINUED IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury. •...
  • Page 5 SAFETY INFORMATION (Continued) IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING USE OF EXTENSION CORDS RISK OF FIRE. Could cause serious injury or death. • DO NOT use an extension cord with this Window Air Conditioner. • DO NOT use surge protectors or multi-outlet adapters with this Window Air Conditioner.

  • Page 6: Temperature Control

    SAFETY & PRECAUTIONS USING THE AIR CONDITIONER CONTINUED CONTINUED AIR CONDITIONER CONTROLS (Features and appearance may vary) TEMPERATURE CONTROLS Cool This determines how much cooling is provided. • Max Cool - 10 provides the most cooling • Min Cool - 1 provides the least COOLING DESCRIPTIONS •...

  • Page 7: Care And Cleaning

    CARE AND CLEANING MAINTENANCE GRILLE AND CASE • Turn the air conditioner off and remove the plug from the wall outlet before cleaning. • Clean filter by using warm water and a mild detergent. Do not use bleach or abrasives. AIR FILTER The air filter should be checked and cleaned at least every 30 days.

  • Page 8: Before You Begin

    SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED (Continued) BEFORE YOU BEGIN Read these instructions completely and carefully. • IMPORTANT � Save these instructions for local inspector’s use. • IMPORTANT – Observe all governing codes and ordinances. • Note to Installer – Be sure to leave these instructions with the Consumer. •...

  • Page 9: Parts Included

    INSTALLATION INSTRUCTIONS (Continued) TOOLS REQUIRED Phillips Head Drill and Pencil Ruler or Level Scissors Screwdriver 1/8” Drill Bit Tape Measure or Knife PARTS INCLUDED (Appearance may vary) Top Mounting Rail Foam Top Window Gasket Air Conditioner Left Right Side Curtain Side Curtain Type A Type B...

  • Page 10: Window Requirements

    SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED (Continued) WINDOW REQUIREMENTS • These instructions are for a standard double-hung window. You will need to modify them for other types of windows. 13-3/8” • The air conditioner can be installed without the side 21-7/8”...

  • Page 11: Installing The Air Conditioner

    INSTALLATION INSTRUCTIONS (Continued) INSTALL THE AIR CONDITIONER IN THE WINDOW A. Measure the width of the window opening and mark the center line on the inside windowsill. Place the unit in the window. Lower the window Center Line to hold unit in place. Top Rail Window Sash B.

  • Page 12: Troubleshooting Troubleshooting Tips

    SAFETY & PRECAUTIONS TROUBLESHOOTING TIPS CONTINUED CONTINUED Review the chart for Troubleshooting Tips. If issue persists, please call for further assistance. ISSUE POSSIBLE CAUSE WHAT TO DO The unit is unplugged Make sure the air conditioner plug is pushed completely into the outlet. The fuse is blown/circuit Check the house fuse/circuit breaker box and replace the fuse breaker is tripped...

  • Page 13: Normal Operating Sounds

    TROUBLESHOOTING TIPS (Continued) NORMAL OPERATING SOUNDS • You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This is normal, unit is equipped with a slinger blade which scoops up the water from the drain pan and throws it onto the coils for better efficiency.
  • Page 14 SAFETY & PRECAUTIONS NOTES CONTINUED CONTINUED...
  • Page 15 TROUBLESHOOTING TIPS...
  • Page 16 5401 Dansher Road Countryside, IL 60525 888-433-6254 support@denali-aire.com www.denali-aire.com Printed in China 0721_M820...
