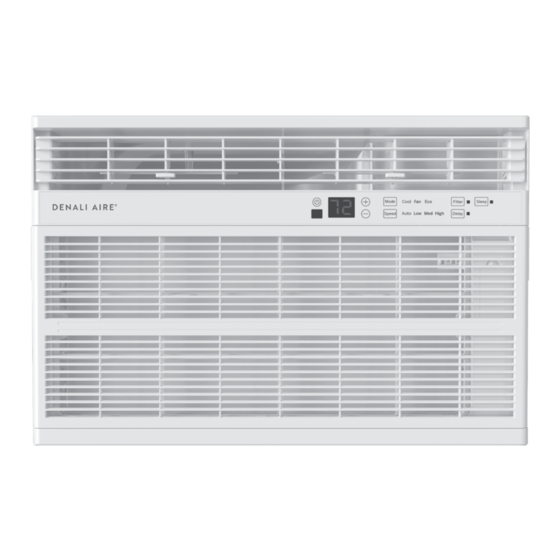

- Page 1 OWNER’S/INSTALLATION MANUAL ROOM AIR CONDITIONER 3DANC18K & 3DANC24K shown MODELS: 3DANC18K 3DANC24K 3DANCH18K 3DANCH24K...
- Page 2 REGISTRATION To register your air conditioner, please visit www.newleafsc.net/denaliaire and click on “Register Your Product” To find the model and serial number of your product, please refer to the diagram below: The model number identifies the specific version or type of your product, while the serial number is a unique identifier for your individual unit.
-
Page 3: Table Of Contents
CONTENTS Safety Information ................................4 Using the Air Conditioner Temperature Control ............................... 6 Air Direction ..................................8 Care and Cleaning Grille and Case .................................. 9 Air Filter ....................................9 Outdoor Coils ..................................9 Installation Instructions Before You Begin ................................10 Electrical Requirements...............................10 Parts Included .................................11 Window Requirements ..............................12 Preparing the Air Conditioner ............................12... - Page 4 SAFETY & PRECAUTIONS SAFETY INFORMATION CONTINUED CONTINUED IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury. •...
-
Page 5: Safety Information
SAFETY INFORMATION (Continued) IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING USE OF EXTENSION CORDS RISK OF FIRE. Could cause serious injury or death. • DO NOT use an extension cord with this Window Air Conditioner. • DO NOT use surge protectors or multi-outlet adapters with this Window Air Conditioner. - Page 6 SAFETY & PRECAUTIONS USING THE AIR CONDITIONER CONTINUED CONTINUED AIR CONDITIONER CONTROLS Features and appearance may vary. Lights below the touch pads on the air conditioner control panel indicate the selected settings. Unit power on/off Fan speed Delay Mode select Delay 1-24 hr Temperature Set/Delay Timer Operating...
-
Page 7: Using The Air Conditioner
USING THE AIR CONDITIONER (Continued) Delay Pad • Delay ON—When the air conditioner is off, it can be set to automatically come on in 1 to 24 hours at its previous mode and fan settings. • Delay OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours. How to set: Press the Delay 1–24hr pad on the unit or the remote control. -
Page 8: Air Direction
SAFETY & PRECAUTIONS USING THE AIR CONDITIONER CONTINUED CONTINUED (Continued) AIR CONDITIONER CONTROLS CONTROL PANEL FAN ONLY MODE • This air conditioner has a control panel lights on off Use the Fan Only Mode at Low, Med or High fan feature where its lights will turn off when there is no speed to provide air circulation and filtering without activity with the controls for over one minute. -
Page 9: Care And Cleaning
CARE AND CLEANING MAINTENANCE GRILLE AND CASE • Turn the air conditioner off and remove the plug from the wall outlet before cleaning. • Clean filter by using warm water and a mild detergent. Do not use bleach or abrasives. AIR FILTER The air filter should be checked and cleaned at least every 30 days. -
Page 10: Before You Begin
The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet. 3DANC18K CAUTION •... -
Page 11: Parts Included
INSTALLATION INSTRUCTIONS (Continued) TOOLS REQUIRED Phillips Head Drill and Pencil Ruler or Level Scissors Screwdriver 1/8” Drill Bit Tape Measure or Knife PARTS INCLUDED (Appearance may vary) Top Mounting Rail (may be installed already) Remote Control Air Conditioner Foam Top Window Gasket Left Right Accordion Panel Frame... - Page 12 SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED (Continued) IMPORTANT NOTICE: PROHIBITED INSTALLATION DO NOT install this window air conditioner inside a wall sleeve or through a wall. It is strictly forbidden and will void the warranty. The unit is designed for window mounting only, and any other installation may cause operational failure, airflow obstruction, water leakage, and electrical hazards.
-
Page 13: Window Requirements
• The electrical outlet must be within reach of the power cord. Models • Follow the dimensions in the table 3DANC18K and illustration for your model. 3DANC24K 191/8" min 30" – 42" • DO NOT install this window air conditioner 3DANCH18K inside a wall sleeve or through a wall. - Page 14 SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED (Continued) PREPARE THE CASE NOTE: Attach accordion panels to the air conditioner before placing the air conditioner in the window. 3/8” Self Tapping Screws (install from interior) A. Install top mounting rail (if not already installed) with four type A screws.
- Page 15 INSTALLATION INSTRUCTIONS (Continued) INSTALL WINDOW LOCKING BRACKET AND FOAM TOP WINDOW GASKET Vinyl A. Use Type B Screw to install the window lock bracket on top of the bottom window. CAUTION If you have vinyl or other similarly constructed Wood windows, attach the window locking bracket to the window side jamb with one Type B screw to prevent broken glass or damage to windows.
- Page 16 This is normal for a short period in areas with little humidity; in base pan air and drain into base pan normal for a longer period in very humid areas. Please contact Denali Aire Customer Service at 888-433-6254 EP: Temperature Sensor Error for troubleshooting support.
-
Page 17: Troubleshooting Tips
TROUBLESHOOTING TIPS (Continued) NORMAL OPERATING SOUNDS • You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This is normal, unit is equipped with a slinger blade which scoops up the water from the drain pan and throws it onto the coils for better efficiency. - Page 18 5401 Dansher Road Countryside, IL 60525 888-433-6254 support@denali-aire.com www.denali-aire.com Printed in China 1123_M074...
