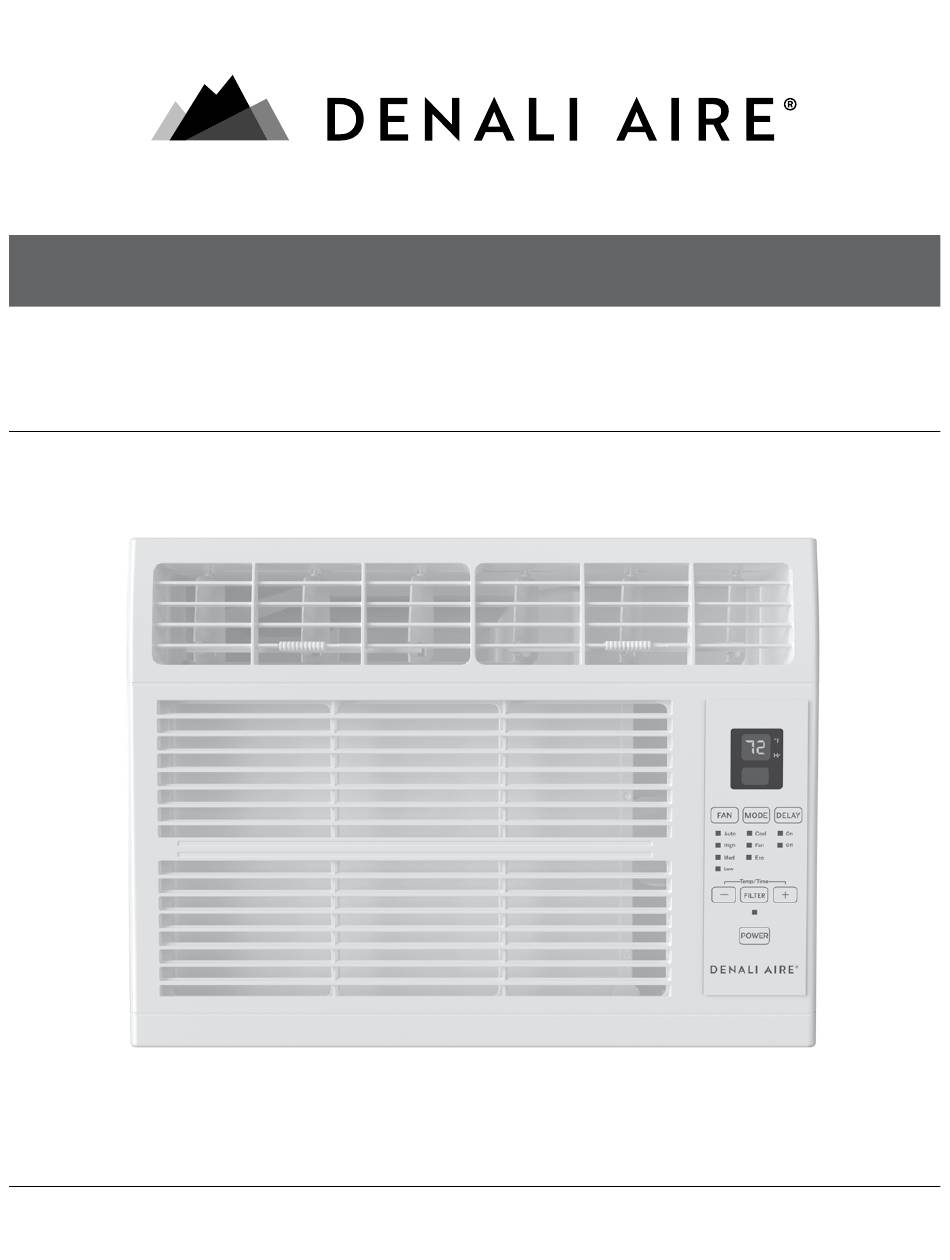

- Page 1 OWNER’S/INSTALLATION MANUAL ROOM AIR CONDITIONER MODEL 2DANC6K...
-
Page 3: Table Of Contents
CONTENTS Safety Information ................................4 Using the Air Conditioner Controls ....................................6 Remote Control ................................. 6 Cool Mode ..................................7 Energy Saver Mode ................................. 7 Air Direction ..................................7 Care and Cleaning Grille and Case .................................. 8 Air Filter ....................................8 Outdoor Coils .................................. -
Page 4: Safety Information
SAFETY & PRECAUTIONS SAFETY INFORMATION CONTINUED CONTINUED IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury. •... - Page 5 SAFETY INFORMATION (Continued) IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING USE OF EXTENSION CORDS RISK OF FIRE. Could cause serious injury or death. • DO NOT use an extension cord with this Window Air Conditioner. • DO NOT use surge protectors or multi-outlet adapters with this Window Air Conditioner.
-
Page 6: Controls
SAFETY & PRECAUTIONS USING THE AIR CONDITIONER CONTINUED CONTINUED AIR CONDITIONER CONTROLS Features and appearance may vary. Lights below the touch pads on the air conditioner control panel indicate the selected settings. Power Pad • Turns air conditioner on and off. When turned on, the display will show the set temperature. -
Page 7: Cool Mode
USING THE AIR CONDITIONER (Continued) AIR CONDITIONER CONTROLS COOL MODE AUTO FAN MODE Use the Cool mode at Low, Med, High or Speed Set to Auto for the fan speed to automatically set for cooling. Use the Temperature Increase + / to the speed needed to provide optimum comfort Decrease –... -
Page 8: Grille And Case
SAFETY & PRECAUTIONS CARE AND CLEANING CONTINUED CONTINUED MAINTENANCE GRILLE AND CASE • Turn the air conditioner off and remove the plug from the wall outlet before cleaning. • Clean filter by using warm water and a mild detergent. Do not use bleach or abrasives. AIR FILTER The air filter should be checked and cleaned at least every 30 days. -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Read these instructions completely and carefully. • IMPORTANT � Save these instructions for local inspector’s use. • IMPORTANT – Observe all governing codes and ordinances. • Note to Installer – Be sure to leave these instructions with the Consumer. •... -
Page 10: Parts Included
SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED (Continued) TOOLS REQUIRED Phillips Head Drill and Pencil Ruler or Level Scissors Screwdriver 1/8” Drill Bit Tape Measure or Knife PARTS INCLUDED (Appearance may vary) Top Mounting Rail Temp / Delay Hrs Remote Control Foam Top Window Gasket Air Conditioner Left... -
Page 11: Window Requirements
INSTALLATION INSTRUCTIONS (Continued) WINDOW REQUIREMENTS • These instructions are for a standard double-hung window. You will need to modify them for other types of windows. 13-3/8” • The air conditioner can be installed without the side 21-7/8” - 36” curtain panels if needed to fit in a narrow window. (With side curtain panels) See the window opening dimensions. -
Page 12: Installing The Air Conditioner
SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED (Continued) INSTALL THE AIR CONDITIONER IN THE WINDOW A. Measure the width of the window opening and mark the center line on the inside windowsill. Place the unit in the window. Lower the window Center Line to hold unit in place. -
Page 13: Troubleshooting Tips
TROUBLESHOOTING TIPS Review the chart for Troubleshooting Tips. If issue persists, please call for further assistance. ISSUE POSSIBLE CAUSE WHAT TO DO The unit is unplugged Make sure the air conditioner plug is pushed completely into the outlet. The fuse is blown/circuit Check the house fuse/circuit breaker box and replace the fuse breaker is tripped or reset the breaker. -
Page 14: Normal Operating Sounds
SAFETY & PRECAUTIONS TROUBLESHOOTING TIPS CONTINUED CONTINUED (Continued) NORMAL OPERATING SOUNDS • You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency. - Page 16 5401 Dansher Road Countryside, IL 60525 888-433-6254 support@denali-aire.com www.denali-aire.com Printed in China 0721_M820...
