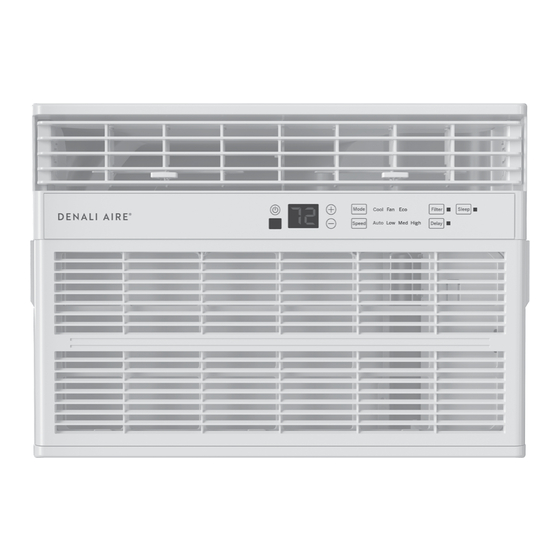

- Page 1 OWNER’S/INSTALLATION MANUAL ROOM AIR CONDITIONER 3DANC10K & 3DANC12K shown MODELS: 3DANC8K 3DANC10K 3DANC12K 3DANC14K...
- Page 2 REGISTRATION To register your air conditioner, please visit www.newleafsc.net/denaliaire and click on “Register Your Product” To find the model and serial number of your product, please refer to the diagram below: The model number identifies the specific version or type of your product, while the serial number is a unique identifier for your individual unit.
-
Page 3: Table Of Contents
CONTENTS Safety Information ................................4 Using the Air Conditioner Temperature Control ............................... 6 Air Direction ..................................8 Care and Cleaning Grille and Case .................................. 9 Air Filter ....................................9 Outdoor Coils ..................................9 Installation Instructions Before You Begin ................................10 Electrical Requirements...............................10 Parts Included .................................11 Window Requirements ..............................12 Preparing the Air Conditioner ............................12... - Page 4 SAFETY & PRECAUTIONS SAFETY INFORMATION CONTINUED CONTINUED IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury. •...
-
Page 5: Safety Information
SAFETY INFORMATION (Continued) IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING USE OF EXTENSION CORDS RISK OF FIRE. Could cause serious injury or death. • DO NOT use an extension cord with this Window Air Conditioner. • DO NOT use surge protectors or multi-outlet adapters with this Window Air Conditioner. -
Page 6: Air Conditioner Controls
SAFETY & PRECAUTIONS USING THE AIR CONDITIONER CONTINUED CONTINUED AIR CONDITIONER CONTROLS Features and appearance may vary. Lights below the touch pads on the air conditioner control panel indicate the selected settings. Unit power on/off Fan speed Delay Mode select Delay 1-24 hr Operating Temperature Set/Delay Timer... -
Page 7: Using The Air Conditioner
USING THE AIR CONDITIONER (Continued) Delay Pad • Delay ON—When the air conditioner is off, it can be set to automatically come on in 1 to 24 hours at its previous mode and fan settings. • Delay OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours. How to set: Press the Delay 1–24hr pad on the unit or the remote control. -
Page 8: Air Direction
SAFETY & PRECAUTIONS USING THE AIR CONDITIONER CONTINUED CONTINUED (Continued) AIR CONDITIONER CONTROLS CONTROL PANEL FAN ONLY MODE • This air conditioner has a control panel lights on off Use the Fan Only Mode at Low, Med or High fan feature where its lights will turn off when there is no speed to provide air circulation and filtering without activity with the controls for over one minute. -
Page 9: Care And Cleaning
CARE AND CLEANING (Continued) MAINTENANCE GRILLE AND CASE • Turn the air conditioner off and remove the plug from the wall outlet before cleaning. • Clean filter by using warm water and a mild detergent. Do not use bleach or abrasives. AIR FILTER The air filter should be checked and cleaned at least every 30 days. -
Page 10: Before You Begin
SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED BEFORE YOU BEGIN Read these instructions completely and carefully. • IMPORTANT � Save these instructions for local inspector’s use. • IMPORTANT – Observe all governing codes and ordinances. • Note to Installer – Be sure to leave these instructions with the Consumer. •... -
Page 11: Installation Instructions
Top Mounting Rail Remote Control Foam Top Window Gasket Air Conditioner Bottom Seal and Side Seals (3) Left Right Accordion Panel Accordion Type A Type B Side Window Locking Frame Panels (2) Brackets (2) Bracket (1) 3DANC10K/ 3DANC12K/ 3DANC14K 3DANC8K... - Page 12 SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED (Continued) IMPORTANT NOTICE: PROHIBITED INSTALLATION DO NOT install this window air conditioner inside a wall sleeve or through a wall. It is strictly forbidden and will void the warranty. The unit is designed for window mounting only, and any other installation may cause operational failure, airflow obstruction, water leakage, and electrical hazards.
-
Page 13: Storm Window Requirements
A. Screw the top mounting rail with 4 Type A screws windowsill. (3DANC10K/3DANC12K/3DANC14K) or 3 Type A Bottom screws (3DANC8K) from the outside of the case. Mounting Rail B. Apply the weather seals provided at the bottom, top, and sides of the window to seal the perimeter of the air conditioner. - Page 14 SAFETY & PRECAUTIONS INSTALLATION INSTRUCTIONS CONTINUED CONTINUED (Continued) INSTALL THE AIR CONDITIONER IN THE WINDOW A. Measure the width of the window opening and mark the center line on the inside windowsill. Place the unit in the window. Lower the window to hold unit in place. Center Line B.
-
Page 15: Troubleshooting Tips
This is normal for a short period in areas with little humidity; in base pan air and drain into base pan normal for a longer period in very humid areas. Please contact Denali Aire Customer Service at 888-433-6254 EP: Temperature Sensor Error for troubleshooting support. -
Page 16: Normal Operating Sounds
SAFETY & PRECAUTIONS TROUBLESHOOTING TIPS CONTINUED CONTINUED (Continued) NORMAL OPERATING SOUNDS • You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This is normal, unit is equipped with a slinger blade which scoops up the water from the drain pan and throws it onto the coils for better efficiency. - Page 17 TROUBLESHOOTING TIPS...
- Page 18 5401 Dansher Road Countryside, IL 60525 888-433-6254 support@denali-aire.com www.denali-aire.com Printed in China 1123_M074...
