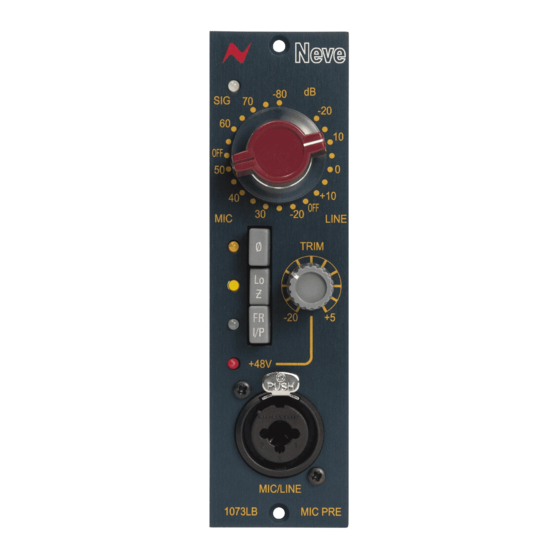

- Page 1 1073 LB Rack Module User Manual 527 - 399 Issue 1 The 1073 Rack Module is a compact version of the classic 1073 Mic Pre, designed for use in the Lunchbox™.
- Page 2 Automated Processes, Inc. © 2010 AMS Neve Ltd own the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.
- Page 3 1073LB Issue 1 Table of Contents Health & Safety Notice........................2 1073LB Lunchbox™ Module........................4 Introduction.............................4 Housing............................4 Installation............................4 Power..............................4 Front Panel Controls..........................5 Sig led............................5 Input Gain...........................5 Lo Z............................5 Ø..............................5 FR I/P............................5 48v led............................5 Line Input............................6 Trim............................6 Combo Connector.........................6 Lunchbox™ Rear Panel Connectors......................6 Dimensions............................7 Audio Specifications...........................7 - 3 -...
- Page 4 The first choice of countless leading producers & artists, the 1073 delivers the unique Neve sound featured on some of the most famous recordings of the past 40 years. The big, punchy sound of the 1073 classic, compliments any musical genre –...
- Page 5 1073LB Issue 1 Front Panel Controls Sig led A two-colour led gives an indication of the incoming signal level: • Lights green between -25dB and +26dB. • Lights red at +26dB or higher. Input Gain • Runs from -20dB to +10dB in 5dB steps for the Line input; •...
- Page 6 1073LB Issue 1 Line Input Electronically balanced input stage. Gain from this input is applied in the second class A gain stage and is output through the same class A transformer coupled output stage as the Mic input. Line input is selected by ensuring there is a Line Input jack connected to the combo connector on the front of the unit and FR I/P is selected.
- Page 7 1073LB Issue 1 Dimensions Height mm Width mm Depth cm Weight kg (inches) (inches) (inches) (lbs) (5¼) (1½) (5¾) (2½) Excludes clearance for front panel controls and rear connectors. Audio Specifications Switchable impedance (300 or 1200 ) Mic Input Gain -80dB to -20dB in 5dB steps Impedance 4k bridging Line Input...
