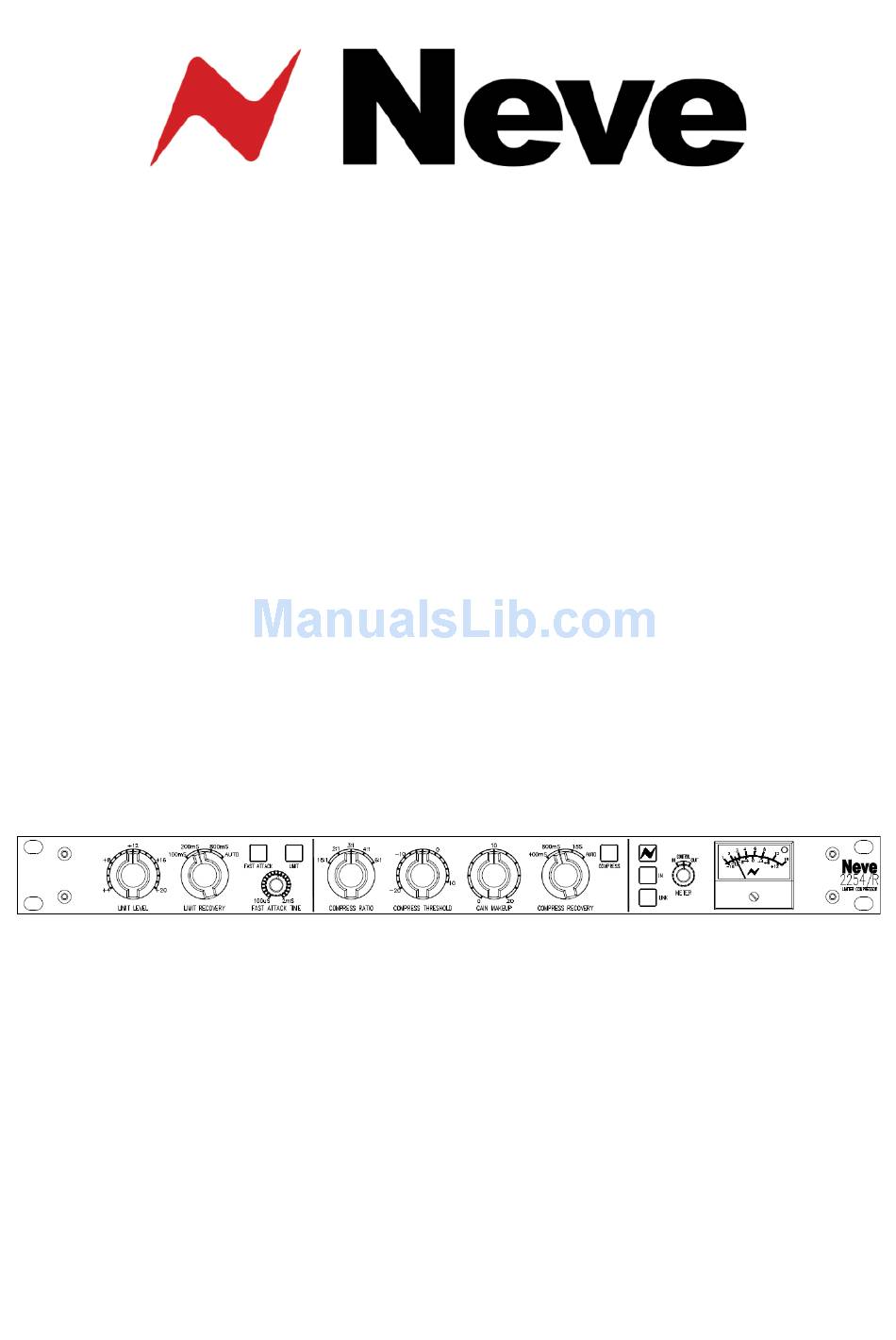

Page 1: User Manual
Limiter Compressor User Manual 527 - 386 Issue 2.3 The 2254/R Limiter Compressor has been designed specifically for the sound recording industry, for the control of programme dynamics. It is based on the classic 2254 series, originally released in 1969. -
Page 2: Health & Safety Notice
2254/R Limiter Compressor Issue 2.3 Health & Safety Notice For your own safety and for the protection of others, please observe the following safety precautions: • Read these instructions. • Heed all safety warnings. • Do not use near water. -
Page 3: Table Of Contents
2254/R Limiter Compressor Issue 2.3 Table of Contents Health & Safety Notice Introduction Principles of Operation....................4 Recall Software......................4 Front Panel Controls Power........................5 In.........................5 Link........................5 Limiter section......................6 Limit........................6 Limit Level......................6 Limit Recovery.......................6 Fast Attack......................6 Fast Attack Time....................6 Compress section.......................7 Compress......................7 Compress Ratio......................7 Compress Threshold....................7... -
Page 4: Introduction
A variety of time constants are available to suit the nature of the programme. Where two 2254/R units are used together to control the left and right signals of a stereo programme, the control voltages from the two sidechains may be linked to ensure that no shift in image takes place. -
Page 5: Front Panel Controls
Front Panel Controls Power The Neve logo switch to the left of the meter switches the unit on and off. The button will light red when the unit is on. Lights yellow when selected, and sends the signal through the units circuitry, even if the unit does not have the Limit or Compress functions selected. -
Page 6: Limiter Section
In this way, a narrow dynamic range may be achieved by feeding high levels into the 2254/R and choosing a low limit level. Fast Attack Time When FAST ATTACK is selected, the attack time can be set from 100 S to 2mS using the associated rotary control. -
Page 7: Compress Section
2254/R Limiter Compressor Issue 2.3 Compress section Compress Lights yellow when selected, and switches the Compressor sidechain in and out of circuit. Compress Ratio Five preset ratios are provided. • 1.5:1 • 2:1 • 3:1 • 4:1 • 6:1 The control characteristic is shaped such that the onset of compression is smooth and progressive, the true ratio being reached within the first 5 to 10dB above the Threshold. -
Page 8: Meter
2254/R Limiter Compressor Issue 2.3 Meter The programme meter is operated by a simple drive circuit with rapid attack and slow decay times, that correspond to the typical PPM characteristic. The green led to the right side of the meter will light at a threshold of about -10dBu. -
Page 9: Rear Panel
The default factory setting is 0dB in, 0dB out, with a load of 100k . Sidechain Link Links the sidechains of two or more 2254/R units so that they can all work with reference to the same sidechain. Unit 1... -
Page 10: Power Din Socket
The fuse should always be replaced with one of the same value. The USB socket is a Type B connector used to connect the 2254/R to a PC or Mac for storing & recalling unit settings. Technical Earth... -
Page 11: Recall Software
Issue 2.3 Recall Software Neve Recall software allows settings from the 2254/R to be stored on a PC or Mac and recalled for later use. The Recall software can also be used for all the units in the 88 Outboard range including 8801, 8803, 8804 &... - Page 12 2254/R Limiter Compressor Issue 2.3 The installation programme will select a default location for files to be copied and created to. Click Next, or click Browse and then select another location. You will be asked where shortcuts to the software should be placed.
-
Page 13: Installation For Mac
2254/R Limiter Compressor Issue 2.3 If you wish to launch the software at this point, tick the Launch Neve Recall box. Once the install has successfully completed, click Finish. The software will now be ready to use, and will be accessible from Start Menu / Programs / Neve Recall / Neve Recall, or from the Recall icon on the Desktop. -
Page 14: Firmware Upgrade
2254/R Limiter Compressor Issue 2.3 Firmware Upgrade In order to get the most from your Neve unit, the latest firmware should be installed. Upgrading your software is a simple process with on screens prompts to guide you. • Start the Recall software. -
Page 15: File Downloading
2254/R Limiter Compressor Issue 2.3 File Downloading Once the file is selected the transfer will begin, and the Recall screen will display that the download is under way. This process may take up to two minutes. Upon completion, the message Firmware Update Successful will be displayed. -
Page 16: Unit Specifications
Action approximates to that of PPM. © 2009 - 2010 AMS Neve Ltd own the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission.
