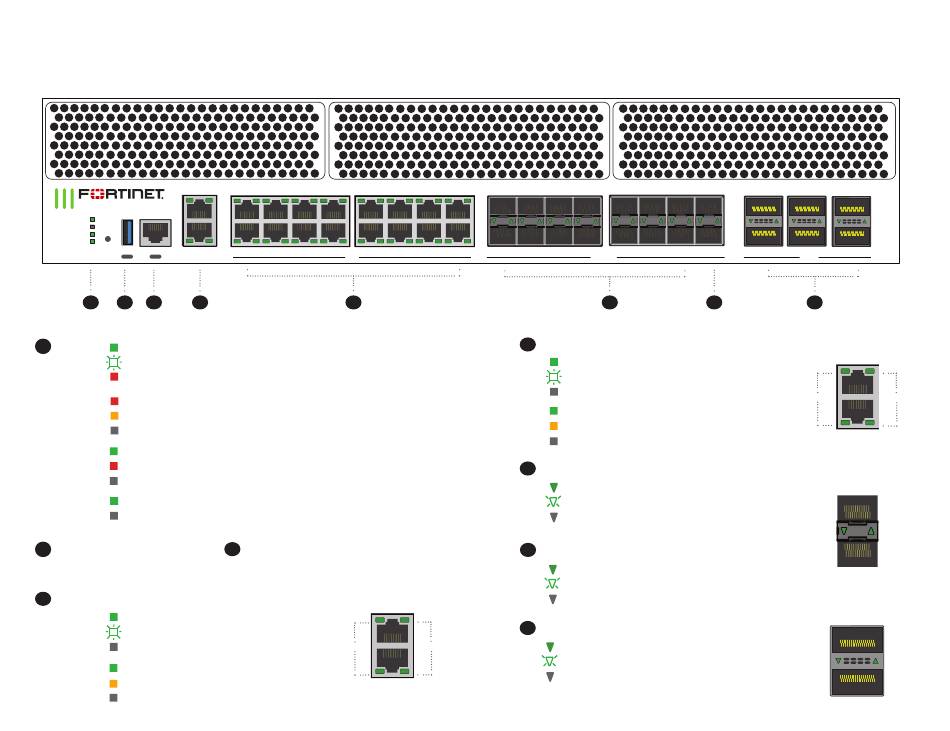

FG-3000F Series Front Panel
FortiGate 3000F
STATUS
ALARM
HA
POWER
USB CONSOLE
1 2 3
1
Green: Normal operation
STATUS
Flashing Green: Booting up
Red: Major Alarm
Red: Major alarm detected
ALARM
Amber: Minor alarm detected
Off: No errors detected
Green: Operating in an HA cluster
HA
Red: HA failure
Off: HA disabled
POWER Green: Device is on
Off: Device is off
2
USB (USB A)
USB 3.0 server port
4 MGMT 1 and MGMT 2 (RJ45) 10GE management ports
Green: On, Link up
Flashing Green: Data activity
LINK/ACT
Off: No link established
Green: Connected at 10 Gbps
SPEED
Amber: Connected at 5 Gbps/ 2.5 Gbps/ 1 Gbps
Off: Linked at 100 Mbps or no link established
10
MGMT1 1 3 5 7 9
MGMT2 2 4 6 8 10
10G
4 5
3
Console (RJ45)
CLI interface
FortiGate 3500F
STATUS
LINK/ACT
ALARM
HA
POWER
USB CONSOLE
11 13 15 17 19
12 14 16 18 20
5 Ports 1 to 16 (RJ45)
LINK/ACT
SPEED
6
Ports 17 to 30 (SFP+/SFP28)
7
Ports HA1 and HA2 (SFP+/SFP28)
MGMT Ports
MGMT1 HA1 1 3
8
Ports 31 to 36 (QSFP28)
SPEED
MGMT2 HA2 2 4
21 23 25 27 29 HA1
22 24 26 28 30 HA2
SFP+/SFP28
6 7
Green: On, Link up
Flashing Green: Data activity
FortiGate 3500F
Off: No link established
STATUS
ALARM
Green: Connected at 10 Gbps
HA
Amber: Connected at 5 Gbps/ 2.5 Gbps/ 1 Gbps POWER
Off: Linked at 100 Mbps or no link established
Green: Connected at 25 Gbps/ 10 Gbps/ 1 Gbps
Flashing Green: Data activity
Off: No link established
Green: Connected at 25 Gbps/ 10 Gbps/ 1 Gbps
Flashing Green: Data activity
Off: No link established
5 7 9 11 13
Green: Connected at 100 Gbps/ 40 Gbps
Flashing Green: Data activity
Off: No link established
6 8 10 12 14
SFP+/SFP28
31 33 35
32 34 36
QSFP28
8
RJ45 Ports
MGMT1 HA1
LINK/ACT SPEED
USB CONSOLE MGMT2 HA2
SFP+/SFP28 Ports
Bottom Port Top Port
15 17 19 21 23
QSFP28 Ports
Bottom Port Top Port
16 18 20 22 24
