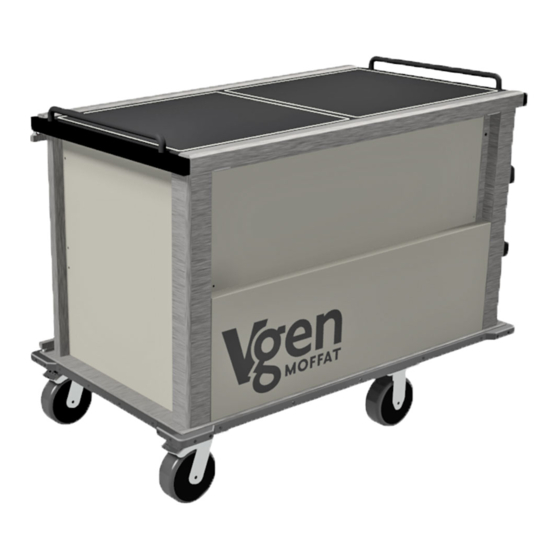

Models:
V2GGE13, V2GGE16,
V2GGENG, V2GGENG16
Operating & Service Manual
Manual 044 / Issue 001 / February 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vgen V2GGE13 and is the answer not in the manual?

Questions and answers

Summary of Contents for Moffat Vgen V2GGE13

  • Page 1 Models: V2GGE13, V2GGE16, V2GGENG, V2GGENG16 Operating & Service Manual Manual 044 / Issue 001 / February 2022...
  • Page 2 To ensure the best results from this unit please take the time to read and follow all safety, installation and maintenance guidelines carefully before proceeding to install. Keep this manual in a safe place for future consultation. These appliances are marked in compliance with the relevant Low Voltage &...
  • Page 3: Table Of Contents

    Contents Page Electrical Specification Installation Manoeuvring trolley Operation 6 / 7 Setting Time / setting Temperature Application 8 / 9 Cleaning Notes...
  • Page 4: Electrical Specification

    1: Electrical Specification This appliance must be earthed and damaged cables must be replaced by a suitably qualified person! 1 Phase Cable 3 Phase Cable Live (L1) Brown Brown Black Grey Neutral Blue Blue Earth Yellow & Green (Striped) Yellow & Green (Striped) A mains cable, type H07RN-F, conforming to code designation 60245 IEC 57, is supplied.
  • Page 5: Installation

    Carefully remove all packaging and plastic coatings from the appliance and dispose in a responsible manner. Check for damage. Please note that in compliance with E&R Moffat warrant conditions, any defects must be reported within 3 days of delivery. Ensure all shelves are in position.
  • Page 6: Operation

    4: Operation The oven must be connected to the correct power supply, with the correct rating for the appliance. This information should be found on the data badge on the oven. If in doubt, speak to a qualified electrician. Do not attempt connection to any other power supply which differs from the data badge.
  • Page 7 4: Operation • Top position: Hot Top, Heat Lamps and Oven Keep Hot. Three way switch • Middle position: Standby • Bottom position : Cook Left Hand Oven Countdown Time Display Left Hand Oven Time Control Knob Left Hand Oven Temperature Display Left Hand Oven Temperature Control Knob Right Hand Oven Countdown Time Display Right Hand Oven Time Control Knob...
  • Page 8: Application

    5: Application Cook Frozen Oven is normally pre-heated for approximately 20 minutes. Load the food, evenly spaced through the oven to give a good airflow throughout the oven. Set the temperature to 190°C. The timer is set to 80 minutes. The temperature and time required to cook the food all depend on the quantity and density of the food.
  • Page 9 5: Application Bake Off Application Oven is normally pre-heated for approximately 20 minutes. Load oven with pies, sausage rolls etc. Usually on an oven tray. Temperature is set at 200°C. Timer is set between 15-30 minutes. These settings may need to be varied as required by the food.
  • Page 10: Cleaning

    6: Cleaning Before attempting to clean the unit, please ensure that the Unit is isolated from the electric supply and allowed to cool down, with all food plates and other Dishes removed from the unit. Do not use a water jet or pressure spray to clean this appliance. Disconnect trolley from mains and wait until appliance has cooled.
  • Page 11: Notes

    7: Notes...
  • Page 12 Thank you for choosing E&R Moffat! E&R Moffat Ltd. www.ermoffat.co.uk Bonnybridge +44 (0) 1324 812272 FK4 2BS sales@ermoffat.co.uk Scotland...

This manual is also suitable for:

Vgen v2gge16Vgen v2ggengVgen v2ggeng16
