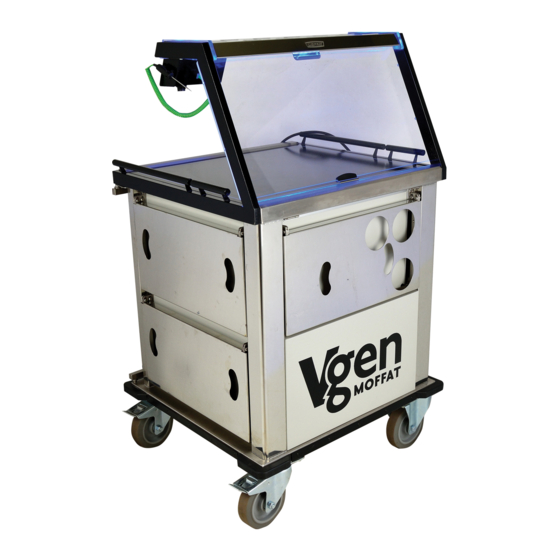

Issue 2 (4th October 2019)
Operating & Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vgen V1G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moffat Vgen V1G

Summary of Contents for Moffat Vgen V1G

  • Page 1 Issue 2 (4th October 2019) Operating & Service Manual...
  • Page 2 Issue 2 (4th October 2019) To ensure the best results from this unit please take the time to read and follow all safety, installation and maintenance guidelines carefully before proceeding to install. Keep this manual in a safe place for future consultation. These appliances are CE-marked in compliance with the relevant Low Voltage &...

  • Page 3: Table Of Contents

    Issue 2 (4th October 2019) Contents page Installation Manoeuvring Trolley Folding Tray-Slide & End Shelves Waste Bag Tow Hitch Initial Set-Up Setting & Locking Program Options Operating Lights Guide Operation Semi-Auto Mode (Pre-set on the Spot) Automatic Mode (7-Day Timer) Manual Operation Next Steps Food Probe...

  • Page 4: Installation

    Carefully remove all packaging and plastic coatings from the appliance and dispose in a responsible manner. Check for damage. Please note that in compliance with E&R Moffat warrant conditions, any defects must be reported within 3 days of delivery. Ensure all shelves are in position.
  • Page 5 Issue 2 (4th October 2019) Minimum Area Model Push (N) Maintain (N) Required to turn (m2) V1G & V1C All V2 Models For safety reasons during transport, place all the food inside the compartments. Ensure that the power cables are secure and that the tray rail and side shelves are down.

  • Page 6: Folding Trayslide & End Shelves

    Issue 2 (4th October 2019) Please note: Some accessories or options are factory fit only and may not be possible to retrofit. 2.1: Folding Trayslide & End Shelves Please ensure care is taken when operating the trayslide. Please lift/ lower using the cut out provided and take care not trap the mains cable.

  • Page 7: Waste Bag

    Issue 2 (4th October 2019) 2.2: Waste Bag 2.3: Tow Hitch • Do not tow outside or over rough or uneven surfaces, including expansion joints. • The towing attachment has been designed to be used in conjunction with a towing hitch. •...

  • Page 8: Initial Set-Up

    Issue 2 (4th October 2019) 3: Initial Set-Up This equipment is designed to be operated by suitably qualified persons. It is the responsibility of the Supervisor or equivalent to train users, provide suitable P.P.E., show the mains isolating switch location, and inform users that parts may become hot, causing injury if touched.

  • Page 9: Setting & Locking Program Options

    Issue 2 (4th October 2019) 3.1: Setting & Locking Program Options & 7-Day Timer Simply select and input the required temperature and time for each oven zone (for more information on oven zones see section 5.8). If you wish to program a 7-day timer, select the in-put boxes under HOUR/ MIN to set the exact time you want the cycle to begin each day.

  • Page 10: Operating Lights Guide

    Issue 2 (4th October 2019) 4: Operating Lights Guide Flashing red indicates oven doors are open. Keep doors closed when possible. Green indicates that the unit is in use. Meaning either a regeneration, pre-heat, boost or cleaning cycle is currently in process.

  • Page 11: Operation

    Issue 2 (4th October 2019) 5: Operation Select REGEN button from the HOME screen. Selecting PRE-HEAT, will pre-heat the oven for 30 minutes to prepare for regeneration cycle. This feature is for manual use only. At the end of the preheat cycle a buzzer will sound and the operating lights will flash green.

  • Page 12: Semi-Auto Mode (Pre-Set On The Spot)

    Issue 2 (4th October 2019) If you wish to activate auto mode (7-day timer), go to section 5.1. If you wish to begin a pre-set regeneration cycle, go to section 5.2. If you wish to manually operate the oven, go to section 5.3. 5.1: Semi-Auto Mode (Pre-set on the Spot) To begin one of the three previously set regeneration cycles immediately, simply...

  • Page 13: Manual Operation

    Issue 2 (4th October 2019) 5.3: Manual Operation As long as a pre-set program has not been selected, the user may be able to input new temperatures and run times manually by tapping on boxes right of current temperatures. It is possible to switch off any of the three oven zones by setting them to 0C.
  • Page 14 Issue 2 (4th October 2019) Now select STANDBY to switch unit off. Standby will not stop unit whilst the 7-day timer is active. It will stop however whilst using unit on sem-auto mode. Allow unit to cool before cleaning. For cleaning recommendations and cleaning cycle instructions, see section 6.

  • Page 15: Plate-Warmer (V2Gpr Model Only)

    Issue 2 (4th October 2019) 5.6: Using Platewarmer (V2GPR) Open door and pull the tray out gently, load plates as required starting from the rear & working forward. Once loaded, push the tray back in and close the door. Switch the plate warmer and the regen cycle on at the same time to allow the plates enough time to heat up.

  • Page 16: Using Chillogen Oven (V1C & V2Cr Only)

    Issue 2 (4th October 2019) 5.7: Using Chillogen Oven (V1C & V2CR) Select [Chill]. The “chill screen” will now be displayed on the touchscreen as shown. Select START to begin chill function within the main chamber. As long as the oven chamber temperature is below 45°C, the chill process will begin.

  • Page 17: Using Double Oven (V2Gg Only)

    Issue 2 (4th October 2019) 5.8: Using Double Oven (V2GG) When setting up regen programs in the Set-Up menu: Input required temps & times. Select left, right or both ovens. Select program number 1, 2 or 3. Wait 3 seconds then de-select program to save.

  • Page 18: Recommended Use Of Oven

    Issue 2 (4th October 2019) 5.9: Recommended Use of Oven Recommended that the top zone is used if reduced load is required. Avoid using lower shelves when possible. Shelf 1 Shelf 2 Shelf 3 Shelf 4 Shelf 5 Shelf 6 Shelf 7 Shelf 8...
  • Page 19 Issue 2 (4th October 2019) Chilled Food Frozen Food Suggested time 60-70 minutes. Suggested time 90-100 minutes. Suggested temperature Suggested temperature for Zone 1 (top) 140°C for Zone 1 (top) at 190°C High-density food High-density food Main course and Main course and startch products etc.

  • Page 20: Cleaning

    Issue 2 (4th October 2019) 6: Cleaning Do not use a water jet or pressure spray to clean this appliance. Ensure appliance is switched off & plugs are disconnected before cleaning. Disconnect trolley from mains and wait until appliance has cooled. Wipe clean using hot, soapy water and soft, non-abrasive cloth.
  • Page 21 Issue 2 (4th October 2019) At the end of cycle, gantry LED will blink green to indicate completion. The touchscreen will revert back to standby screen where the end of the cycle will be indicated. Simpy select STOP. Disconnect the trolley from the mains and wait until the oven has cooled down.
  • Page 22 Issue 2 (4th October 2019) Only factory approved parts should be used in the appliance. Failure to do so may affect the safety and performance of the product.

  • Page 23: Spare Parts List

    Issue 2 (4th October 2019) 7: Spare Parts List Part Number Description 2001B Caster 160mm Swivel 2003B Castor 160mm Fixed 3863 Circular Element 1.5kw 10392 Circular Element 0.9kw 2700 Circular Element 0.5kw 1741D Cord Set 4023 Cable Gland 4201 Glass Saddle 2905 Food Probe 4652...
  • Page 24 Issue 2 (4th October 2019) V1G: V2GG:...
  • Page 25 Issue 2 (4th October 2019) V2GR: V2GPR:...
  • Page 26 Issue 2 (4th October 2019) V1C: V2CR:...

  • Page 27: Electrical Specification

    Issue 2 (4th October 2019) 8.1: Electrical Specification THIS APPLIANCE MUST BE EARTHED! DAMAGED CABLES MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON! Rating (kW) Supply Voltage Amps per Phase 230V N~ L1 - 13A V2GG 230V N~ L1 - 32A V2GPR 230V N~ L1 - 13A...

  • Page 28: Electrical Diagrams

    Issue 2 (4th October 2019)
  • Page 29 Issue 2 (4th October 2019)
  • Page 30 Issue 2 (4th October 2019) Notes:...
  • Page 31 Issue 2 (4th October 2019)
  • Page 32 Issue 2 (4th October 2019) Thank you for choosing E&R Moffat! Scan the QR code below to visit the E&R Moffat website for further information: E&R Moffat Ltd. www.ermoffat.co.uk Bonnybridge +44 (0) 1324 812272 FK4 2BS sales@ermoffat.co.uk Scotland...

This manual is also suitable for:

Vgen v1cVgen v2ggVgen v2grVgen v2gprVgen v2cr
