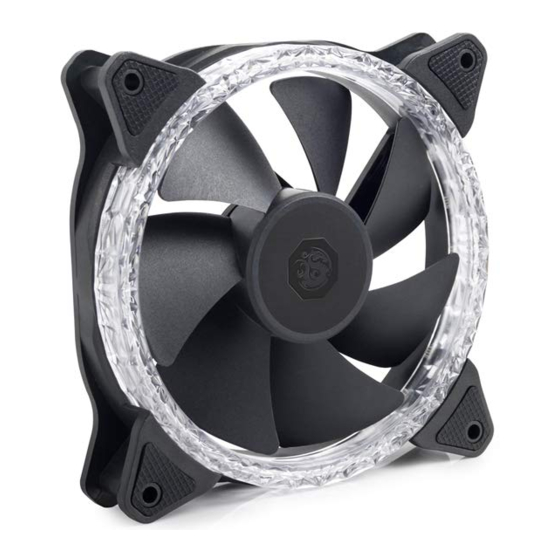

Bitspower Notos Xtal 120 Fan Digital RGB Instruction Manual

Bitspower Notos Xtal 120 Fan Digital RGB (3PCS)
Accessories
1
BPTA-NTX1218D1
2
M5X10 Screw (For Case)
3
BM4X30 Screw (For Radiator)
If the screw specification is different from
your case or radiator, please choose the
correct one.
A
A 5v
B
B D
C Gnd
C
Measurement
Rated Voltage
Operation Voltage
Staring Voltage
Rated Current
Power Consumption
Fan Speed
4
3 PC
Remote Control
12 PCS
12 PCS
A B C D
A:Negative electrode -
B:Negative electrode +
C: Speed message FG
D:Speed control PWM
Specification
120x120x25mm
Fan:DC 12V / LED:DC 5V
7V~13.2V
≤ 7V(ON / OFF)
Fan:0.10A~0.12A(Max.)
LED:1.0A~1.1A(Max.)
Fan:1.2W~1.5W(Max.)
LED:5.0W~5.5W(Max.)
800~1800RPM±10%
1 PC
Max Airflow
Air Pressure 1.7mm H
Noise Level
Life Time
Number of Blades
LED Light Bar
Power Connector
[ 1 ]
instruction manual
V4
A
A 5v
B
B D
C Gnd
C
41~44CFM(Max.)
O~2.0mm H O(Max.)
2 2
25dBA Max.:28dBA
30000 Hours
7 Leaves
24 pcs
PWM 4pin header /
DRGB 5V 3pin header
