Attaching your Nomad FP8

1. The FP8 has 2 screws that attach it to the body of your Nomad. And two screws that connect the
short post (supplied with your FP8) to the longer posts on your Nomad.
2. Remove the two screws on the top of Nomad's case that line up with the FP8 screws.
3. Remove the screws from the top of Nomad's posts while leaving the bottom screws attached.
4. Install two screws through the FP8 – the screw on the left side may need to be wiggled a bit to clear
the interconnect cable within the FP8. You should see the screws come through the bottom of the
FP8.
5. Snugly screw in the two screws without over tightening.
6. Install the two short posts that came with your FP8 and run the screws through the FP8 posts and
into the Nomad posts and tighten the screws.
7. Attach the interconnect cable serial port.
NOTE: The FP8 shares ground with Nomad and needs to be firmly attached to Nomad for the
FP8 to operate. If the FP8 does not power up check that there is a good ground connection
between it and Nomad.
WARNING
DO NOT REMOVE
THESE SCREWS

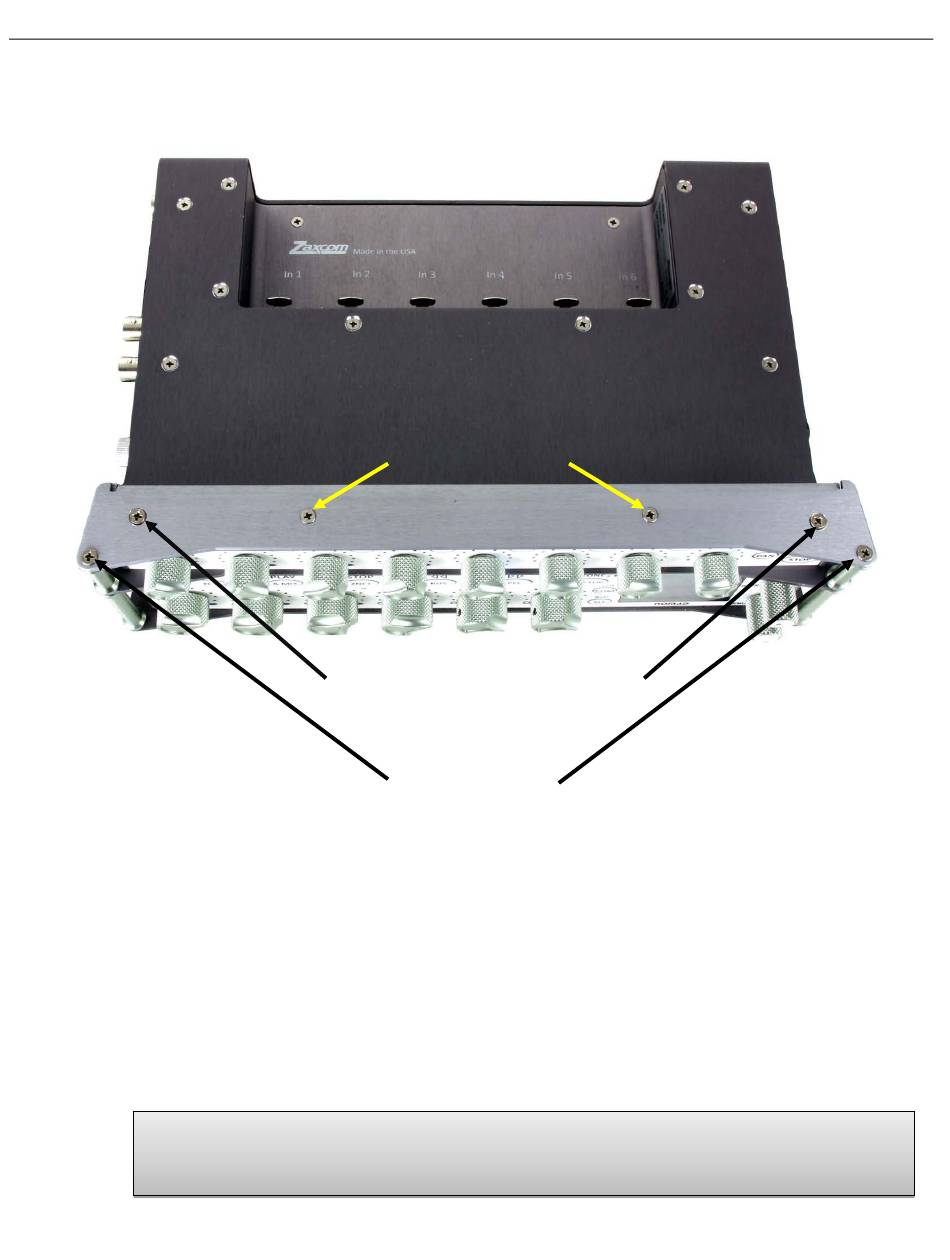

SCREWS THAT ATTACH THE
FP8 TO NOMAD
POST SCREWS
4
Attaching the FP8
