Direct vent

Advertisement

P/N 775,223M REV. C 03/2010
Portland
US
Ce manuel d'installation est disponible en francais, s implement en faire
la demande. Numéro de la pièce 775,223CF.
WARNING
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating
plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
WARNING: If the information in these instructions is
not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR: Laissez cette notice avec l'appareil.
CONSOMMATEUR: Conservez cette notice pour consul-
tation ultérieure.
OTL Report No. 050-S-21b-5
INSTALLATION AND OPERATION
Direct-Vent
EPIC™
MODELS
EPIC33/40

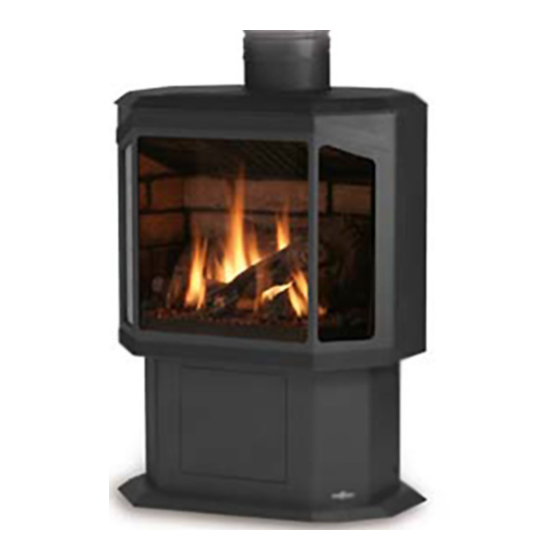

The Epic™ Gas Stove is factory equipped for 40,000 BTU input
and can be converted to 33,000 using the smaller orifice provided.
AVERTISSEMENT
UNE SURFACE VITRÉE CHAUDE PEUT
NE PERMETTEZ JAMAIS À UN ENFANT
DE TOUCHER LA SURFACE VITRÉE.
AVERTISSEMENT: Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire
au minimum le risque d'incindie ou d'explosion ou
pour éviter tout dommage matériel, toute blessure
ou la mort.
- Ne pas entreposer ni utilizer d'essence ni d'autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucan interrupteur. Ne pas vous servir
des téléphones se trouvant dans le bâtiment où vous
trouvez.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du fournis-
seur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.
- L'installation et l'entretien doivent être assurés par un
installateur ou un service d'entretien qualifié ou par
le fournisseur de gaz.
CAUSER DES BRÛLURES.
LAISSER REFROIDIR LA SURFACE
VITRÉE AVANT D'Y TOUCHER.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lennox Elite Series

  • Page 1 INSTALLATION AND OPERATION Direct-Vent EPIC™ P/N 775,223M REV. C 03/2010 MODELS Portland OTL Report No. 050-S-21b-5 EPIC33/40 The Epic™ Gas Stove is factory equipped for 40,000 BTU input Ce manuel d’installation est disponible en francais, s implement en faire and can be converted to 33,000 using the smaller orifice provided. la demande.
  • Page 2: Table Of Contents

    LP and Natural Gas Supplies ........18 your new gas stove. Attaching Safety In Operation Warnings ....... 19 Thank you for selecting a Lennox Hearth Products gas stove as Operating Instructions ..........20-23 the answer to your home heating needs.
  • Page 3: Safety And Warning Information

    IMPORTANT SAFETY AND WARNING AVERTISSEMENT INFORMATION On ne devrait pas placer de vêtements ni d’autres matières inflammables sur l’appareil ni à prox- WARNING imité. Young children should be carefully supervised when they are in the same room as the appliance. Tod- WARNING dlers, young children and others may be susceptible to accidental contact burns.
  • Page 4  T hese appliances are vented gas appliances. Do not burn wood  F OR YOUR SAFETY do not install or operate this appliance without or other material in these appliances. first reading and understanding this manual. Any installation or operation of the appliance deviating from that which is stated  T his appliance is only for use with the type of gas indicated on in this manual WILL void the warranty and may be hazardous.
  • Page 5: Orifice Size/Altitude Adjustment

    ORIFICE SIZE/ALTITUDE ADJUSTMENT tion in any community. If there are any questions or if you need further substantiation either write to or call your Lennox Hearth Products dealer. If you have further questions, please contact Lennox Hearth Products. For altitudes above 2,000 feet (In Canada 4,500 FT/1370 M),the orifice should be de-rated by 4% for every 1,000 feet to maintain the proper ratio Check all local building and safety codes before installation.
  • Page 6: Pre-Installation

    Manufactured (mobile) home a conversion kit. Only Lennox Hearth Products conversion kits can be Natural gas (NG) or propane (LP) used to convert from NG to LP or LP to NG. Contact your Lennox Hearth Bedrooms Products dealer for details.
  • Page 7: Preparing Your Epic Stove For Installation

    Test all gas connections for leaks with a gas leak test and may create a serious fire, health, or other safety hazard. solution. The Lennox Hearth Products warranty will be voided if one of the fol- lowing occurs: Top View •...
  • Page 8: Clearances To Combustibles

    Clearances to Combustibles Alcove dimensions Minimum clearances to combustible materials in inches (millimeters): The minimum width between the alcove side walls is 48” (1219mm). The minimum height of the alcove is 69” (753mm) and the maximum Parallel Installation depth is 48” (1219mm). Back Wall 24-1/2”...
  • Page 9: Firebox Setup

    Firebox Setup Burner Pan Diagram Log Stands Gas Ports Air Deflector Secondary Air Holes Figure 7 Completed Firebox Setup Figure 8 To ensure a proper burn leave a 1” space free of any embers or rockwool Do not cover any secondary air holes or gas ports (see Burner Pan directly in front of the air deflector (see Burner Pan Diagram above).
  • Page 10: Brick Panel Installation

    4. Using the included screws, install the brick retaining brackets (D) above Brick Panel Installation the left and right brick panels (B and C). CAUTION: The brick panels are required for your appliance to function correctly and safely. Packaging List: Rear brick panel (A), left brick panel (B), right brick panel (C), retaining brackets (D) - in flue restrictor bag 1.
  • Page 11: Log Set And Ember Installation

    Log Set and Ember Installation If logs are not installed according to the log installation instruc- tions, flame impingement and improper combustion could occur and result in soot and/or excessive production of carbon monoxide (CO), a colorless, odorless, toxic gas. The size and position of the log set is critical to achieve a safe, reliable and attractive flame pattern.
  • Page 12: Vent Installation

    • Installation of any vent component part not approved or Male manufactured by the approved vent manufacturer. Locking • Installation other than as instructed by Lennox Hearth Lugs Products and vent manufacturers instructions. Residential and Mobile Home Installations: Figure 22 These are the minimum pieces required.
  • Page 13: Vent Parts List

    Vent Parts List Horizontal Vent Installation Direct vent pipe Security™ Secure Vent™ * may be used with the Epic™ Venting terminals may not be recessed into a wall or siding. gas stove. Please see the lists below to verify the components available from each direct-vent pipe manufacturer.
  • Page 14: Vertical Vent Installation

    Vertical Vent Installation Important Notes Vertical Termination Cap Storm Collar 1. All vertically terminated vent installations use 6-5/8”x 4” Se- curity™ Secure Vent™ pipe*. Flashing Roof - Maintain 2. If the vent passes through a ceiling or floor, a firestop - Simpson 1”...
  • Page 15: Flue Restrictors

    Flue Restrictors have a proper burner flame appearance. If the proper flame appearance cannot be achieved, the flue restrictor may need to be changed to a dif- The flue restrictor settings shown in Figures 25 and 26 are for typical ferent position (A,B,C or D).
  • Page 16: Horizontal Terminations

    Horizontal Terminations Vertical Terminations The shaded areas in the diagram below show all allowable combinations The diagram below shows all allowable combinations of straight vertical of vent configurations with horizontal terminations. Horizontal sections and offset to vertical vent configurations with vertical terminations. The of pipe require 1/4”...
  • Page 17: Horizontal Vent Termination Locations

    Exterior Horizontal Vent Termination Clearance Requirements * See Item D in the Text Below. Center Line Exterior Wall Inside of Termination Corner Detail *18” Horizontal Termination 18” Ventilated Soffit Inside Corner = 9" in U.S. � = 12" in Canada DETAIL D 3 ft.
  • Page 18: Gas Line Installation

    This appliance can only be operated using propane gas (LP) if a certified fuel conversion kit provided by Lennox Hearth Products is installed by a qualified service technician. These appliances must be isolated from the gas supply piping system (by closing their individual manual shut-off valve) during any pressure Also check the orifice size on the label on the igniter bracket.
  • Page 19: Attaching Safety In Operation Warnings

    3. Si no puede encontrar las etiquetas, sírvase llamar Lennox Hearth Products or your nearest Lennox taire. En cas de doute, collez l’étiquette en anglais. a Lennox Hearth Products o al distribuidor de Hearth Products dealer to receive additional 3. Si vous ne trouvez pas les étiquettes, veuillez Lennox Hearth Products más cercano para recibir...
  • Page 20: Operating Instructions

    OPERATING INSTRUCTIONS Page 22. c All packaging materials have been removed from the fire- CAUTION: YOUR Lennox Hearth Products gas APPLIANCE MUST box. ALWAYS BE OPERATED WITH THE GLASS DOOR IN PLACE. c While stove is cool, fingerprints or other marks have been cleaned from any gold or nickel surfaces with denatured STOP!! Read the safety information above before proceeding.
  • Page 21: Flame Color And Behavior

    8. After pilot is lit, turn gas control counter-clockwise Control Panel “ON.” Knob can only be turned “ON” if the knob has popped out. GAS CONTROL Gas Control 9. To turn burner on, turn “ON/OFF” rocker switch to “ON” or FLAME HEIGHT ON/OFF Flame Height...
  • Page 22: Air Shutter Adjustment

    Pilot Flame Appearance Quiet Operation As the Epic gas stove is burning, a number of normal operational sounds may be heard. The flow of gas through the gas valve and orifice may make a rushing or whistling noise. If this noise is objectionable, it can be reduced by turning down the flame.
  • Page 23: Operating Options

    Operating Options Thermostat Wire Wire Size Maximum Length Your stove comes equipped with an “On/Off” rocker switch used to turn the burner on and off while the pilot light is on. The switch is a round 12 Gage 100 Feet rocker switch located behind the main control panel door.
  • Page 24: Maintenance And Servicing

    The viewing glass should be cleaned periodically (see Glass Door MAINTENANCE AND SERVICING Cleaning and Maintenance). Should repairs or maintenance of the stove require the disassem- WARNING bly of the vent/air intake system, the reassembly and resealing should be completed by a qualified service technician and follow the instructions on Page 12 of this manual.
  • Page 25: Glass Door Cleaning And Maintenance

    WARNING frame, gasket and glass) should be replaced as a unit. This replacement glass door is available from your Lennox Hearth Products dealer. Do not Do not operate appliance with the glass front use substitute parts or materials. The glass is neo-ceramic and alternative types must not be used.
  • Page 26: Fuel Conversion

    Fuel Conversion 10. Mark and unplug the remaining fan wire. Remove the three screws securing the fan and set aside. Converting the stove between natural gas (NG) and propane (LP) can be 11. Remove the cassette assembly by carefully pulling the top cassette accomplished by either changing the cassette (valve and pilot assembly) plate downward, guiding the pilot assembly out of the firebox, down or installing a conversion kit (regulator, burner orifice and repositioning...
  • Page 27: Troubleshooting

    TROUBLESHOOTING NOTE: When troubleshooting the gas control system, be sure the external gas shut off valve, located at the gas supply inlet is in the “ON” position. IMPORTANT: Call your gas supplier or plumber for additional help with any gas control problem. Valve system troubleshooting should only be accomplished by a qualified service technician.
  • Page 28: Wire Harness Diagram

    Wire Harness Diagram CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. ATTENTION: Au moment de l'entretien des commandes, étiquetez tous les fils avant de les débrancher. Des erreurs de cáblage peuvent entraîner un fonctionnement inadéquat et dangereux.
  • Page 29: Replacement Parts

    REPLACEMENT PARTS - Epic™ 33/40 (EPIC33/40) Contact an Authorized Lennox Hearth Products dealer Diagram No. Part No. Description to obtain any of these parts. Never use substitute ma- H3102 Front Door terials. Use of non-approved parts can result in poor...
  • Page 30 REPLACEMENT PARTS DIAGRAMS - Epic™ 33/40 (EPIC33/40) NO. DESCRIPTION NO. DESCRIPTION NO. DESCRIPTION FRONT DOOR 12 SIDE DOOR 23 SMALL RELIEF DOOR RIGHT BURNER SUPPORT 13 SIDE DOOR 24 SPRING, RELIEF DOOR LEFT BURNER SUPPORT 14 SNAP SWITCH 25 WASHER, RELIEF DOOR BURNER PAN / LOG SET 15 TOP HINGE BRACKET 26 BOLT, RELIEF DOOR...
  • Page 31 NO. DESCRIPTION NO. DESCRIPTION NO. DESCRIPTION 55 AC POWER PLUG 33 FLAME CONTROL EXTENSION 44 BLOWER 56 PEDESTAL BACK 34 PILOT CONTROL EXTENSION 45 SLIDER WASHER 57 THERMO. OUTLET BRACKET 35 VALVE ASSY. 46 CASSETTE PLATE 36 BLACK IRON PIPE 47 BULKHEAD SPACER 37 STREET ELBOW 48 FITTING BULKHEAD...
  • Page 32: Accessories

    ACCESSORIES Wall Remote Controls Thermostat Control Trim Kits Kits Include: Matching Trim for Glass (Upper and Lower) 70005 RT-AC Remote Thermostat AC (ref. form #775280M) (ref. form #775291M) H0251 RCL-STAT Remote Control, Deluxe Thermostat DC, (ref. form #750129M) H4635 DWTK Wall Thermostat, Digital Cat.
  • Page 33: Stove Labels

    MANUFACTURED BY: TESTÉ SELON LA NORME ANSI Z21.88-2005/CSA 2.33-2005 «FOYER RADIANT AU GAZ», UL307B, CSA P.4.1-02, ET CGA 2.17-M91. LENNOX HEARTH PRODUCTS CET APPAREIL DOIT ÊTRE INSTALLÉ CONFORMÉMENT AUX EXIGENCES DES CODES RÉGIONAUX ET DU CODE D’INSTALLATION PO BOX 987 Report No.
  • Page 34 été en contact avec l’eau. ALLUMAGE DANGER: VOTRE APPAREIL AU GAZ LENNOX DOIT ÊTRE OPÉRÉ AVEC DES PORTES DE VERRE. Poussez complètement le bouton de contrôle du gaz et le maintenir dans cette position. Appuyez immédiatement sur le bouton (allumeur Piézo-électrique) situé à gauche du robinet de contrôle du gaz.L’étincelle produite par ATTENTION! Lisez les consignes de sécurité...
  • Page 35 NOTES...
  • Page 36: Product Reference Information

    Fuel Type (Check one) c Natural Gas c Propane Gas (LP) Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.
