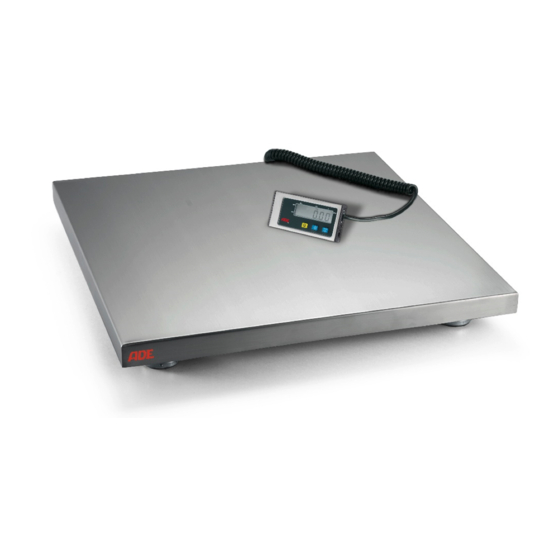

- Page 1 OPERATING MANUAL Platform Scale Series -EH Platform Scale – Series EHR + EHQ (EHR_EHQ-210517-Rev009-UM-en)
-
Page 2: Table Of Contents
Directory Safety instructions ........................... 2 Check carton contents ..........................3 Installation and Commissioning of the scale ................... 3 Fitting of the indicator with bracket ................... 3 Housing and ports ....................... 4 Mains or battery operation of the scale ................4 Battery case at the backside of the housing .............. -
Page 3: Safety Instructions
Keep the instructions for use for future reference. Your ADE scale is a high-quality product. In order to achieve precise results please kindly read and follow the Operation Manual in all respects. -
Page 4: Check Carton Contents
Screw Set Installation and Commissioning of the scale Fitting of the indicator with bracket ADE-EH display is qualified for horizontally or vertically wall mounting. (Placed vertically) (Placed horizontally) To change from the horizontal to the vertical bracket, loosen the screws of the spacer and indicator bracket and screw the spacers back on turned by 180°. -
Page 5: Housing And Ports
Housing and ports Connect the Platform to the Indicator. Mains supply (1) as well as the serial port (2) is located at the right side of the ADE-EH housing. Load cell connection is located at the bottom side of the housing. -
Page 6: Battery Case At The Backside Of The Housing
Battery case at the backside of the housing To open the battery case shift the lever towards „OPEN“, to lock shift towards „Close“. 4 x AAA 1,5V Alkaline Batteries. Connecting additional equipment Connection of additional equipments such as PC, printer, etc. is possible via integrated serial RS232-port. -
Page 7: Display- And Operational Controls
Display- and operational controls Operational controls Unit key To switch between the units of weight (kg, lb, oz) Tare key To tare desired weight value ON / OFF / 0 - key: To power on/off as well as to set zero the scale Display symbols Zero ◄... -
Page 8: Summary Key Definition
Summary key definition MODE DEFINITION Normal weighing mode Choose weight unit Setup modus / Change the digit if flashing and click this Calibration mode button to add 1 (1*) Displaying A/D code or Choose to show either inner code or input (Unit) input voltage mode working voltage of indicator mode... -
Page 9: Practise Of The Scale
Practise of the scale Positioning of the scale When using a mobile scale the following aspects are to mind: Place the scale on a solid and level surface. Adjust the scale in the way that all feet are contact plated. ... -
Page 10: Counting Function
Counting function There are two options to come into counting mode. Counting mode can be enabled in order of step 1 – 3 – 4 – 5 (reference quantity will be load before activating counting function) or in order of step 2 – 3 – 4 – 5 (reference quantity will be load after activating counting function) as described in the following. -
Page 11: Automatic Switch-Off
Automatic Switch-off For energy saving the scale can be set for automatic switch-off. Automatic switch-off can be preselected after 1 up to 15 minutes or disabled. When scale is on, press both button ON/OFF/ „U“ same time as long as SETUP appears in display. -
Page 12: Presetting Parameter
Presetting parameter Paramete Code Presetting P1.xx 00-15 00: no auto-off 01-15: minutes auto-off time P2.xx 0/1/2/ 0: no hold function 3-50 1: hold larger weight reading 2: auto release hold function when weight is below 10d and auto-hold new stable weight (more than 10d) (nur EHR4) 3…50: unchangeable reading when the variety is within +/- 3d-50d... -
Page 13: Cleaning And Maintenance
P12.x 0/1/2/3/ Zero range for ZERO button 4/5/6/7/ (Modifications in setting only by authorized personsl!) Power-on zero-point 0: +/-1%FS, 1: +/-2%FS, 2: +/-3%FS, 3: +/-4%FS, 4: +/-5%FS, 5: +/-10%FS, 6: +/-20%FS, 7: +/-50%FS, 8: +/-100%FS, 9: no limitation P13.x 0/1/2 Weight signal within power-on zero point range, change which data as current power-on zero point (Modifications in setting only by authorized personsl!) -
Page 14: Faults And Messages
Faults and Messages Message Description Zero point is over adjusted range Zero is under adjusted range 3. Ad ADC is over max. range 4. Ad ADC is under min. range Weight indication is too high Weight indication is too low No access to EEPROM Parameters are not identical with backup data Parameter/s is/are not within the normal range... -
Page 15: Warranty
Warranty ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts e.g. cables, mains units, rechargeable batteries, etc. been excluded. This warranty does not include outer natural wear, damages caused by incorrect or negligent handling, overuse or unsuitable or improper storage. -
Page 16: Technical Data
Technical Data Power Wall Wart: Line Voltage 100 to 240 VAC Frequency 50 or 60 Hz Main Circuit: Input Voltage 9.0 VDC Max. Current (wall wart) 600 mA Batteries: Type: Alkaline AAA / 1,5V Quantity: Serial Communication PC / Printer port full duplex RS-232 or only output mode 1200, 2400, 4800, 9600, or 19200 baud Data formats... -
Page 17: Declaration Of Conformity
RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, May 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH... - Page 18 EHR_EHQ-210517-Rev009-UM-en...
- Page 19 EHR_EHQ-210517-Rev009-UM-en...
- Page 20 Retailer: EHR_EHQ-210517-Rev009-UM-en...
