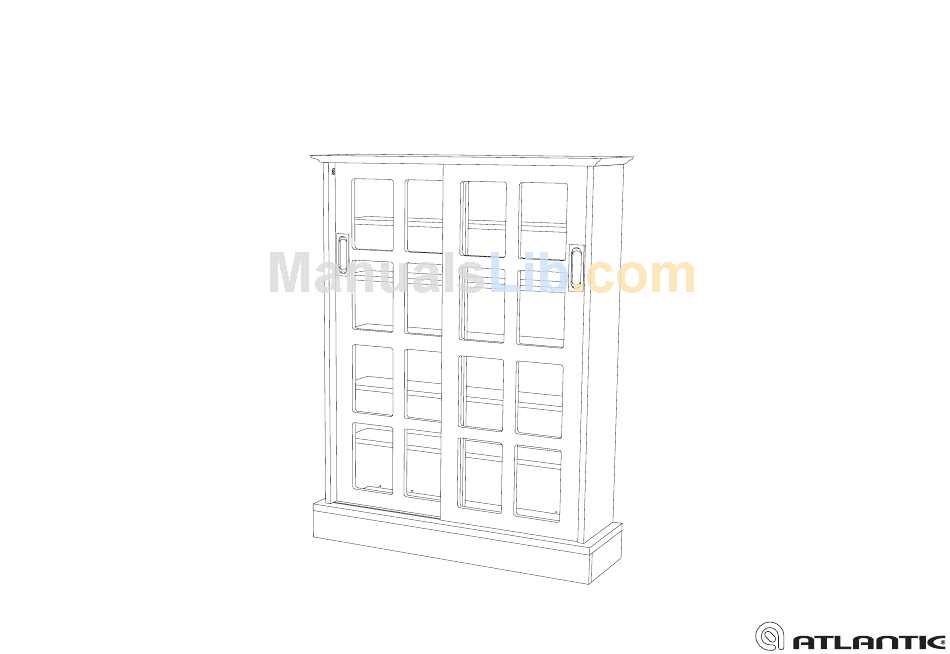

- Page 1 Windowpanes 432 CD Item # 94835430...
-
Page 2: Parts List
U.S. und andere ausländische Patente sind hängig All rights reserved / Derechos Reservados / Tous droits réservés / Alle Rechte vorbehalten Made in China / Hecho en China / Fabriqué en Chine / Hergestellt in China www.atlantic-inc.com R1.0 070131 #94835430... - Page 3 Insert wood dowels (K) and CAM screws (J) into panel (A). Fasten door handle (O) to front of doors (D & E) with screws (P). - 2 -...
- Page 4 Slide doors into base. Metal slider plates should fit into grooves in base. - 3 - Attach top panel (A) to unit. Metal slider plate should fit into grooves in top panel. Note: Make sure CAM screws are tightened all the way down.
- Page 5 Insert CAM locks (I) into panels (F & G). Turn CAM locks (I) to secure. - 4 - Insert pins (L) at desired heights.
- Page 6 Place shelves (B) on pins (L). Attach backboard (H) with screws (N) on one side first Apply pressure to side (F) to screw in backboard (See 9A) - 5 -...
- Page 7 Attach the top, bottom and other side screws (N) Apply pressure to side (G) to screw in backboard (fig 10B) - 6 -...
- Page 8 U.S. und andere ausländische Patente sind hängig All rights reserved / Derechos Reservados / Tous droits réservés / Alle Rechte vorbehalten Made in China / Hecho en China / Fabriqué en Chine / Hergestellt in China www.atlantic-inc.com R1.0 070131 #94835430...
