Connecting and Wiring Diagrams
Version 3: with component: Start-up cable S-RJ45/PCEX-1-Setup-Kabel
(distance: max. 2,5 m)
PC
RJ 45
Switch
Router ...
Warning!
Start-up cable S-RJ45/PCEX-1-Setup-Kabel
Don't use in the hazardous area!
* also possible: for line coding, use "black" Instead of "white".
** For direct connection to a host or PC, the pairs of wires (white-orange / orange) and
(white-green / green) must be interchanged.
6.1.2

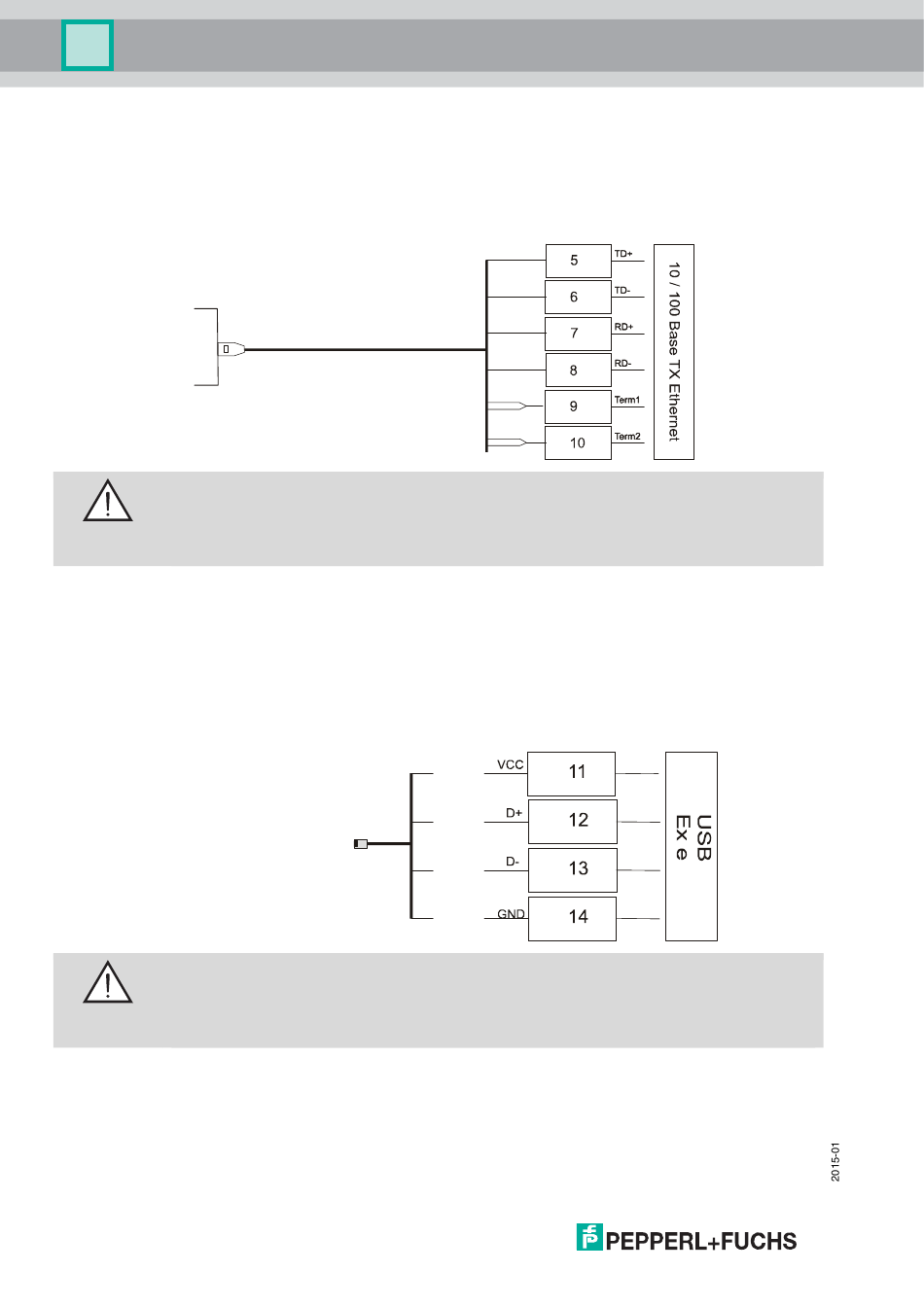

Wiring Diagram of the Setup Cable to the USB Interface (Ex e)

Set up cable (150 mm)
S-USB/410-1
(cable is included in the scope of supply)
Warning!
Start-up cable S-RJ45/PCEX-1-Setup-Kabel
Don't use in the hazardous area!
10
safe area
Start-up cable
S-RJ45/PCEX-1-Setup-Kabel
**Terminal compartment
for connection to hub,
switch, repeater or router
5 rot
6 grün
USB
7 weiß
8
schwarz
terminal compartment X1 Ex e
white-orange *
orange
white-green *
green
blue/white-blue *
brown/white-brown *
Terminal compartment X1
