Inserting The Containers For Oil And Uv Additive - Dometic GROUP WAECO VAS 581 001 Operating Manual

VAS 581 001
7.8

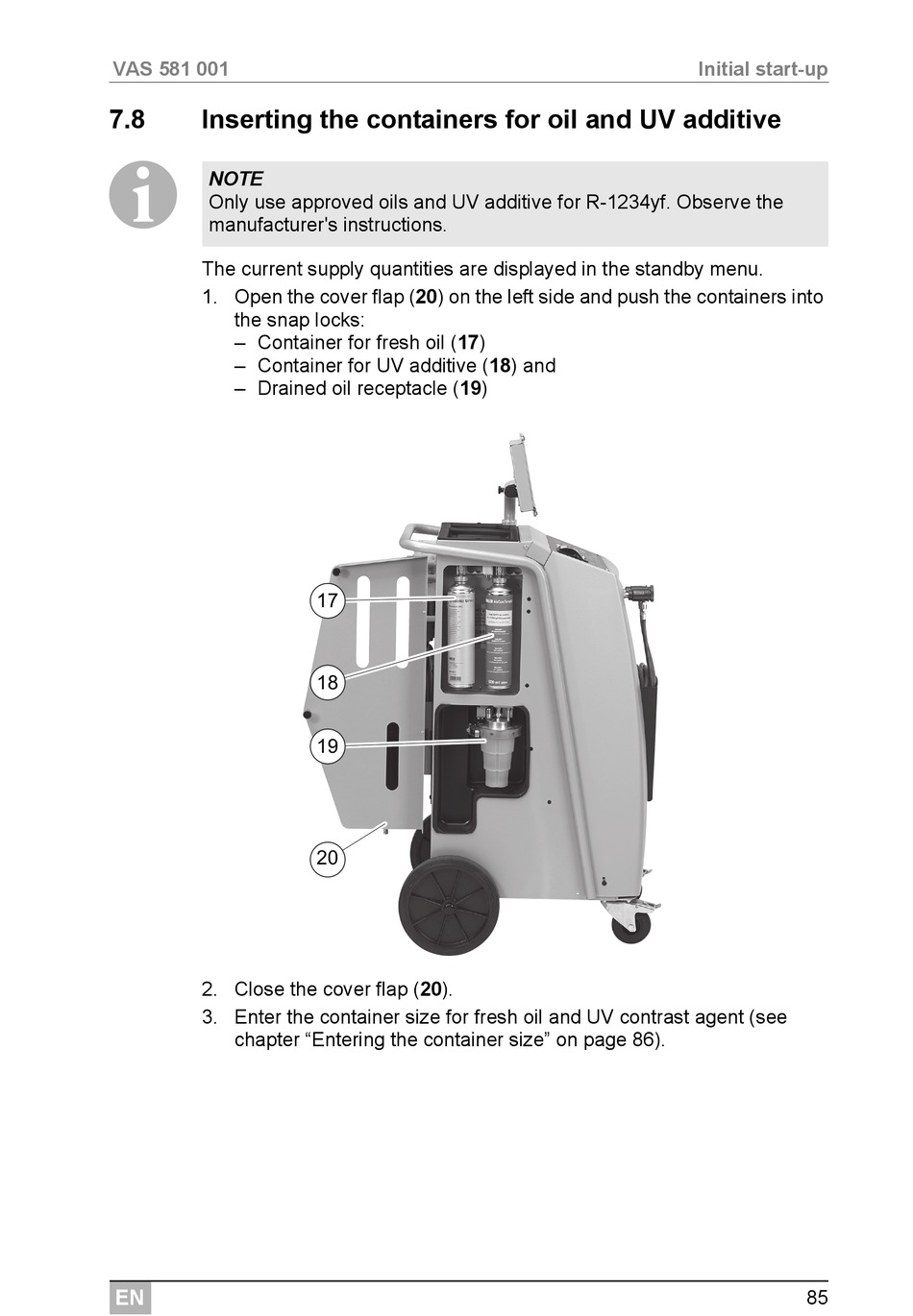

Inserting the containers for oil and UV additive

I
NOTE
Only use approved oils and UV additive for R-1234yf. Observe the
manufacturer's instructions.
The current supply quantities are displayed in the standby menu.
1. Open the cover flap (20) on the left side and push the containers into
the snap locks:
– Container for fresh oil (17)
– Container for UV additive (18) and
– Drained oil receptacle (19)
2. Close the cover flap (20).
3. Enter the container size for fresh oil and UV contrast agent (see
chapter "Entering the container size" on page 86).
EN
17
18
19
20
Initial start-up
85
